Dixon A235020 19 mm White Rubber Steam Hose Fabric Reinforced
Available

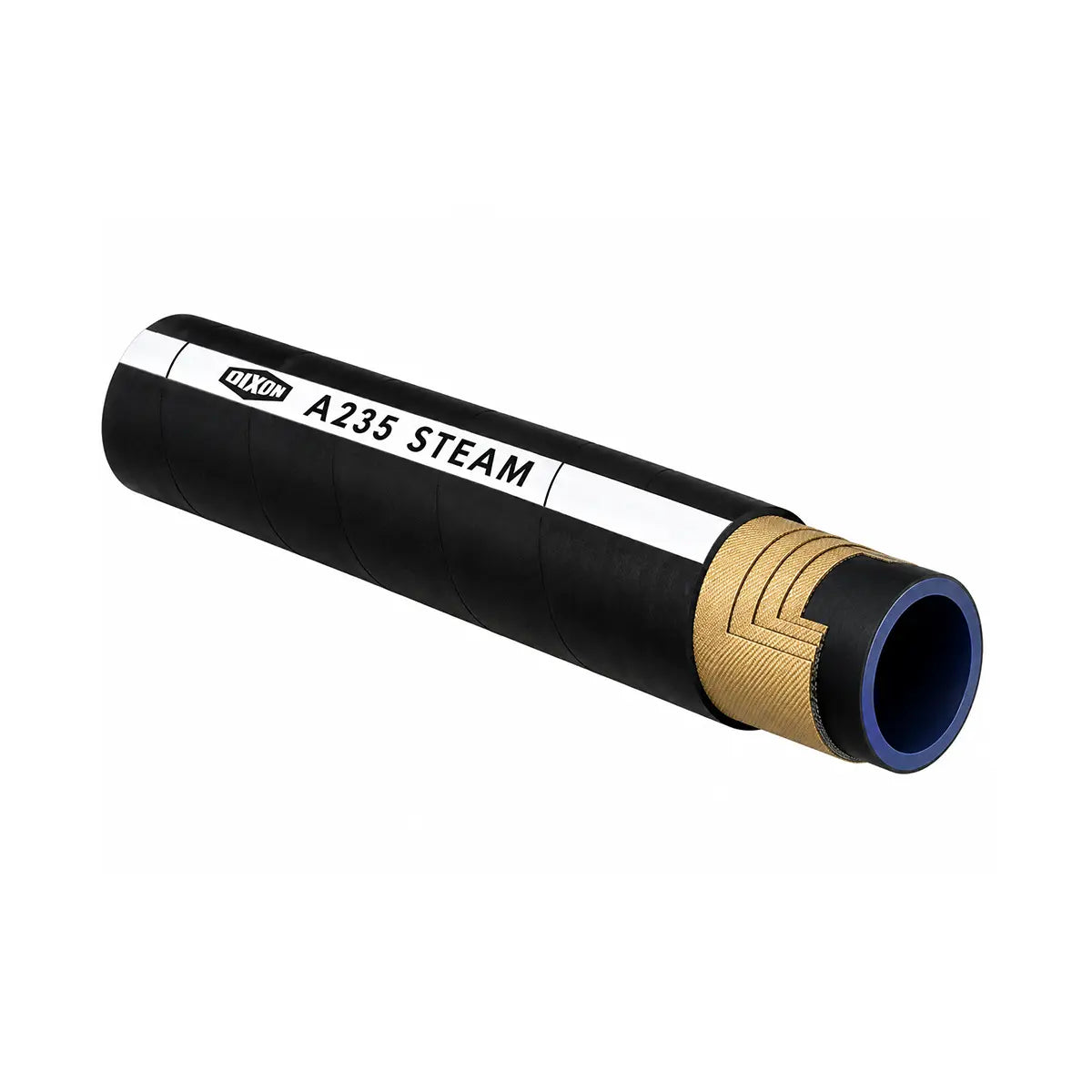

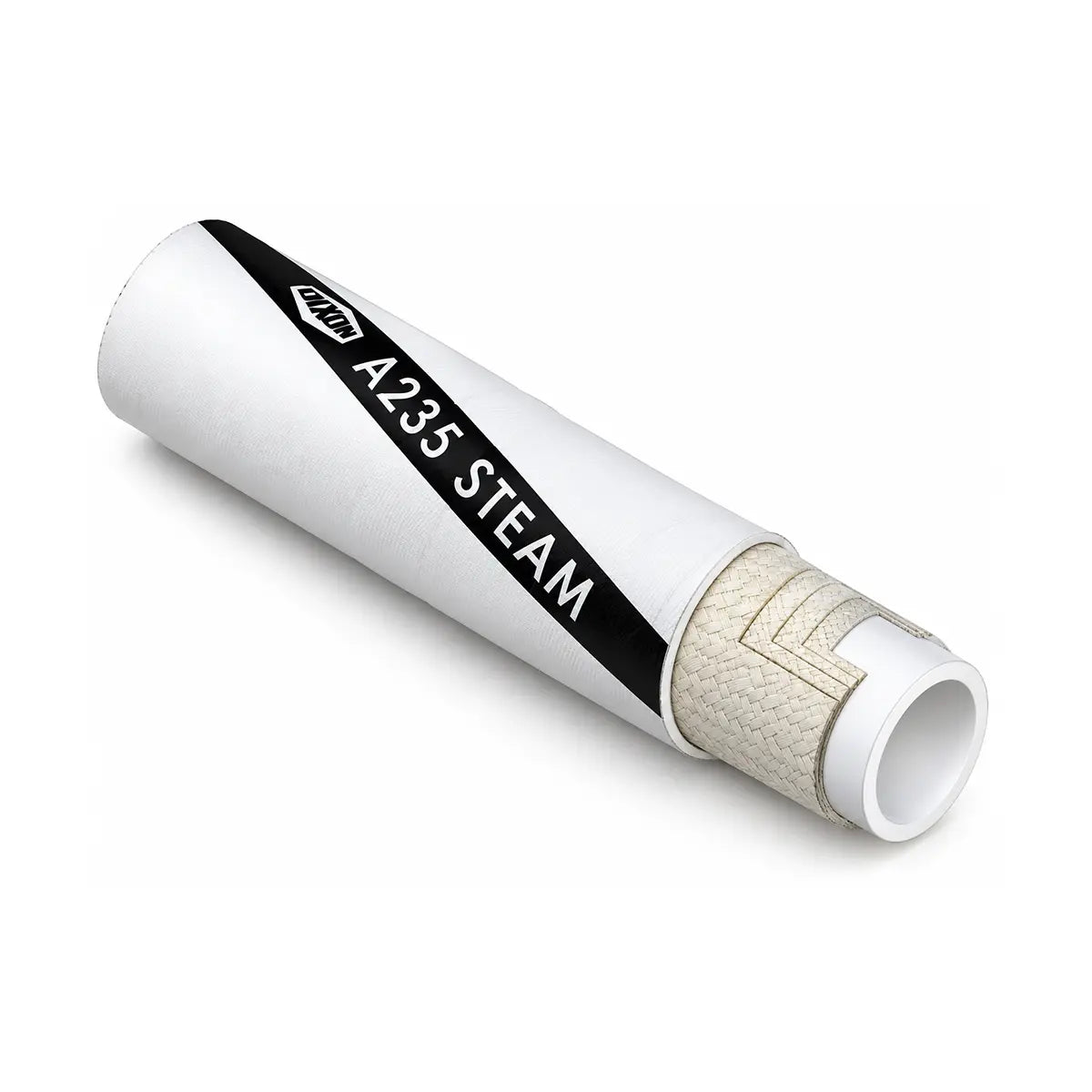

This Dixon rubber hose is a textile-reinforced, mandrel-built hose for saturated steam and hot water washdown. It has a smooth EPDM tube and cover in black or white, with high strength synthetic cord reinforcement, and the cover is described as fatty food and weathering resistant (manufacturer-stated). The store lists black hose in 12, 19 and 38 mm and white hose in 19 and 25 mm.
Dixon's Hygiene catalogue rates the range at 87 PSI for steam, 150 PSI for hot water washdown and 870 PSI burst, with a steam range of -30 to 160 degrees C and a hot wash range of -35 to 95 degrees C (manufacturer-stated). It lists coil lengths of 20 m and 60 m with a minimum cut length of 10 m.
Where this product is used
- Low-pressure saturated steam lines (manufacturer-stated).
- Hot water washdown where a lightweight textile-reinforced hose is preferred to a steel-reinforced one (manufacturer-stated).
- Hot water washdown lines where a white cover is wanted.
Features
- Tube and cover: smooth EPDM, black or white; high strength synthetic cord reinforcement (manufacturer-stated)
- Steam working pressure 87 PSI; hot water working pressure 150 PSI; burst 870 PSI (manufacturer-stated)
- Steam -30 to 160 degrees C; hot wash -35 to 95 degrees C (manufacturer-stated)
- Black and white versions; mandrel built, ozone resistant (manufacturer-stated)
- Coils of 20 m and 60 m, minimum cut length 10 m (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | Smooth EPDM, black or white |
| Cover | Smooth EPDM (wrapped finish), black or white |
| Reinforcement | High strength synthetic cord |
| Steam working pressure | 87 PSI |
| Hot water working pressure | 150 PSI |
| Burst pressure | 870 PSI |
| Steam temperature | -30 to 160 degrees C |
| Hot wash temperature | -35 to 95 degrees C |
| Coil lengths | 20 m and 60 m (Dixon Hygiene catalogue) |
| Sizes on this page | 12, 19, 25, 38 mm |
Key specifications
| Dixon part number | Size | Colour | Catalogue ID (mm) | Catalogue OD (mm) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|
| A235012B | 12 mm | Black | 12 | 24 | 156 | 0.4 |
| A235020B | 19 mm | Black | 19 | 31 | 228 | 0.58 |
| A235040B | 38 mm | Black | 38 | 53 | 456 | 1.54 |
| A235020 | 19 mm | White | 19 | 31 | 228 | 0.58 |
| A235025 | 25 mm | White | 25 | 37 | 300 | 0.72 |
Figures are from the A235 table in Dixon's Hygiene Products catalogue, which is the only Dixon document that lists A235. Dixon marks the bend radius figures as calculated (theoretical).
Selecting the right option
Pressurised steam is dangerous: use only hose, fittings and clamps rated for steam service at the pressure and temperature you run, and follow the manufacturer's instructions. At 87 PSI this is a low-pressure steam hose, so for higher pressures use the steel wire reinforced A230 hose in Related products. Choose white or black to suit your site, as the construction is the same.
Related products
Related Dixon hose: Dixon Rubber Steam Hose Steel Wire Reinforced, Dixon Rubber Hot Water Washdown Hose and Dixon 25mm x 10m Rubber Hot Water Washdown Hose White - A225025.
