Dixon A181050020 50.8 mm x 20 m Rubber High Temperature 135°C Steel Bull Braid Hose
Out of stock

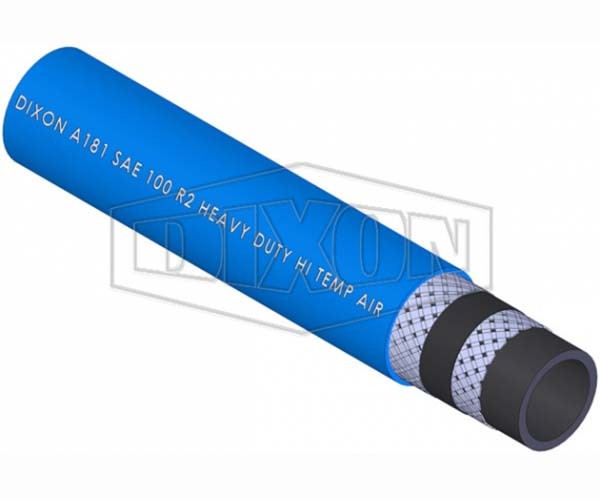

This Dixon steel braid hose is made for high-temperature, high-pressure compressed air in mines, quarries, construction and industrial sites, and Dixon says it is designed with high safety margins (manufacturer-stated). It has a synthetic rubber tube, a blue synthetic rubber cover and two high tensile steel wire braids, and Dixon lists it to SAE 100 R2 / DIN-EN 853 2SN and ISO 1307 (manufacturer-stated).
Dixon rates the 50.8 mm size at 1130 PSI (78 bar) and the 63.5 mm size at 1000 PSI (69 bar) working pressure, for temperatures from -50 to 135 degrees C (manufacturer-stated). The hose is weather, abrasion and high temperature hydraulic oil resistant (manufacturer-stated). The store lists the 50.8 and 63.5 mm sizes as 20 m coils.
Where this product is used
- High-temperature, high-pressure compressed air in mines, quarries, construction and industrial sites (manufacturer-stated).
- Compressed air lines in demanding conditions where a steel braid hose with high safety margins is wanted (manufacturer-stated).
Features
- Tube: synthetic rubber; cover: synthetic rubber, blue; 2 high tensile steel wire braids (manufacturer-stated)
- Working pressure 1130 PSI (78 bar) at 50.8 mm, 1000 PSI (69 bar) at 63.5 mm (manufacturer-stated)
- Temperature range -50 to 135 degrees C (manufacturer-stated)
- Dixon lists SAE 100 R2 / DIN-EN 853 2SN and ISO 1307 (manufacturer-stated)
- Weather, abrasion and high temperature hydraulic oil resistant (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | Synthetic rubber |
| Cover | Synthetic rubber, blue |
| Reinforcement | 2 high tensile steel wire braids |
| Standards | SAE 100 R2 / DIN-EN 853 2SN, ISO 1307 (manufacturer-stated) |
| Working pressure | 1130 PSI (78 bar) at 50.8 mm; 1000 PSI (69 bar) at 63.5 mm |
| Burst pressure | 6090 PSI (420 bar) at 50.8 mm; 4350 PSI (300 bar) at 63.5 mm |
| Temperature | -50 to 135 degrees C |
| Sizes on this page | 50.8 mm, 63.5 mm (20 m coils) |
Key specifications
| Dixon part number | Size | Length | Catalogue OD (mm) | Reinforcement OD (mm) | Working pressure | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|---|---|
| A181050020 | 50.8 mm | 20 m coil | 66.7 | 63.5 | 1130 PSI (78 bar) | 630 | 3.07 |
| A181065020 | 63.5 mm | 20 m coil | 79.8 | 75.8 | 1000 PSI (69 bar) | 760 | 3.98 |
Figures are from the A181 table in Dixon's Industrial Hose catalogue, which lists the part numbers ending 020 as the 20 m coil. The reinforcement outer diameter (ROD) is the diameter over the wire reinforcement, which Dixon gives to help work out the crimping diameter for fittings.
Selecting the right option
Match the working pressure to your air system at the highest operating temperature, not only at ambient, and use fittings made for 2 wire braid hose of the same bore. Use the ROD figure in the table when choosing crimp fittings and the crimp diameter. The 76.2 mm size (A181080) is in the catalogue but not in the store.
Related products
Related Dixon hose: Dixon Rubber Steel Heavy Duty Air Hose, Dixon Rubber Super Heavy Duty Air & Water Delivery Hose and Dixon Rubber FRAS Air & Water Delivery Hose.
