Dixon Steel cord air hose, 25.4mm x 20 m

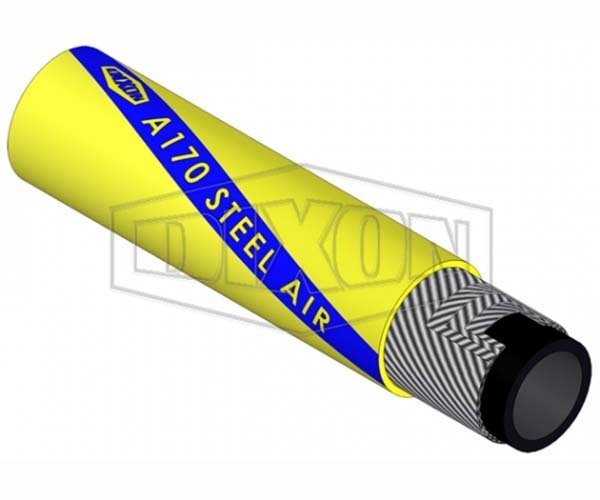

This Dixon hose is a steel cord rubber hose for high-pressure compressed air. It has a black NBR blend tube, a smooth yellow EPDM blend cover with a pin-pricked finish and high tensile steel wire cord reinforcement, and it is mandrel built. It comes in the 25.4 and 63.5mm sizes in 20 m coils.

Every size is rated at 580 PSI (40 bar) working pressure and 2320 PSI (160 bar) burst for temperatures from -40 to 70°C. The cover carries a Mylar layline and embossed tape line.

Where this product is used

• High-pressure compressed air in mines, quarries, construction and industrial sites
• Compressed air lines in demanding conditions where a steel cord hose with high safety margins is wanted

Features

• Tube: NBR blend, black, cover: EPDM blend, smooth, yellow, pin pricked
• Reinforcement: high tensile steel wire cords, mandrel built
• Working pressure 580 PSI (40 bar), burst 2320 PSI (160 bar)
• Temperature range -40 to 70°C
• Ozone, weather, oil mist and abrasion resistant

Key specifications

Choosing the right option

Match the hose to the highest pressure in the air system, not only the compressor setting, and choose fittings rated for the same pressure. The reinforcement is steel cord, so use crimp fittings made for steel cord hose and follow the manufacturer's assembly instructions. The cover is pin pricked so trapped gas can escape; do not seal it.
