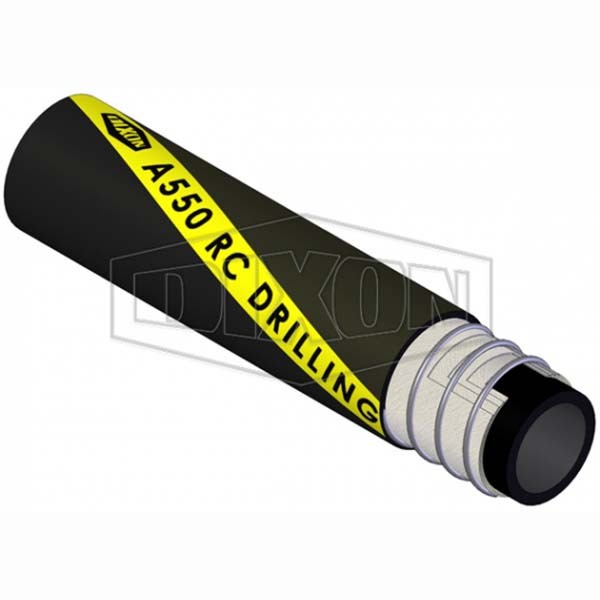

Dixon Reverse cycle sampling hose, 63.5mm x 20 m

This Dixon rubber hose is made for reverse circulation drilling equipment used for mineral recovery in sampling operations, where it handles highly abrasive material at high pressure and elevated temperature. It has a smooth black NBR tube, a smooth black SBR/NR blend cover with a yellow stripe and four plies of synthetic cord with a wire helix, and it has a Mylar layline and embossed tape line. All sizes are rated at 500 PSI (35 bar) working pressure and 0.9 bar vacuum, for temperatures from -40 to 100°C with intermittent peaks of 120°C.

It comes in the 63.5 and 102mm sizes as 20 m coils.

Where this product is used

• Sampling operations on reverse circulation drilling equipment for mineral recovery
• Handling highly abrasive material at high pressure and elevated temperature

Features

• Tube: smooth NBR, black, cover: SBR/NR blend, black with yellow stripe
• Reinforcement: 4 ply synthetic cord with wire helix
• Working pressure 500 PSI (35 bar), vacuum 0.9 bar
• Temperature range -40 to 100°C, peaks to 120°C
• Abrasion resistance under 50 mm3 (ISO 4649/A)

Key specifications

Choosing the right option

Match the bore to your drill rod and sample splitter, and check the hose bend radius against how the line runs from the rig. Use fittings and clamps made for heavy wire-helix hose of the same bore and rated for the 500 PSI working pressure.
