Dixon 08/048/16/003 4" (100 mm) Shouldered End 10° Setting Piece Galvanised Mild Steel

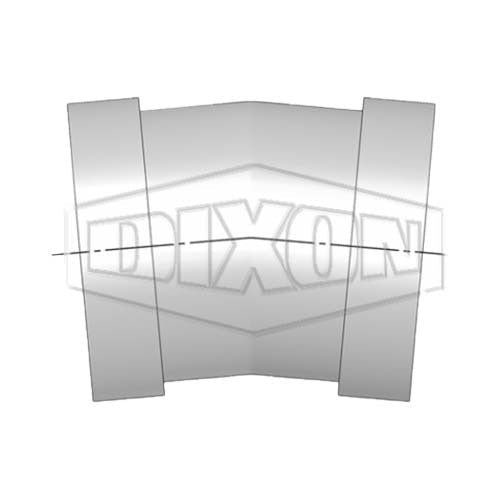

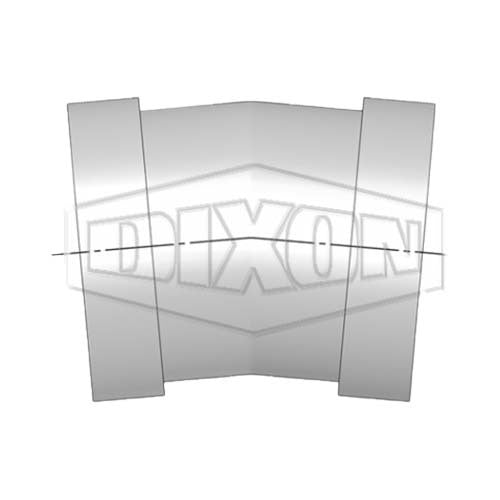

This Dixon shouldered setting piece is a short galvanised mild steel piece with shouldered ends, made to be joined with bolted shouldered couplings. The store title refers to it as a 10° setting piece.

The store lists 100 NB (4") and 150 NB (6"). Dixon rates the 100 NB size at 750 PSI with a length of 88.9 mm, and the 150 NB size at 580 PSI with a length of 101.6 mm. The catalogue heading is Shouldered Setting Pieces and it does not state an angle (manufacturer-stated).

Where this product is used

• Short pieces for shouldered end pipelines in mining and construction (manufacturer-stated use of shouldered fittings).
• Pipelines built from shouldered pipe and bolted shouldered couplings.

Features

• Shouldered setting piece, galvanised mild steel (manufacturer-stated)
• Length: 88.9 mm (100 NB), 101.6 mm (150 NB) (manufacturer-stated)
• Working pressure: 750 PSI (100 NB), 580 PSI (150 NB) (manufacturer-stated)
• Pipe OD: 114.3 mm and 165.1 mm (manufacturer-stated)

Common specifications

Key specifications

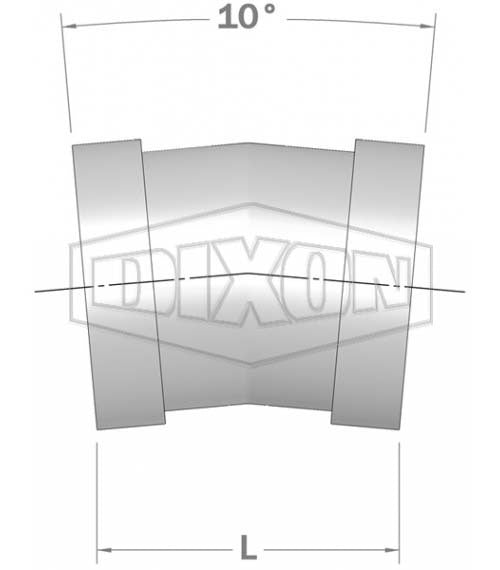

Dixon's catalogue does not give an angle for the setting piece. The store title mentions 10 degrees; confirm the angle with us if it matters for your layout. Dixon also lists 50, 80 and 200 NB setting pieces, which are not part of this product.

Selecting the right option

Check the length against the space in your line, and allow for a bolted shouldered coupling at each end. Confirm the angle with us if you are relying on the 10° in the product title, because the catalogue does not state it.
