Dixon Shouldered blank end, 2" (50mm)
Available
This Dixon shouldered blank end closes the end of a shouldered end pipeline. A bolted shouldered coupling holds it on the pipe. Dixon's pressure column does not follow the pattern used by its other shouldered fittings for the 100 and 150 NB sizes, so pressure is shown only where it does.
Where this product is used
- Closing the end of a shouldered end water line in mining and construction
Features
- Shouldered blank end, galvanised mild steel
- Working pressure 750 PSI (50 and 80 NB) and 580 PSI (200 NB)
- Material: Mild steel, galvanised
- Ends: Shouldered blank end
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Material | Mild steel, galvanised |
| Ends | Shouldered blank end |
| Sizes | 50, 80, 100, 150 and 200 NB |
Choosing the right option

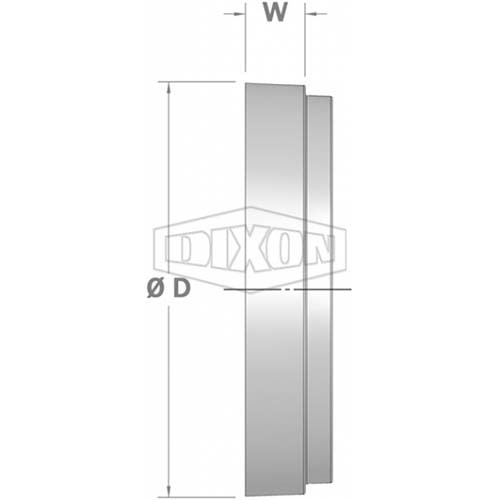

OD and W are the outside diameter and width of the blank end. Dixon also offers a blank end with a female BSP outlet, which is a separate product.
Related Dixon shouldered fittings: Dixon Shouldered Blank End With Female BSP Outlet Galvanised Mild Steel, Dixon Shouldered Bolted Coupling - Iron and Dixon Shouldered Weld Ring - Mild Steel.
Seals: Dixon Seal For Shouldered Coupling Buna-N.
| Option | Part number | SKU |
|---|---|---|
| 50 | 08/048/03/000 | A0067490 |
| 80 | 08/048/03/002 | A0067491 |
| 100 | 08/048/03/003 | A0067492 |
| 150 | 08/048/03/005 | A0067493 |
| 200 | 08/048/03/006 | A0067494 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Shouldered Blank End - Galvanised Mild Steel: 50
SKU: A0067490 | Model: 08/048/03/000
Dixon 08/048/03/000: Shouldered blank end, 2" (50mm).
