Dixon 50 x 25mm Shouldered Blank End W/ Female BSP Outlet Galvanised
Regular price
$40.68
Sale price
$40.68
Regular price
Inc. GST
Available
Mild Steel construction handles the temperature, pressure and media of industrial duty. Galvanised finish for service in harsher environments. Air & Water. For use with shouldered end pipe and couplings and mining and construction industries. Galvanised for corrosion protection. Mild steel. Galvanised conforming to AS4792:2006. Dixon 50 x 25mm Shouldered Blank End W/ Female BSP Outlet Galvanised Mild Steel.

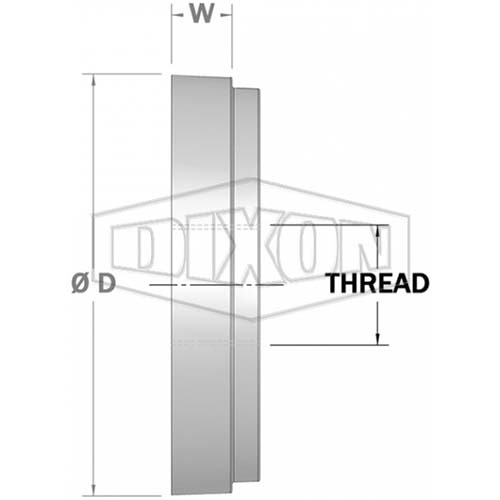

Key Specifications
| Size | 50 mm / 80 mm / 100 mm / 150 mm |
| Width | 16.0 mm / 17.5 mm |
| OD | 66.5 mm / 97.0 mm / 122.0 mm / 174.5 mm |
| Working Pressure | 750 PSI (5.1 MPa) / 580 PSI (4.0 MPa) |
| Material | Mild Steel |
| Finish | Galvanised |
| Outlet | 1" female BSP / 2" female BSP / 3" female BSP |
| Width W (mm) | 16 / 17.5 |
| Standards referenced | AS4792:2006 |
Where This Is Used
- Air & Water.
- For use with shouldered end pipe and couplings and mining and construction industries.
Features
- Galvanised for corrosion protection.
Product Highlights
Resources
Couldn't load pickup availability
Payment & Security
Payment methods
Secure Checkout. We do not store credit card details
Available Options:
-
50 x 25
Model Number: 08/048/04/000
-
80 x 25
Model Number: 08/048/04/003
-
80 x 50
Model Number: 08/048/04/004
-
100 x 25
Model Number: 08/048/04/006
-
100 x 50
Model Number: 08/048/04/007
-
150 x 25
Model Number: 08/048/04/015
-
150 x 50
Model Number: 08/048/04/016
-
150 x 75
Model Number: 08/048/04/018
