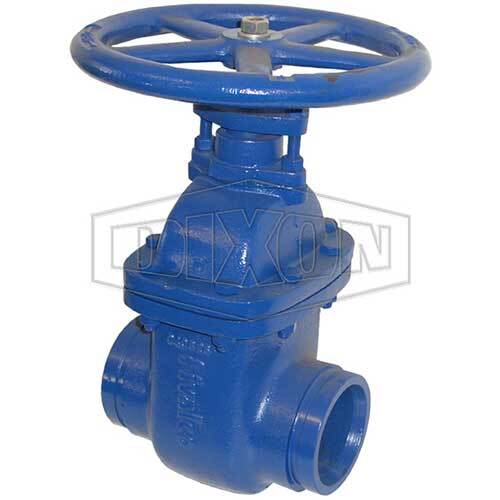

Dixon Shouldered ductile iron gate valve, 6" (150mm)
Available
This Dixon gate valve has a ductile iron body, a non-rising stem and shouldered ends, with the shoulder dimensions made to suit metric pipe. It is part of Dixon's mining range for water and slurry. It comes in 100mm (4") and 150mm (6").
Where this product is used
- Water and slurry lines in mining
- Isolation points on pipework with shouldered ends sized to metric pipe
Features
- Ductile iron body, stainless steel stem, bronze seat, cast iron wedge
- Non-rising stem
- Shouldered ends made to suit metric pipe
- Conforms to BS5150, PN20 rated
- Face to face: 229mm (100mm) and 292mm (150mm)
Key specifications
| Specification | Detail |
|---|---|
| Brand | Dixon |
| Body | Ductile iron |
| Stem | Stainless steel |
| Seat | Bronze |
| Wedge | Cast iron |
| Stem type | Non-rising |
| End connection | Shouldered, dimensions made to suit metric pipe |
| Standard | Conforms to BS5150, PN20 rated |
Choosing the right option
These are mining valves for shouldered pipe, not flanged or threaded: check the shoulder profile on your pipe or adaptors before ordering. The stem does not rise, so the valve suits tight spaces, but you cannot see the position from the stem. No temperature range for this valve.
Related Dixon valves: Dixon Minsup Shouldered Butterfly Valve Lever Operated, Dixon Ductile Iron Flanged Gate Valve and Dixon 08/062/849/00LO 2" Ball Valve Lockout Shouldered x Shouldered.
| Option | Part number | SKU |
|---|---|---|
| 100 | GVNR-S-1161-100 | A0070329 |
| 150 | GVNR-S-1161-150 | A0070330 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Dixon Shouldered Gate Valve Ductile Iron Body: 150
SKU: A0070330 | Model: GVNR-S-1161-150
Dixon GVNR-S-1161-150: 6" (150mm) Shouldered Ductile Iron Gate Valve, shouldered ends. Face to face: 292mm, Stem: Stainless steel, non-rising.
