Sutton E460 3mm Endmill 4 Flute - Carbide VHM Ultra - Helica - Regular
Available

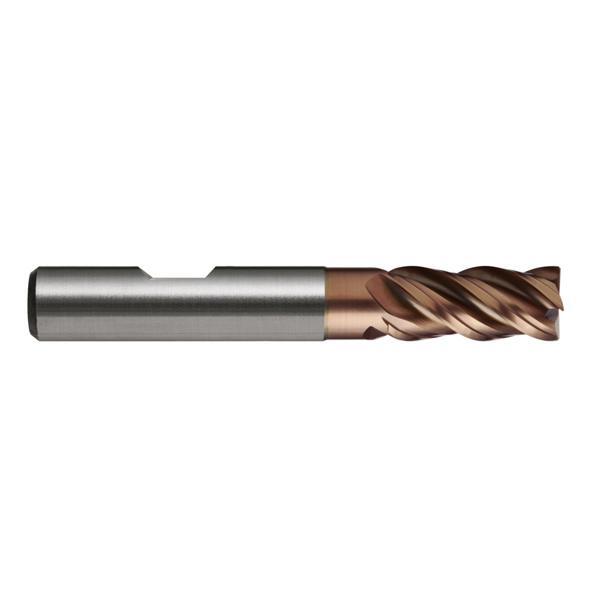

The Sutton E460 is a 4 flute endmill made from VHM-ULTRA grade solid carbide, with a Helica coating. It is in the regular length series. This listing covers 11 metric sizes from 3 mm to 20 mm.
The cutting edge has a 40/42° variable helix and the designation is VA. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Stainless steels and other tough materials.
- Universal applications with one tool.
Design features
- VHM-ULTRA grade solid carbide construction.
- Helica coating for superior wear resistance in stainless steel.
- 4 flutes, 40/42° variable helix.
- Optimised geometry with variable helix design for high productivity.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.
| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|---|---|
| E460 0300 | 3 | 57 | 8 | 14 | 6 | 2.8 | 4 | 0.06 |
| E460 0400 | 4 | 57 | 11 | 16 | 6 | 3.8 | 4 | 0.06 |
| E460 0500 | 5 | 57 | 13 | 18 | 6 | 4.8 | 4 | 0.10 |
| E460 0600 | 6 | 57 | 13 | 19 | 6 | 5.7 | 4 | 0.10 |
| E460 0800 | 8 | 63 | 19 | 25 | 8 | 7.6 | 4 | 0.10 |
| E460 1000 | 10 | 72 | 22 | 30 | 10 | 9.5 | 4 | 0.20 |
| E460 1200 | 12 | 83 | 26 | 36 | 12 | 11.5 | 4 | 0.20 |
| E460 1400 | 14 | 83 | 26 | 36 | 14 | 13.5 | 4 | 0.30 |
| E460 1600 | 16 | 92 | 32 | 42 | 16 | 15.5 | 4 | 0.30 |
| E460 1800 | 18 | 92 | 32 | 42 | 18 | 17.5 | 4 | 0.30 |
| E460 2000 | 20 | 104 | 38 | 52 | 20 | 19.5 | 4 | 0.30 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E460 |
| Type | Endmill, 4 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | Helica |
| Helix / geometry | R40/42 |
| Designation | VA |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 11 sizes, 3 to 20 mm |
