Sutton E472 6mm Endmill 5 Flute - Carbide VHM Ultra - Xceed - Regular
Available

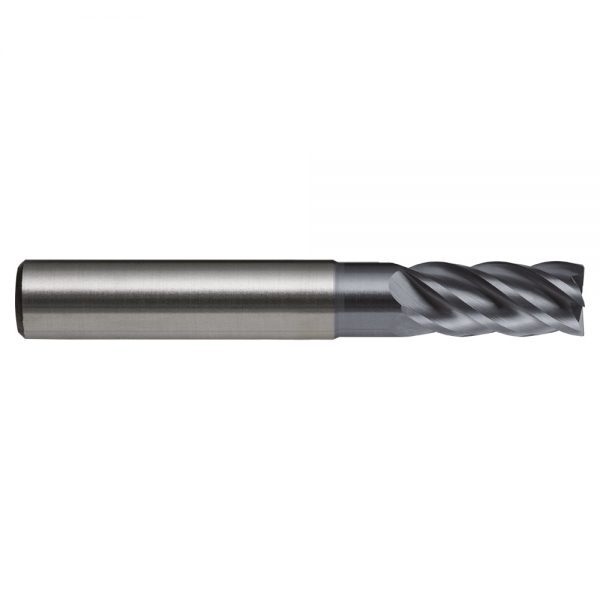

The Sutton E472 is a 5 flute endmill made from VHM-ULTRA grade solid carbide, with an Xceed coating. It is in the regular length series. This listing covers 6 metric sizes from 6 mm to 20 mm.
The cutting edge has a 40/42° variable helix and the designation is Ni. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Stainless steels and super alloys.
- Slotting, side cutting and finishing.
Design features
- VHM-ULTRA grade solid carbide construction.
- Xceed coating for outstanding oxidation resistance and hot hardness.

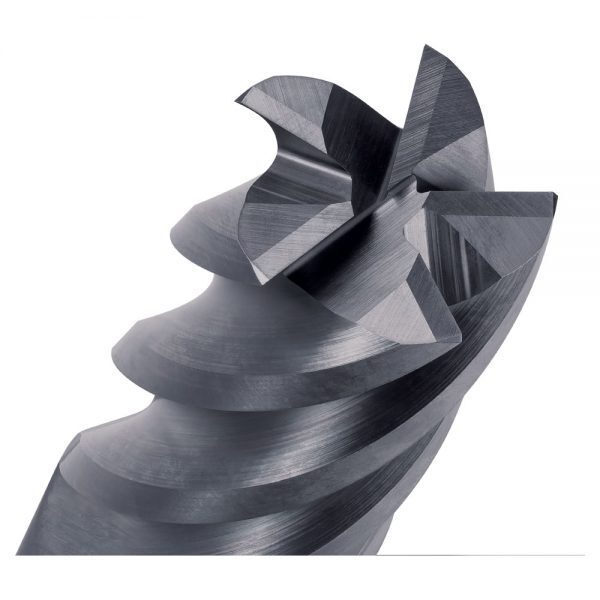

- 5 flutes, 40/42° variable helix.
- Optimised geometry with variable helix design.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

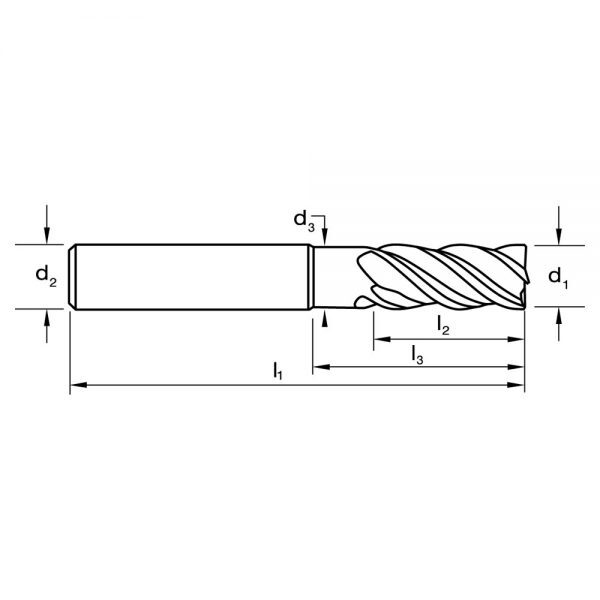

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| E472 0600 | 6 | 57 | 13 | 21 | 6 | 5.7 | 5 |
| E472 0800 | 8 | 63 | 19 | 27 | 8 | 7.6 | 5 |
| E472 1000 | 10 | 72 | 22 | 32 | 10 | 9.5 | 5 |
| E472 1200 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 |
| E472 1600 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 |
| E472 2000 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E472 |
| Type | Endmill, 5 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | Xceed |
| Helix / geometry | R40/42 |
| Designation | Ni |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 6 sizes, 6 to 20 mm |
