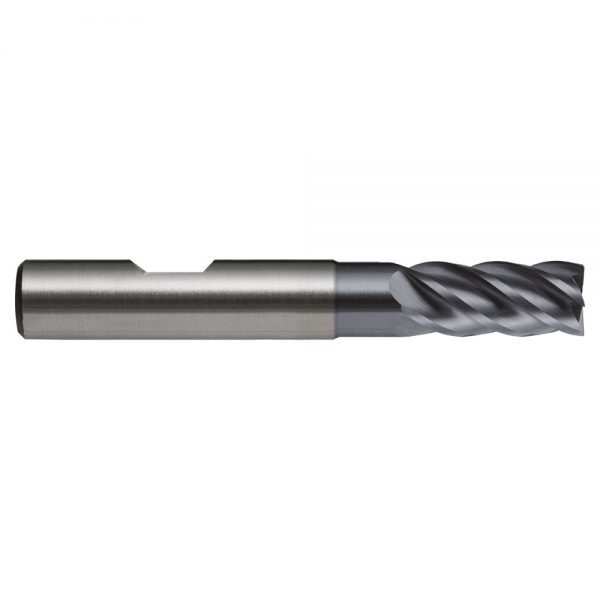

Sutton E473 6mm Endmill 5 Flute - Carbide VHM Ultra - Xceed - Regular
Available
The Sutton E473 is a 5 flute endmill made from VHM-ULTRA grade solid carbide, with an Xceed coating. It is in the regular length series. This listing covers 6 metric sizes from 6 mm to 20 mm.
The cutting edge has a 40/42° variable helix and the designation is Ni. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Stainless steels and super alloys.
- Slotting, side cutting and finishing.
Design features
- VHM-ULTRA grade solid carbide construction.
- Xceed coating for outstanding oxidation resistance and hot hardness.

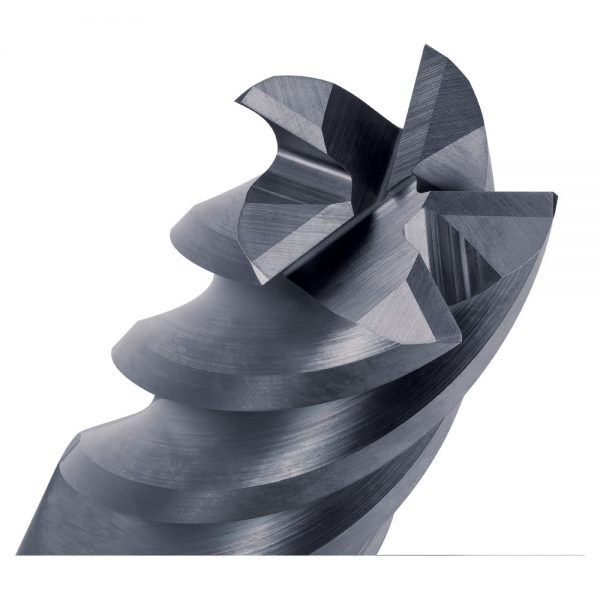

- 5 flutes, 40/42° variable helix.
- Optimised geometry with variable helix design.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

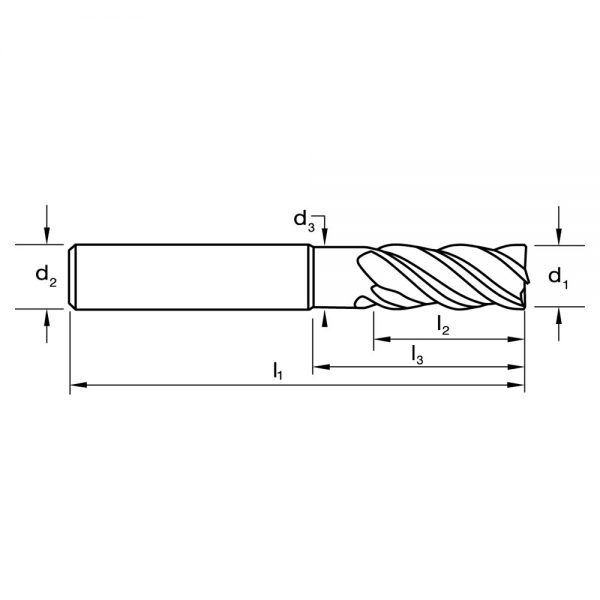

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| E473 0600 | 6 | 57 | 13 | 21 | 6 | 5.7 | 5 |
| E473 0800 | 8 | 63 | 19 | 27 | 8 | 7.6 | 5 |
| E473 1000 | 10 | 72 | 22 | 32 | 10 | 9.5 | 5 |
| E473 1200 | 12 | 83 | 26 | 38 | 12 | 11.5 | 5 |
| E473 1600 | 16 | 92 | 32 | 44 | 16 | 15.5 | 5 |
| E473 2000 | 20 | 104 | 38 | 54 | 20 | 19.5 | 5 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E473 |
| Type | Endmill, 5 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | Xceed |
| Helix / geometry | R40/42 |
| Designation | Ni |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 6 sizes, 6 to 20 mm |
Related products
Related Sutton carbide endmills: E472 metric endmill (regular), Xceed, plain shank, E476 metric endmill (extra long), AlNova, plain shank, E469 metric endmill (regular), AlNova, Weldon flat shank, E477 metric endmill (extra long), AlNova, plain shank, E480 metric endmill (regular), plain shank.
