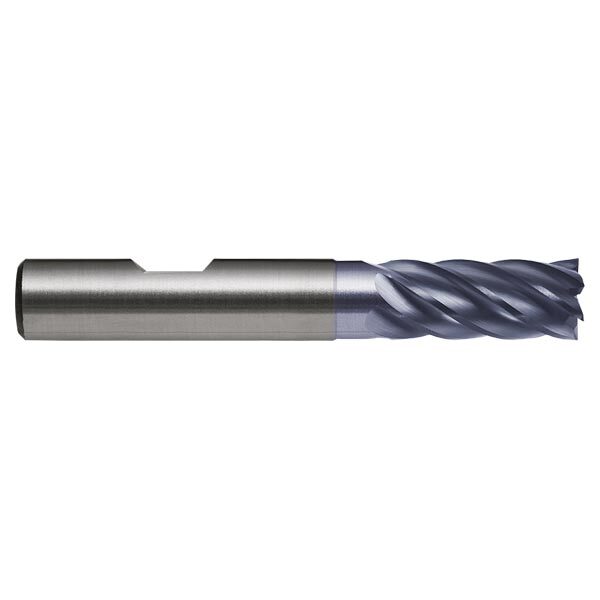

Sutton E469 12mm Endmill 6 Flute - Carbide VHM Ultra - AlNova - Regular
Available
The Sutton E469 is a 6 flute endmill made from VHM-ULTRA grade solid carbide, with an AlNova coating. It is in the regular length series. This listing covers 6 metric sizes from 12 mm to 20 mm.
The cutting edge has a 40/42° variable helix and the designation is Ti. The shank is a plain cylindrical shank (DIN 6535 form HA) on the E468 items and a cylindrical shank with Weldon flat (DIN 6535 form HB) on the E469 items, with h6 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Finishing with a square end.
- Titanium alloys, where the tool is optimised for longer tool life.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlNova coating for outstanding oxidation resistance and hot hardness.

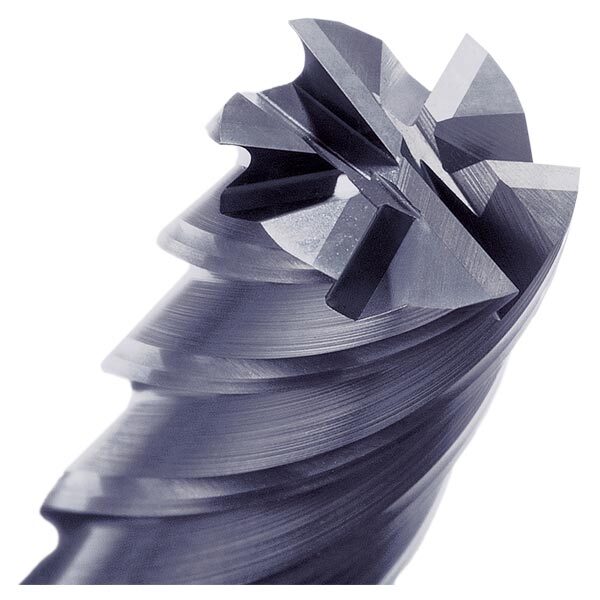

- 6 flutes, 40/42° variable helix.
- Variable helix design to suppress vibration.
- Web taper to increase rigidity.
- Plain cylindrical shank (DIN 6535 form HA) on the E468 items and a cylindrical shank with Weldon flat (DIN 6535 form HB) on the E469 items.
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

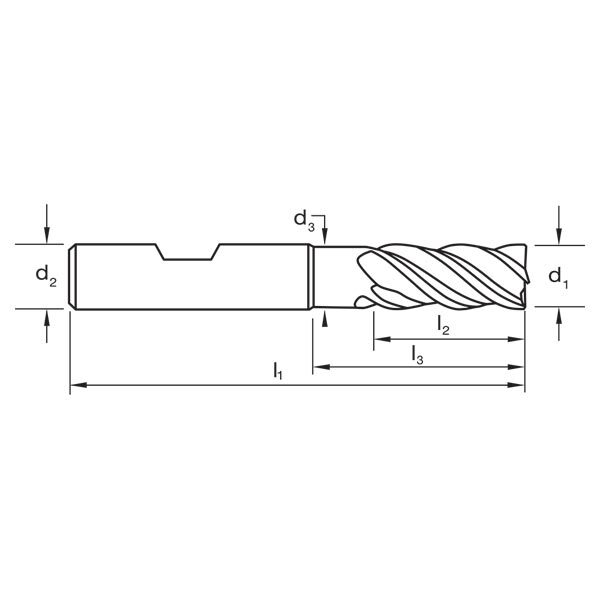

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes | Shank form |
|---|---|---|---|---|---|---|---|---|
| E468 1200 | 12 | 83 | 26 | 38 | 12 | 11.5 | 6 | DIN 6535 HA |
| E469 1200 | 12 | 83 | 26 | 38 | 12 | 11.5 | 6 | DIN 6535 HB |
| E468 1600 | 16 | 92 | 32 | 44 | 16 | 15.5 | 6 | DIN 6535 HA |
| E469 1600 | 16 | 92 | 32 | 44 | 16 | 15.5 | 6 | DIN 6535 HB |
| E468 2000 | 20 | 104 | 38 | 54 | 20 | 19.5 | 6 | DIN 6535 HA |
| E469 2000 | 20 | 104 | 38 | 54 | 20 | 19.5 | 6 | DIN 6535 HB |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E469 |
| Type | Endmill, 6 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlNova |
| Helix / geometry | R40/42 |
| Designation | Ti |
| Shank form | plain cylindrical shank (DIN 6535 form HA) on the E468 items and a cylindrical shank with Weldon flat (DIN 6535 form HB) on the E469 items |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 6 sizes, 12 to 20 mm |
