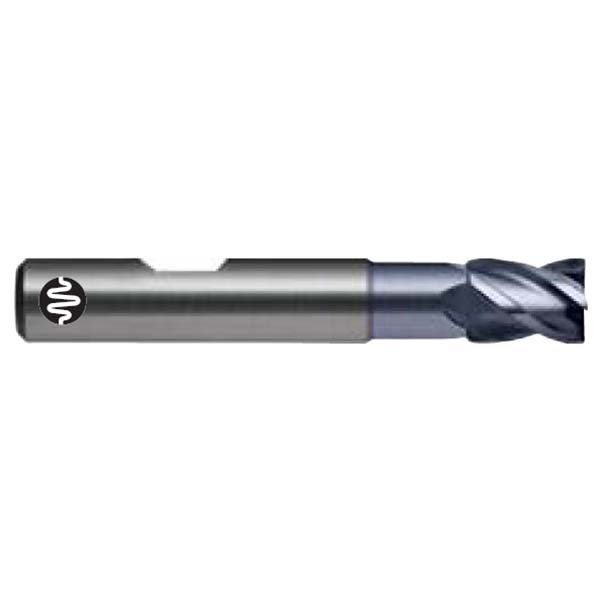

4 Flute Endmill - R35/38 UNI - Short - Harmony
- Endmill, 4 Flute, R35/38 UNI, Short, Harmony for high performance
Specifications
Specifications
Specifications
- Designation: UNI
- Material: VHM-ULTRA
- Finish: AlCrN
- Shank Form: HB
- Helix Angle: R35/38
- Point Tolerance: h9
- Shank Tolerance: h6

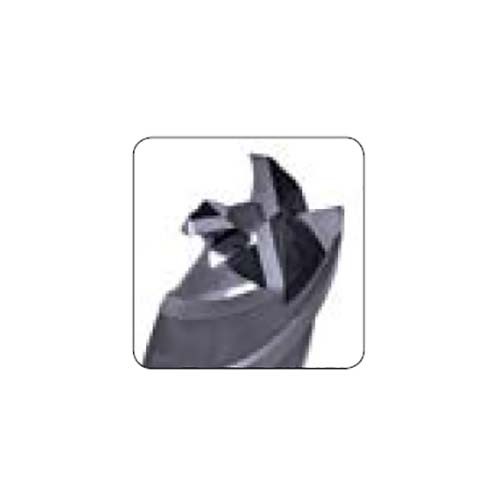

- Point Form: 45° Corner Chamfer
- Type: N (finishing)
- Rake Angle: 6
- Standard: DIN6527K
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Stainless Steel – Austenitic- 180 HB
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Cast Iron, Malleable – Ferritic- 130 HB
- Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
- Optimal for Cast Iron – Chilled – 400 HB
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance
- 35/38° variable flute helix for chatter free milling
- Suitable for materials up to 1600 N/mm2
- AlCrN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
E534 Endmill Sutton
E534 Endmill Sutton
SKU: A0130261
Type: Endmill Harmony
- Wide Range
- Reliable Services
- Proven Trust
Available
The E534 Endmill Sutton by Sutton Tools is an Endmill Harmony with AlCrN finish. It provides materials up to 1600 N/mm2 and is suitable for Stainless Steel – Austenitic- 180 HB.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Resources
Couldn't load pickup availability
Description
Description
4 Flute Endmill - R35/38 UNI - Short - Harmony
- Endmill, 4 Flute, R35/38 UNI, Short, Harmony for high performance
Specifications
Specifications
Specifications
- Designation: UNI
- Material: VHM-ULTRA
- Finish: AlCrN
- Shank Form: HB
- Helix Angle: R35/38
- Point Tolerance: h9
- Shank Tolerance: h6
- Point Form: 45° Corner Chamfer
- Type: N (finishing)
- Rake Angle: 6
- Standard: DIN6527K
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Stainless Steel – Austenitic- 180 HB
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Cast Iron, Malleable – Ferritic- 130 HB
- Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
- Optimal for Cast Iron – Chilled – 400 HB
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance
- 35/38° variable flute helix for chatter free milling
- Suitable for materials up to 1600 N/mm2
- AlCrN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
E534 Endmill Sutton
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The E534 Endmill Sutton by Sutton Tools is an Endmill Harmony with AlCrN finish. It provides materials up to 1600 N/mm2 and is suitable for Stainless Steel – Austenitic- 180 HB. |
Regular price
From $73.94
Sale price
From $73.94
Regular price
Unit price
/per
| Sutton Tools | Endmill Harmony |

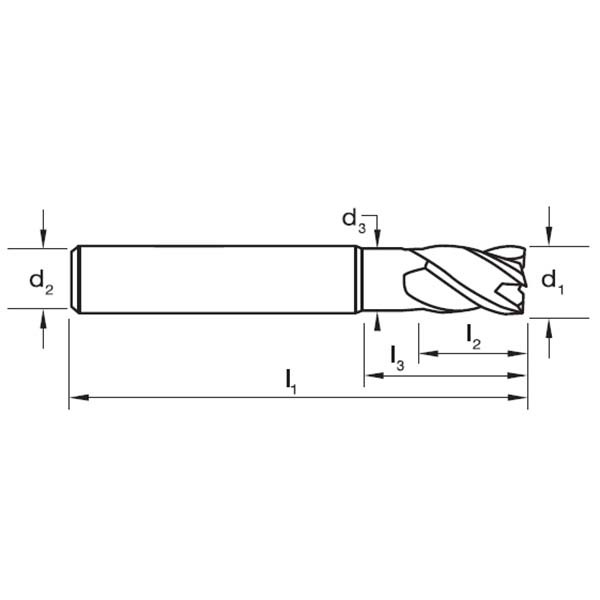

Overall Length (mm)
