Description
Description
Description
- Endmill, 4 Flute, R35/38 UNI, Short, Harmony for high performance
Specifications
Specifications

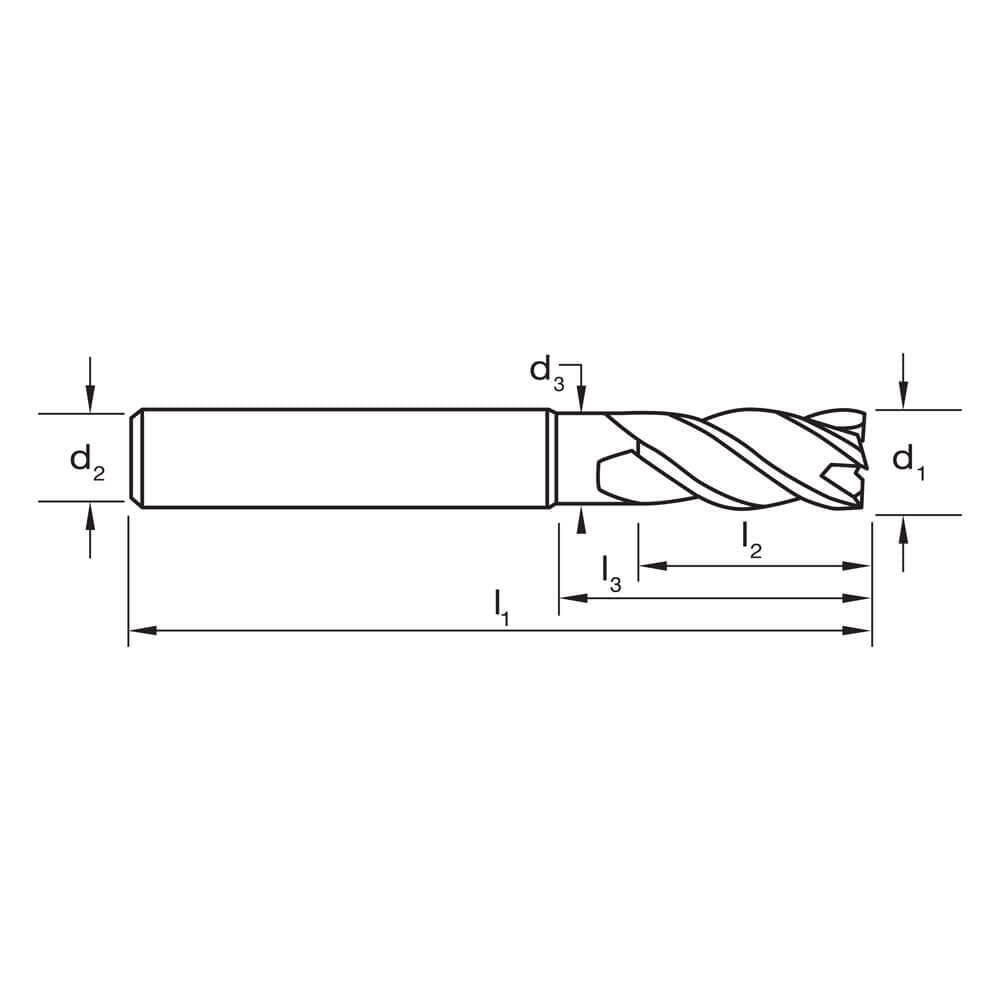

Dimensions
- d1 (mm): 3
- d2 (mm): 6
- d3 (mm): 2.8
- l1 (mm): 57
- l2 (mm): 8
- l3 (mm): 19
- Quantity: 1
Specifications
- Designation: UNI
- Material: VHM-ULTRA
- Finish: AlCrN
- Shank Form: HA
- Helix Angle: R35/38
- Point Tolerance: e8
- Shank Tolerance: h6

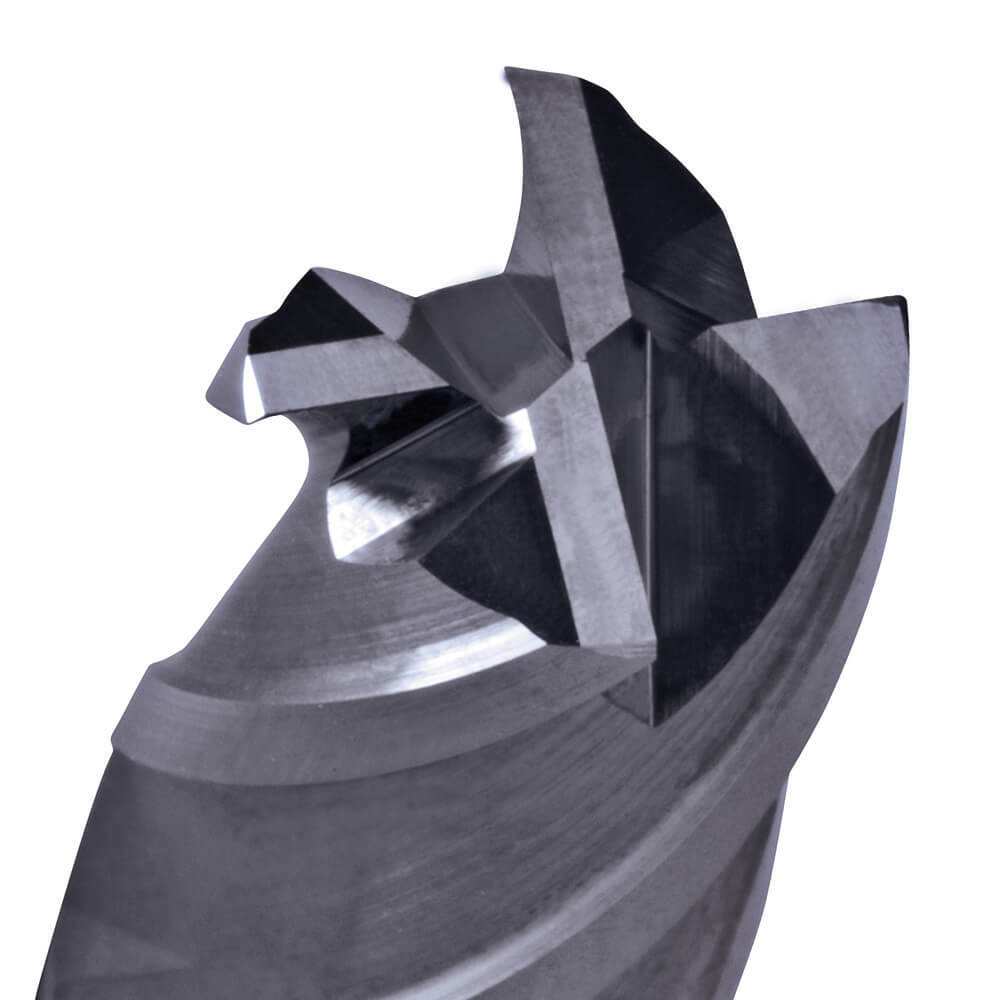

- Point Form: 45° Corner Chamfer
- Type: N (finishing)
- Rake Angle: 6
- Standard: DIN6527L
Applications
Applications
Applications
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
- Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 300 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
- Optimal for Steel - Low alloy & cast < 5% of alloying elements- 300 HB
- Optimal for Steel - High alloy, cast & tool- 200 HB
- Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic- 180 HB
- Optimal for Cast Iron, Nodular (GGG) - Ferritic- 160 HB
- Optimal for Cast Iron, Malleable – Ferritic- 130 HB
- Optimal for Cast Iron, Malleable – Pearlitic- 230 HB
- Optimal for Cast Iron – Chilled – 400 HB
Features & Benefits
Features & Benefits
Features
- VHM-ULTRA grade of carbide for high performance
- 35/38° variable flute helix for chatter free milling
- Suitable for materials up to 1600 N/mm2
- AlCrN for longer tool life
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

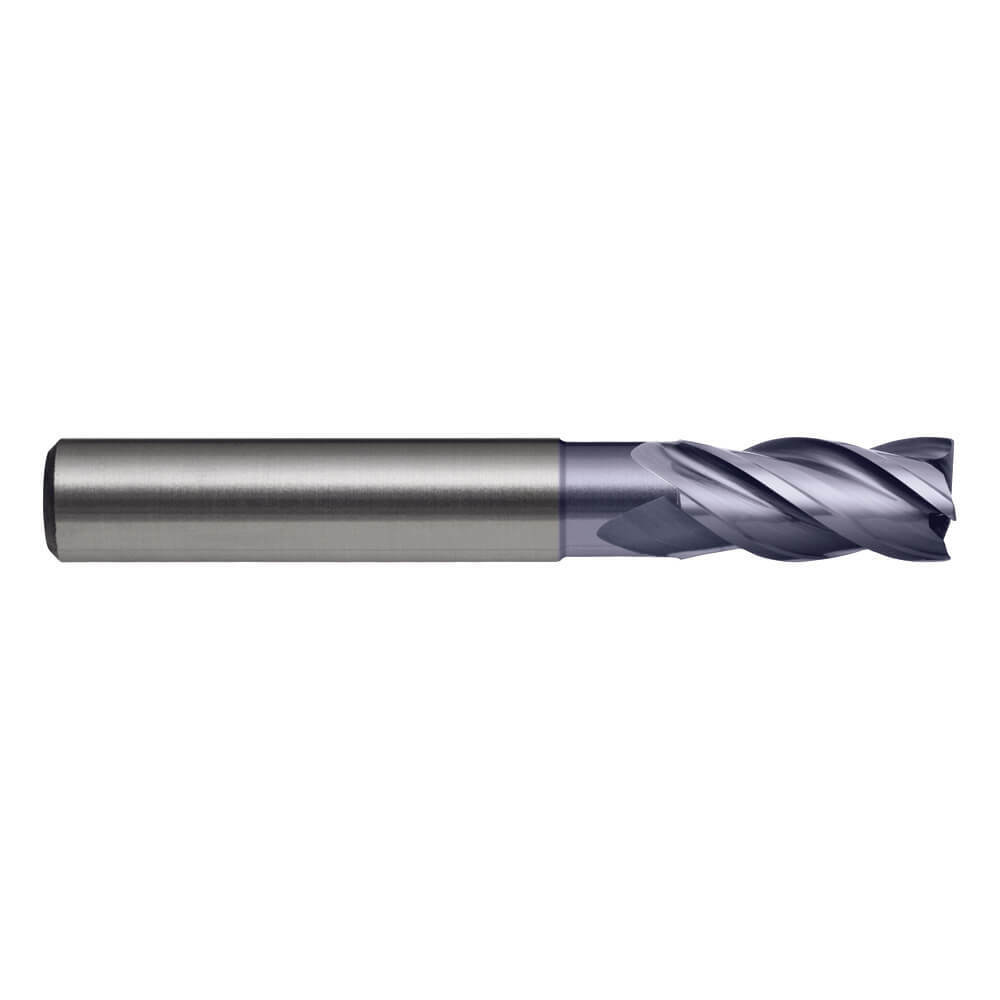

Sutton E535 Metric 4 Flute Endmill - Carbide VHM Ultra AlCrN - Long
Sutton E535 Metric 4 Flute Endmill - Carbide VHM Ultra AlCrN - Long
SKU: A0009775
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton E535 Metric 4 Flute Endmill, crafted from VHM-ULTRA grade carbide, offers high performance. Its 35/38° variable flute helix ensures chatter-free milling on materials up to 1600 N/mm2. The AlCrN finish enhances tool longevity.
