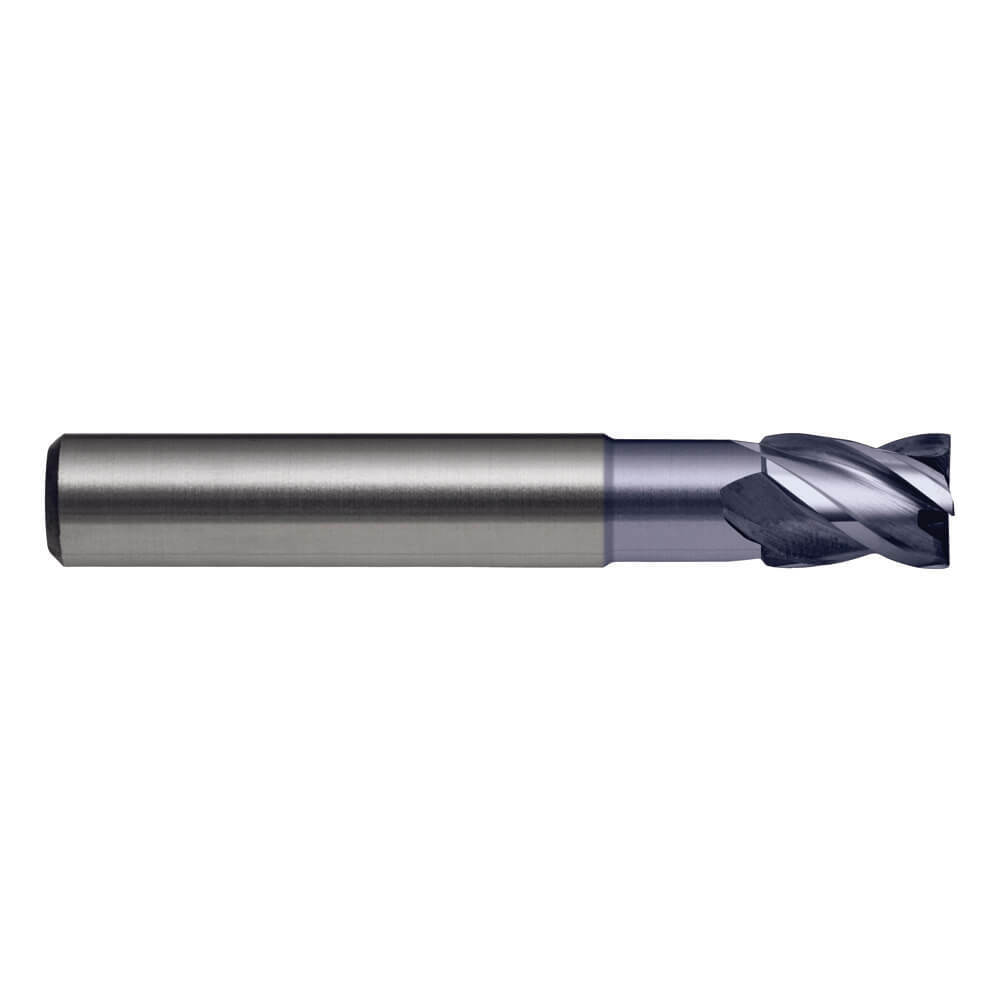

Sutton E533 6mm Endmill 4 Flute - Carbide VHM Ultra - AlCrN - Stub
Available
The Sutton E533 is a 4 flute endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the stub length series. This listing covers 6 metric sizes from 6 mm to 20 mm.
The cutting edge has a 35/38° variable helix and the designation is UNI. The shank is a plain cylindrical shank (DIN 6535 form HA), with h6 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 K. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Universal use for slotting and finishing with one tool.

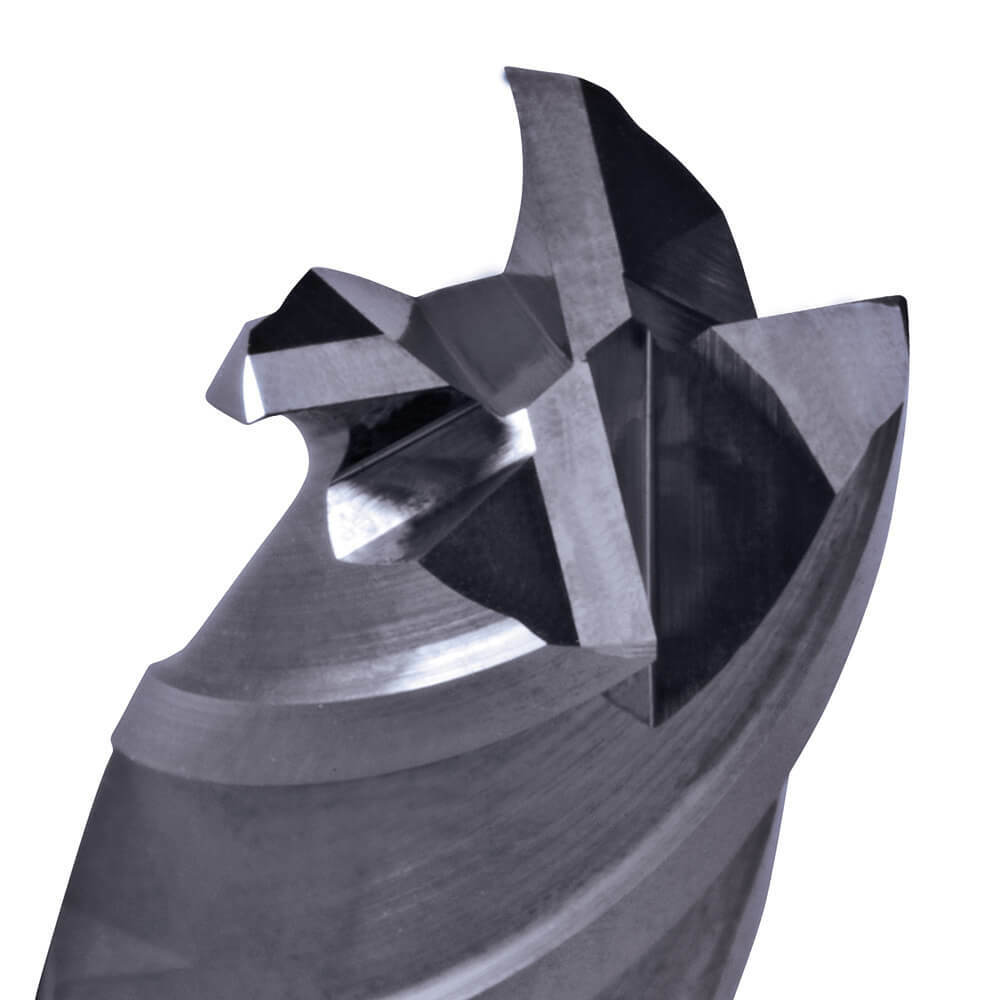

Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 4 flutes, 35/38° variable helix.
- Plain cylindrical shank (DIN 6535 form HA).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

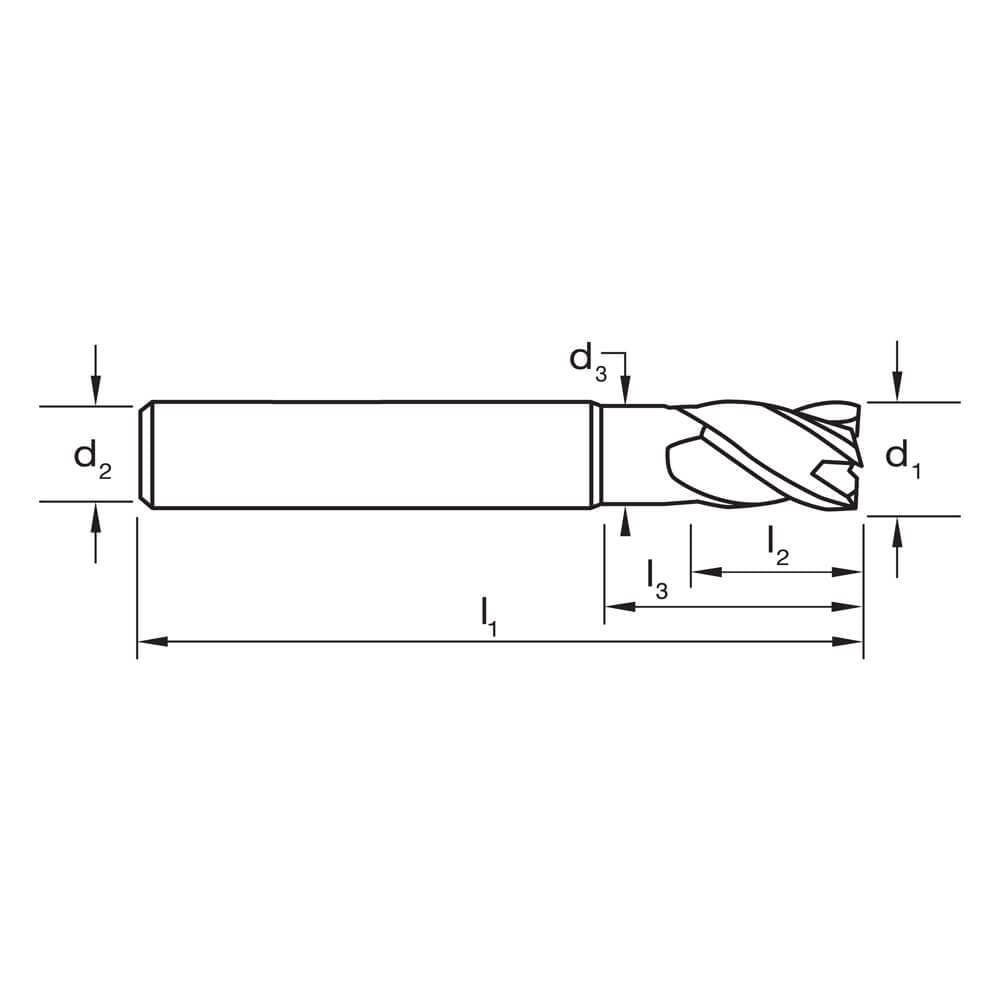

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes |
|---|---|---|---|---|---|---|---|
| E533 0600 | 6 | 54 | 10 | 18 | 6 | 5.5 | 4 |
| E533 0800 | 8 | 58 | 12 | 22 | 8 | 7.5 | 4 |
| E533 1000 | 10 | 66 | 14 | 24 | 10 | 9.5 | 4 |
| E533 1200 | 12 | 73 | 16 | 28 | 12 | 11.2 | 4 |
| E533 1600 | 16 | 82 | 22 | 34 | 16 | 15 | 4 |
| E533 2000 | 20 | 92 | 26 | 42 | 20 | 19 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E533 |
| Type | Endmill, 4 flute, stub length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R35/38 |
| Designation | UNI |
| Shank form | plain cylindrical shank (DIN 6535 form HA) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 K |
| Sizes in this listing | 6 sizes, 6 to 20 mm |
Related products
Related Sutton carbide endmills: E534 metric endmill (stub), AlCrN, Weldon flat shank, E535 metric endmill (regular), AlCrN, plain shank, E536 metric endmill (regular), AlCrN, Weldon flat shank, E543 20 mm endmill (regular), AlCrN, plain shank, E544 20 mm endmill (regular), AlCrN, Weldon flat shank.
