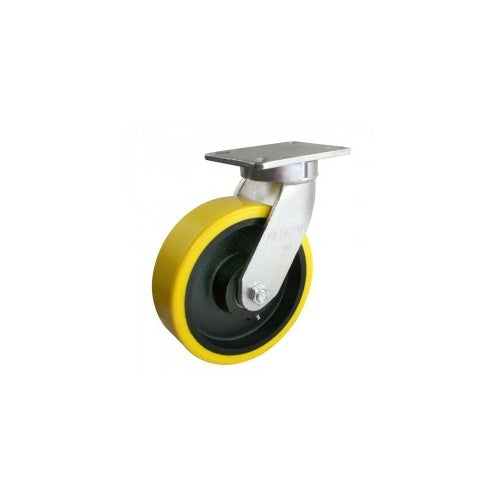

EasyRoll X1 Swivel Plate Castor, Urethane on Cast Iron 203 mm | X12A91K200

The EasyRoll X1 series swivel plate castor is fitted with a urethane on cast iron wheel and is available in 203 and 254 mm wheel diameters. Load capacity is 2,000 kg per castor. The top plate is 184 x 133 mm with hole centres of 133-156 x 86-105 mm.

The X1 series is suited to heavy machinery; dollies and stillages; and gantries and mobile work benches.

Where this product is used

• Heavy machinery
• Dollies and stillages
• Gantries and mobile work benches
• Mining, military and airport applications

Features

• Urethane on cast iron wheel in 203 and 254 mm
• Load capacity 2,000 kg per castor
• Kingpinless swivel
• Top plate made from 3/8 in AISI 1045 heat treated steel
• Heavy duty fabricated construction withstands high impact loads
• Frames welded inside and out for strength
• 3/4 in axle
• Zinc plated finish

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
