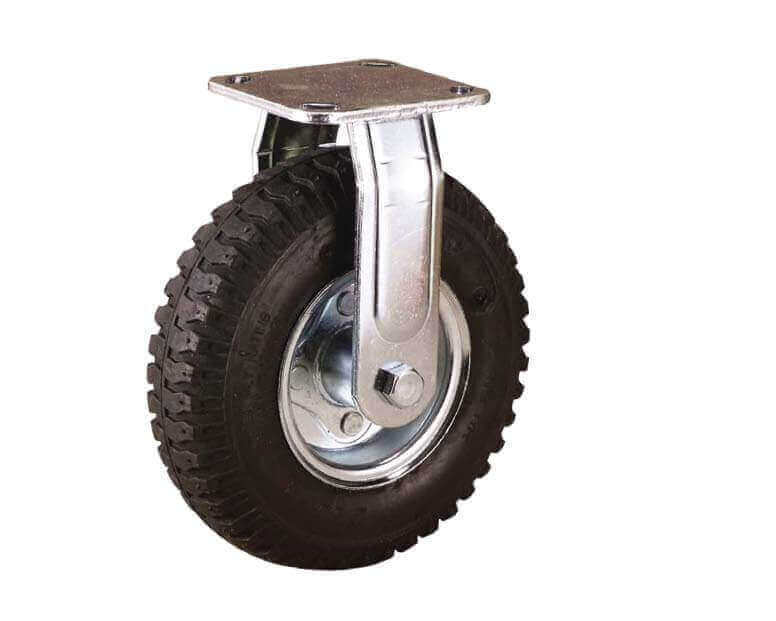

EasyRoll J3 Fixed Plate Castor, Pneumatic 210 mm | J33A98B200

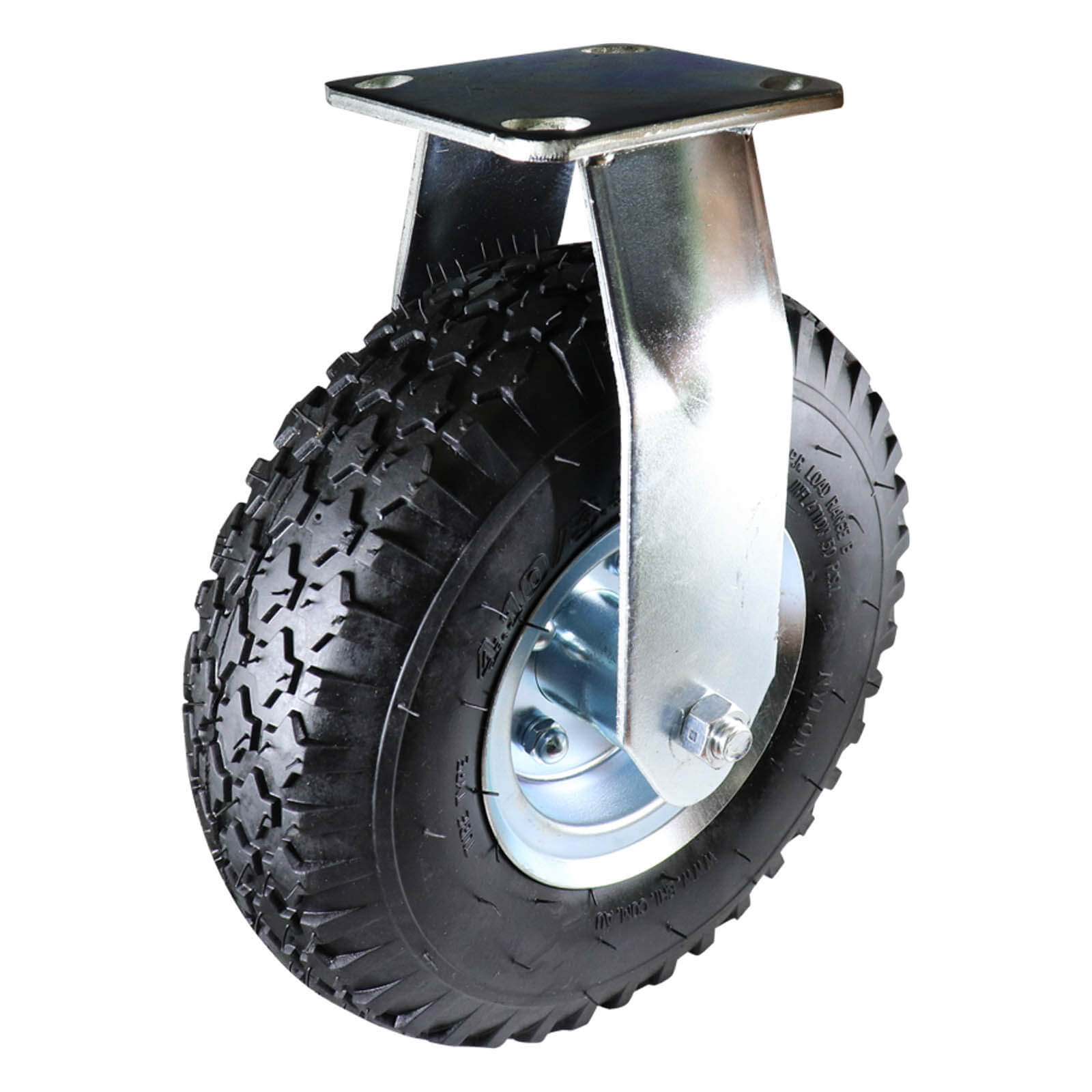

The EasyRoll J3 series fixed plate castor is fitted with a pneumatic wheel and is available in 210 and 250 mm wheel diameters. Load capacity is 140 kg to 160 kg per castor depending on the wheel size. The top plate is 115 x 100 mm with hole centres of 76-92 x 73-64 mm.

They suit general and stock picking trolleys; dollies and stillages; catering and industrial laundry equipment. They have ball bearing wheels and a welded steel fork with a fully hardened double headset bearing.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Pneumatic wheel in 210 and 250 mm
• Load capacity 140 kg to 160 kg per castor
• Rugged welded steel construction with a fully hardened double headset bearing
• Ball bearing wheels
• 4 ply pneumatic tyres suit uneven or unsealed ground

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates pneumatic wheels as follows: excellent shock absorbency and floor protection, fair load capacity, poor push effort and good durability. It suits outdoor, irregular or unsealed surfaces and gives the highest resilience. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
