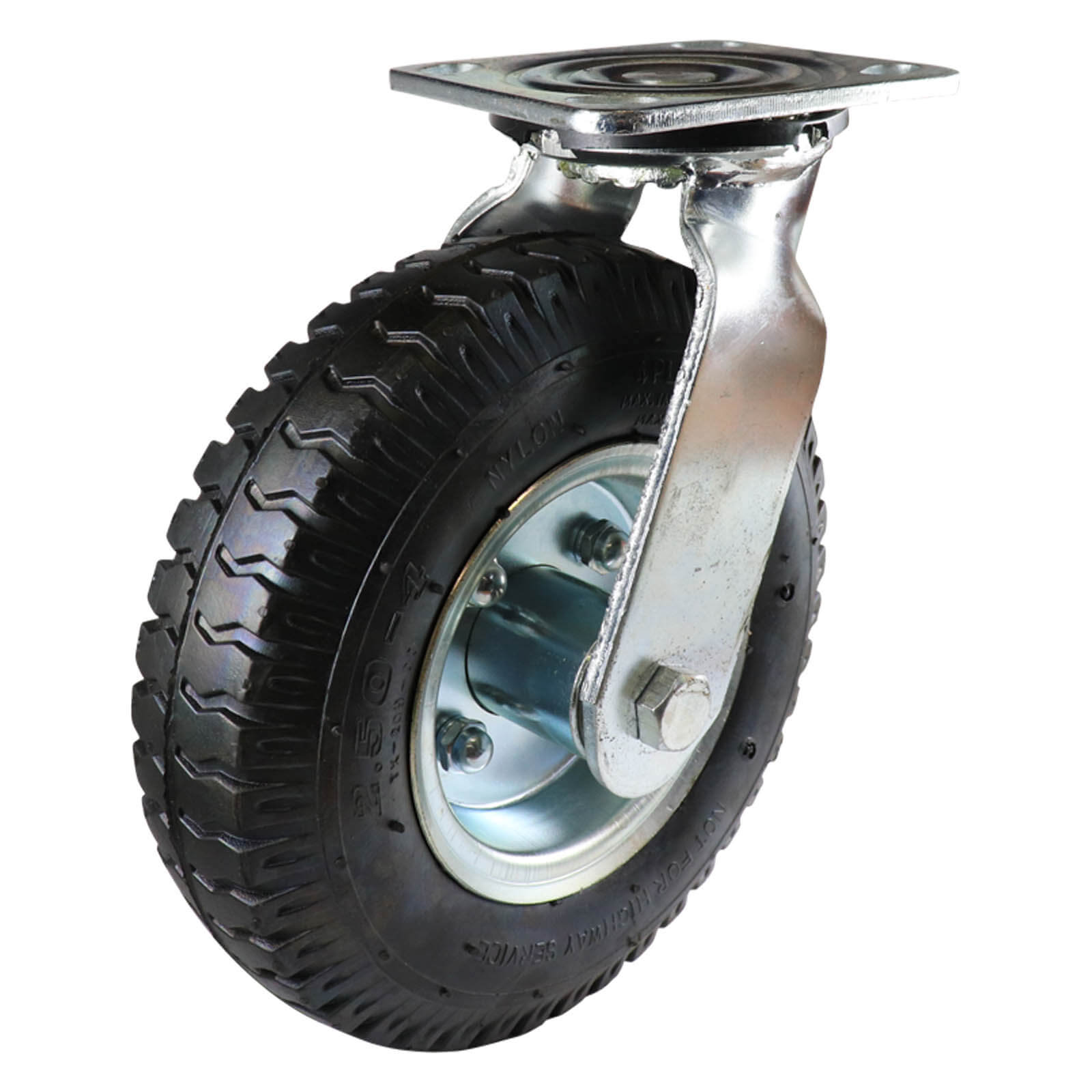

EasyRoll j3 series swivel plate castor J32A98B200

The EasyRoll J3 series swivel plate castor is fitted with a pneumatic wheel and is available in 210 and 250mm wheel diameters. Load capacity is 140kg to 160kg per castor depending on the wheel size. The top plate is 115 x 100mm with hole centres of 76-92 x 73-64mm.

They suit general and stock picking trolleys; dollies and stillages; catering and industrial laundry equipment. They have ball bearing wheels and a welded steel fork with a fully hardened double headset bearing.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Pneumatic wheel in 210 and 250mm
• Load capacity 140kg to 160kg per castor
• Rugged welded steel construction with a fully hardened double headset bearing
• Ball bearing wheels
• 4 ply pneumatic tyres suit uneven or unsealed ground

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Pneumatic wheels: excellent shock absorbency and floor protection, fair load capacity, poor push effort and good durability. It suits outdoor, irregular or unsealed surfaces and gives the highest resilience. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.

See also: EasyRoll J3 Series Fixed Plate Castor - Pneumatic Wheel, EasyRoll J3 Series Swivel Plate Castor - Cast Iron Wheel, EasyRoll J3 Series Swivel Plate Castor - Puncture Proof Wheel.
