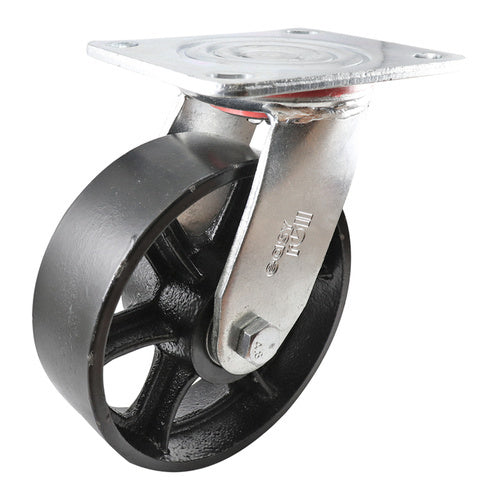

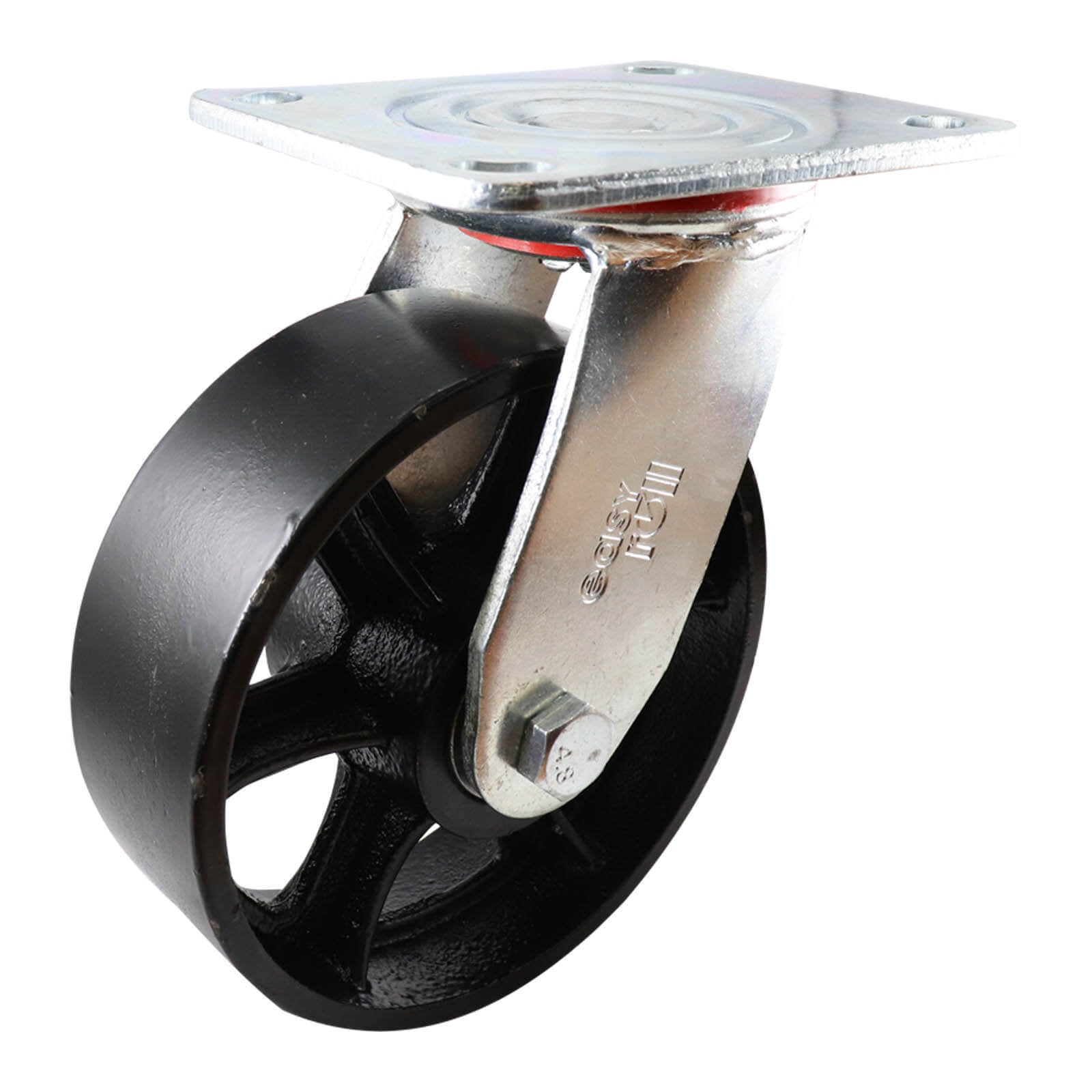

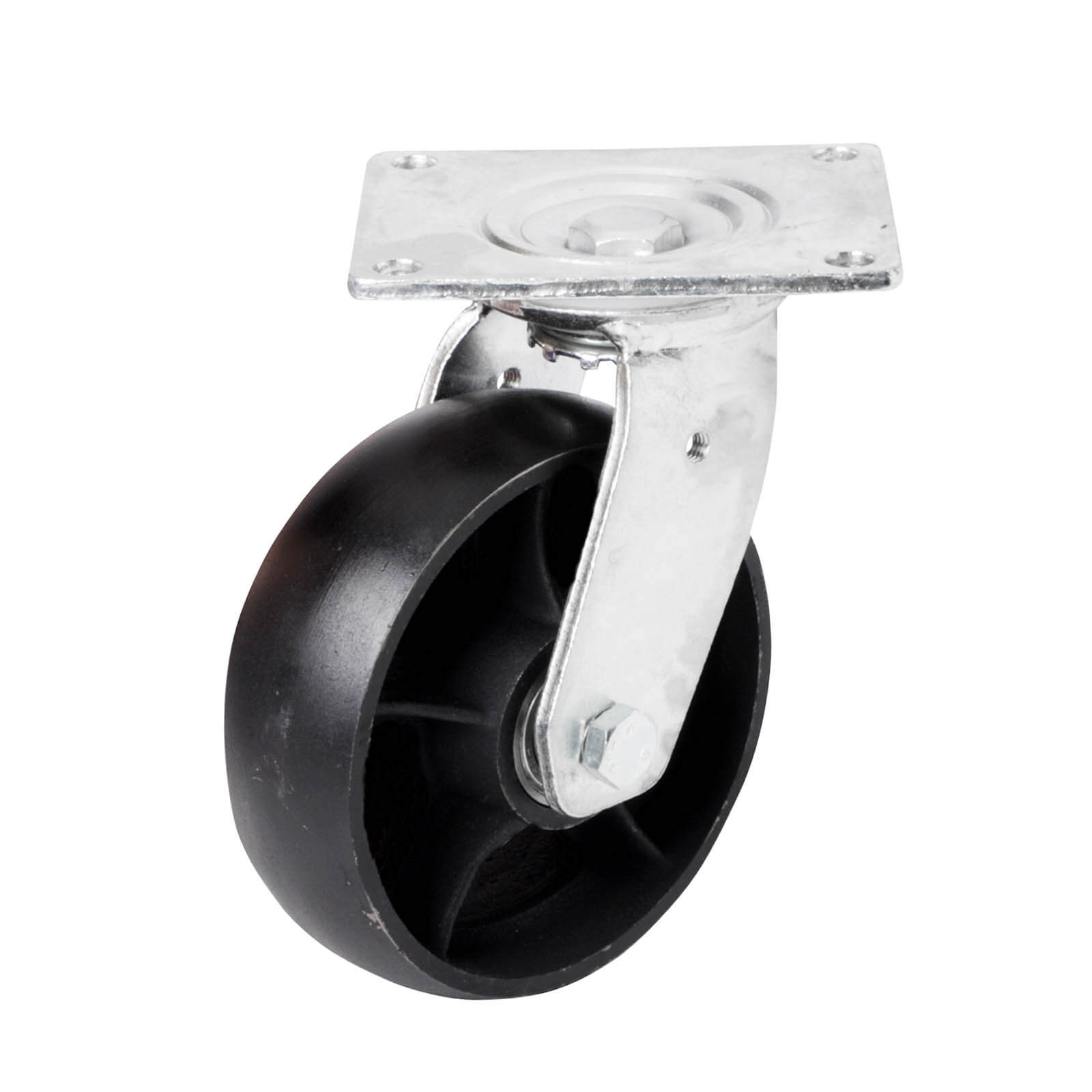

EasyRoll j3 series swivel plate castor J32AZ82K150

The EasyRoll J3 series swivel plate castor is fitted with a cast iron wheel and is available in 100, 125, 150 and 200mm wheel diameters. Load capacity is 320kg to 600kg per castor depending on the wheel size. The top plate is 135 x 110mm with hole centres of 105 x 80mm.

The J3 series is suited to general and stock picking trolleys, dollies and stillages and catering and industrial laundry equipment. It has precision wheel bearings.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Cast iron wheel in 100, 125, 150 and 200mm
• Load capacity 320kg to 600kg per castor
• Heavy duty fabricated construction withstands high impact loads
• Dust sealing rings extend the life of the bearings
• Grease nipple to the headset bearings
• All wheels come with precision bearings
• Robust brake assembly with an adjustable brake

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Cast iron wheels: poor shock absorbency and floor protection, excellent load capacity, push effort and durability. It suits oven floors, outdoor or unsealed surfaces and broken glass, is the best choice for high temperature and may damage flooring. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
