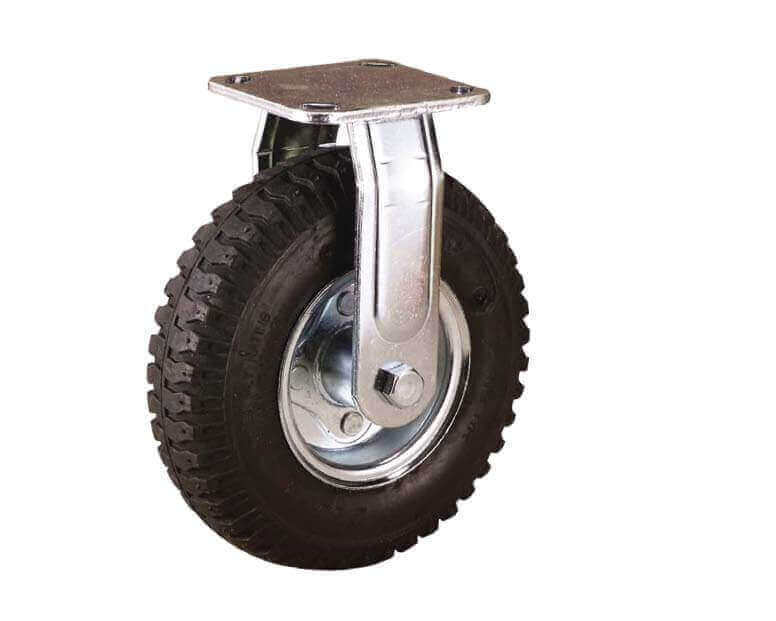

EasyRoll j3 series fixed plate castor J33A99B250

The EasyRoll J3 series fixed plate castor is fitted with a puncture proof wheel and is available in 220 and 265mm wheel diameters. Load capacity is 100kg to 125kg per castor depending on the wheel size. The top plate is 115 x 100mm with hole centres of 76-92 x 73-64mm.

They suit general and stock picking trolleys; dollies and stillages; catering and industrial laundry equipment. They have ball bearing wheels and a welded steel fork with a fully hardened double headset bearing.

Where this product is used

• General and stock picking trolleys
• Dollies and stillages
• Catering and industrial laundry equipment

Features

• Puncture proof wheel in 220 and 265mm
• Load capacity 100kg to 125kg per castor
• Rugged welded steel construction with a fully hardened double headset bearing
• Ball bearing wheels
• Puncture proof, flat free wheel

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
