Euroboor IBC.70 6.35 x 77mm Ejection Pilot Pin

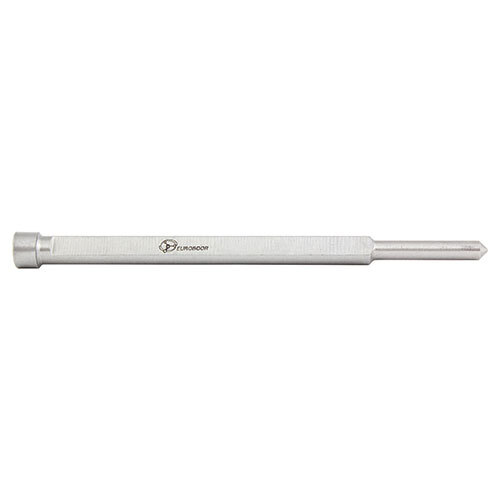

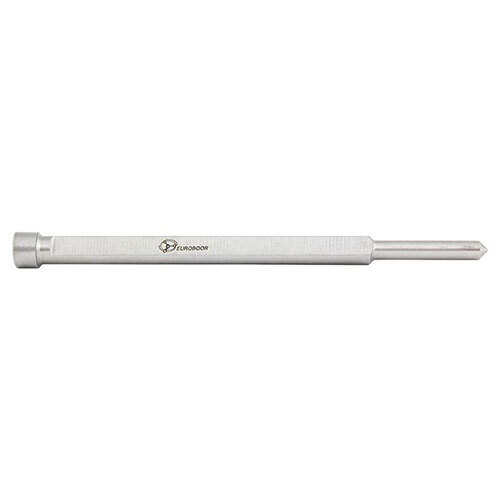

Euroboor ejection pilot pins centre an annular cutter, control the oil flow and eject the slug (manufacturer-stated). There are 10 pins, 6.35mm (1/4") or 8mm (5/16") in diameter and from 77mm to 252mm long.

Euroboor states that pilot pins are essential for the use of annular cutters: the pin locks off the oil flow while the machine is at a standstill, is pushed into the machine when drilling starts so that oil flows into the cutter for cooling and lubricating, and pushes the slug out when the cutter is through the material, by means of a strong spring inside the magnetic drilling machine (manufacturer-stated).

Use the pin the catalogue lists for your cutter: the table below shows the pilot pin for each cutter series and size. IBC.75, IBC.100, IBC.130, IBC.140 and IBC.150 are listed in the catalogue pilot pin range but are not assigned to a cutter series in the cutter tables. IBC.100R, which the catalogue lists for the 12mm to 14mm TCT cutters, is not.

Where this product is used

• Centring an annular cutter on a magnetic drilling machine
• Ejecting the slug from the cutter once the hole is through
• Controlling the oil flow to the cutter

Features

• Positions the cutter precisely (manufacturer-stated)
• Locks off oil flow at a standstill and permits flow when drilling starts (manufacturer-stated)
• Ejects the slug with the spring inside the magnetic drilling machine (manufacturer-stated)
• 6.35mm (1/4") and 8mm (5/16") diameters (manufacturer-stated)
• Lengths from 77mm to 252mm (manufacturer-stated)

Common specifications

Pilot pin by cutter series and size (catalogue)

Key specifications

Pin diameters and lengths are from the Euroboor catalogue pilot pin range; the cutter match is from the catalogue cutter tables (manufacturer-stated).

Selecting the right option

Match the pin to the cutter using the cutter table above, then check the diameter and length in the variant table: the 6.35mm pins are IBC.70, IBC.75, IBC.90 and IBC.K50, and the 8mm pins are IBC.80, IBC.85, IBC.100, IBC.130, IBC.140 and IBC.150. The cutter pages are HSS 30mm depth of cut, HSS 55mm depth of cut, TCT 35mm depth of cut and TCT 55mm depth of cut.

Related products

See also the Euroboor annular cutters on the HSS 30mm depth of cut and TCT 55mm depth of cut pages and the MT2 arbor and MT3 arbor for connecting a Weldon cutter to a drilling machine.
