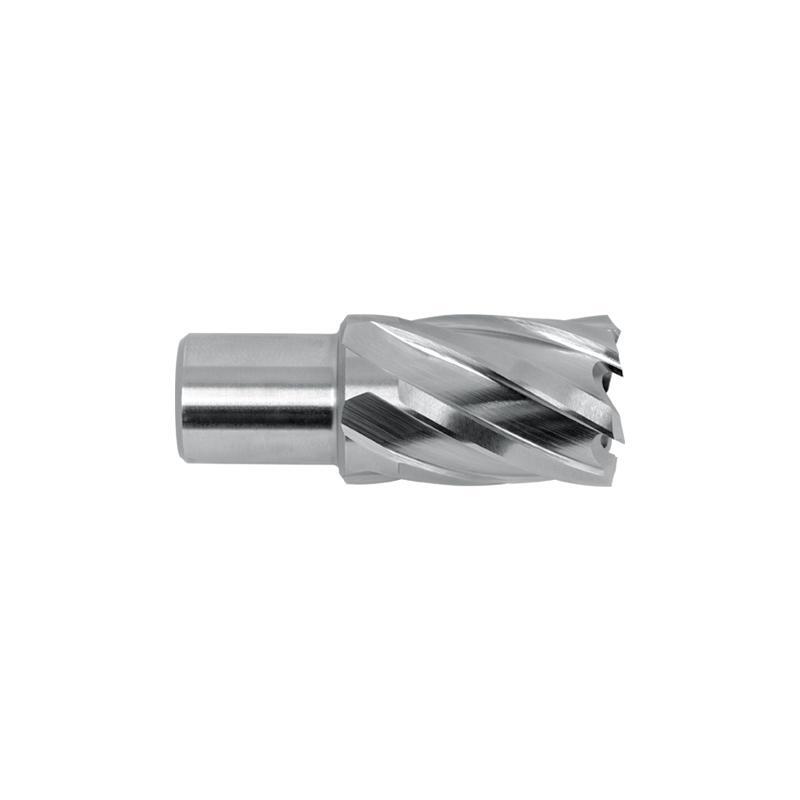

Euroboor HSS black oxide annular cutters, 13

Euroboor 30mm depth of cut annular cutters are high speed steel (HSS) cutters with a black oxide finish and a 19.05mm (3/4") Nitto/Weldon shank, for use on magnetic drilling machines. There are 53 sizes from 12mm to 65mm diameter.

Every size has a 30mm depth of cut, so the depth of cut limits how thick a section the cutter can cut through. Its HSS annular cutters are made from M2 high speed steel grade, with the wall thickness and the number of flutes and teeth matched to the cutter diameter.

Where this product is used

• Drilling holes in steel plate on a magnetic drilling machine
• Drilling holes in steel pipe
• Drilling copper, aluminium and plastic in plate or pipe form
• Standard fabrication and construction drilling

Features

• HSS cutter with a tempered black oxide finish
• 30mm depth of cut in sizes from 12mm to 65mm diameter
• 19.05mm (3/4") Nitto/Weldon shank, multi-fit
• Pilot pin IBC.70 (6.35 x 77mm) for every size
• Alternate tooth geometry
• M2 high speed steel grade

Key specifications

Choosing the right option

Euroboor's material table marks HSS cutters as optimal for steel below 750N and for plastics, and TCT cutters as optimal for steel below 1400N, stainless steel, aluminium and exotic materials such as Inconel, Nimonic, Hardox and Hastelloy, so for harder work see the 35mm depth of cut TCT cutters or the 55mm depth of cut TCT cutters. Every size takes the IBC.70 pilot pin from the Euroboor ejection pilot pin range.

See also: Euroboor ejection pilot pins, MT2 arbor, MT3 arbor.
