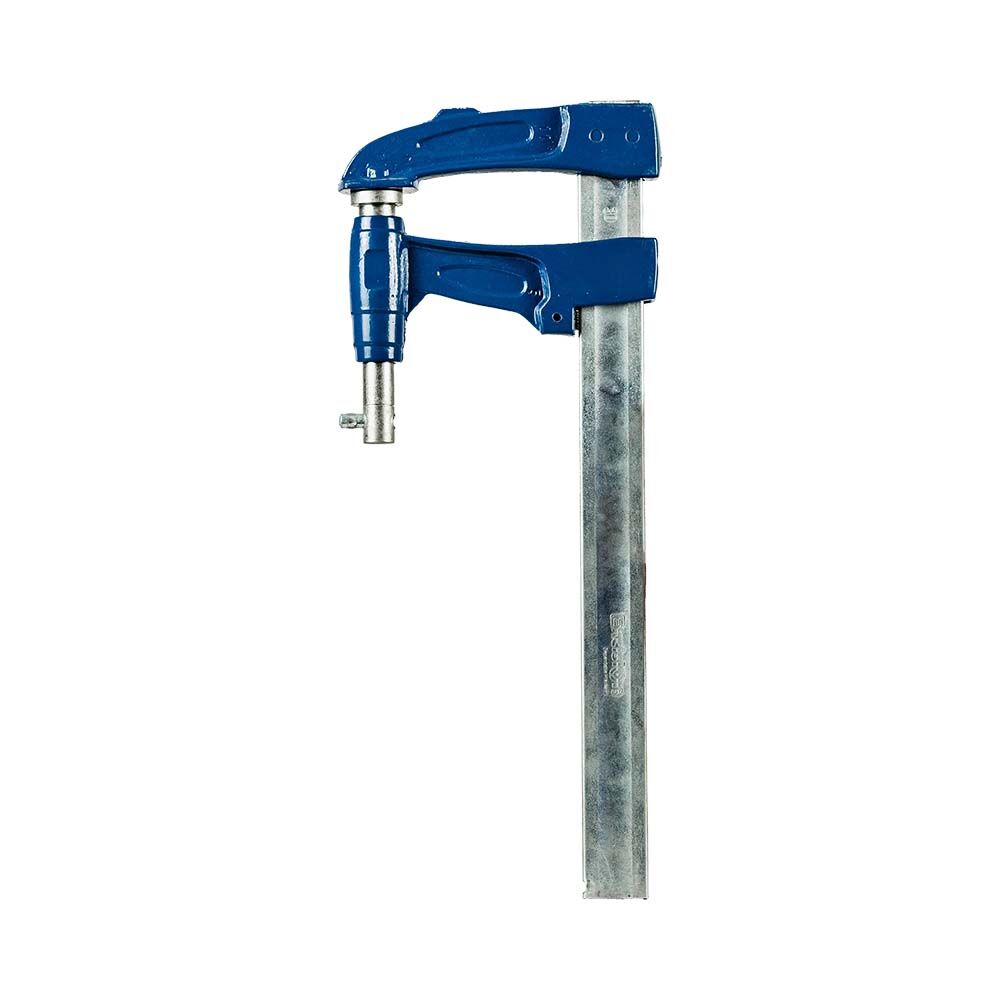

Excision 321800120 FX Xtreme Clamp 800mm x 120mm

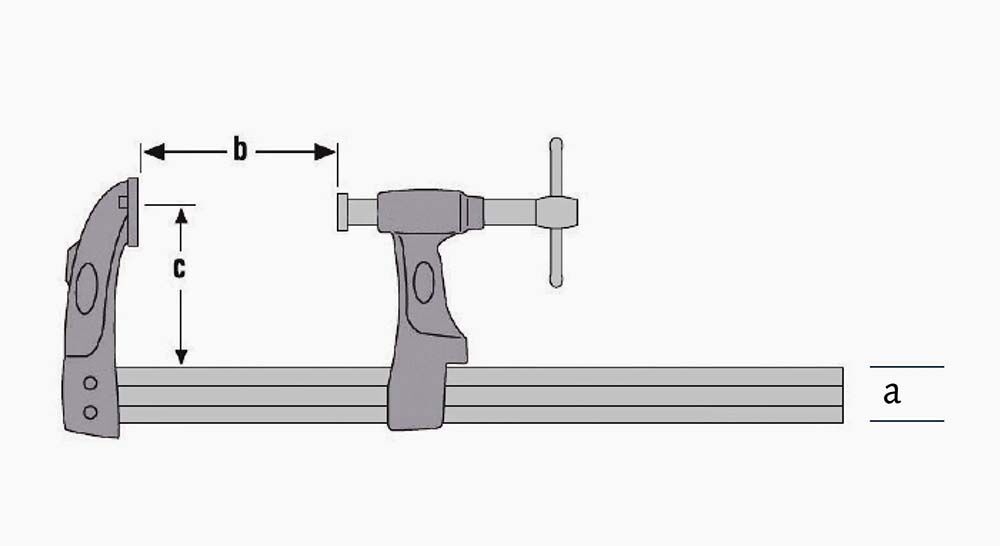

Excision FX Xtreme clamps are heavy duty industrial clamps in nine sizes: bar openings from 200mm to 1200mm with a 120mm jaw depth, and 400mm and 600mm openings with a 140mm jaw depth. Part codes follow the pattern 321, bar opening and jaw depth, so 321200120 is the 200mm opening with 120mm jaw depth.

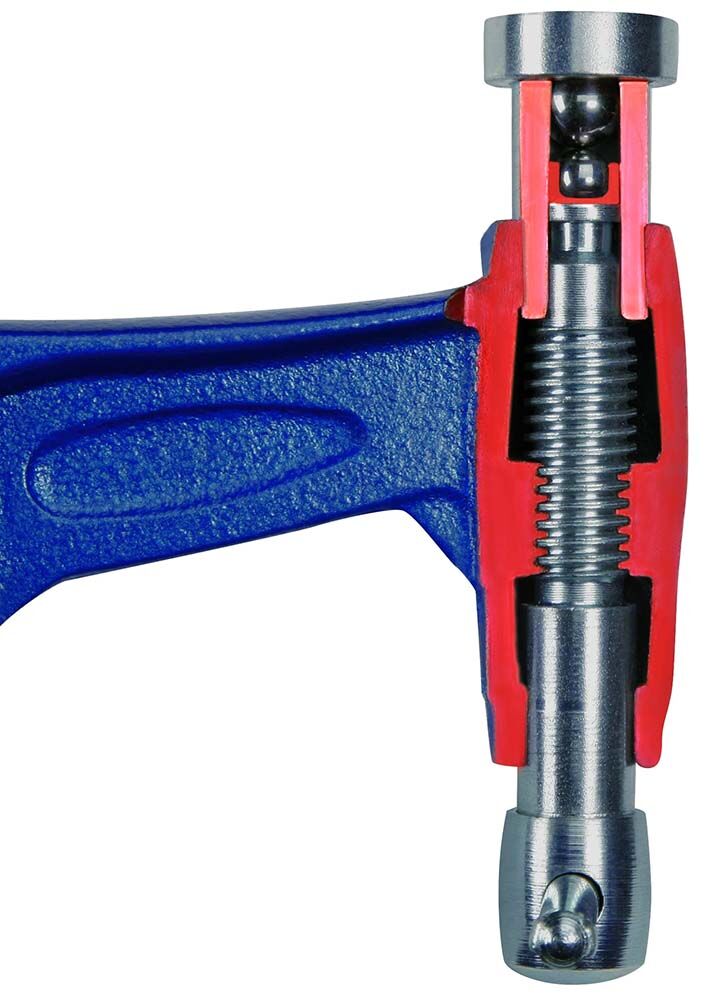

An internal ball bearing mechanism and a trapezoidal thread that is totally sealed and permanently lubricated give powerful clamping force with less effort, and a hardened steel bar brake holds the clamp. They suit all environments and applications including welding, working with fluids, and humid or salty atmospheres. Made in Spain.

Where this product is used

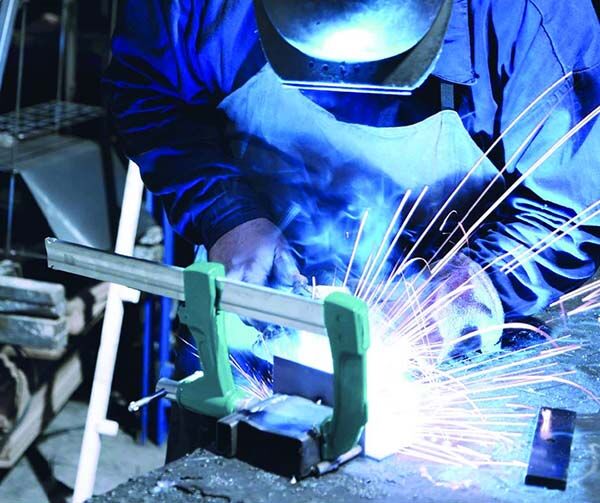

• Welding and fabrication
• Working with fluids
• Humid or salty atmospheres

Features

• Powerful clamping force with less effort
• High precision clamping
• Hardened steel bar brake
• Trapezoidal thread, totally sealed and permanently lubricated
• Internal ball bearing mechanism with no resistance
• Made in Spain

Key specifications

Choosing the right option

Choose the bar opening that spans the work, then the jaw depth: the 120mm jaw depth sizes are 1200kg and the 140mm sizes are 1800kg. For a clamp with a folding handle see the FX Xtreme clamp with folding handle, for an earthing contact plate see the EX Earth Xtreme clamp, and for pliers see the Xtreme GripLox Original pliers.
