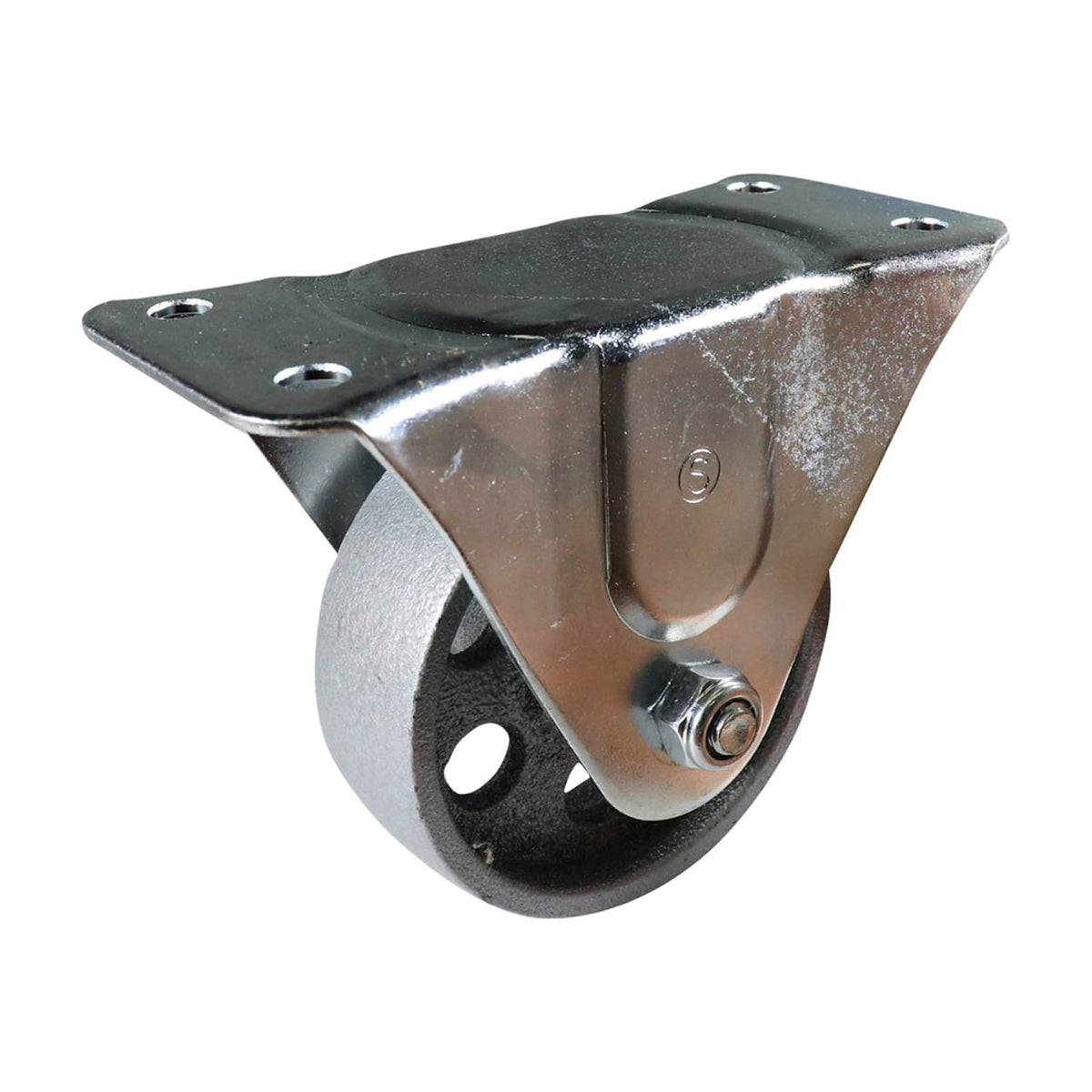

EasyRoll i2 series fixed plate castor, 55 / 50
Available
The EasyRoll I2 series fixed plate castor is fitted with a cast iron wheel and is available in 50, 75 and 100mm wheel diameters. Load capacity is 55kg to 225kg per castor depending on the wheel size.
The I2 series is suited to industrial and mechanical equipment, work benches and dollies. It has single headset bearing.
Where this product is used
- Industrial and mechanical equipment
- Work benches
- Dollies
- Engine hoists and jacks
- Tool boxes
- Workshop equipment
Features
- Cast iron wheel in 50, 75 and 100mm
- Load capacity 55kg to 225kg per castor
- Cast iron wheels with high load capacities and abrasion resistance
- Large diameter headset bearing for strength with a low overall height
- No plastic components, which suits high temperature applications
- Domed wheel design reduces rolling and swivel resistance
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | I2 |
| Mounting | Fixed plate |
| Brake | No brake |
| Wheel | Cast Iron wheel |
| Wheel diameter | 50, 75 and 100mm |
| Tread width | 21mm to 32mm |
| Load capacity per castor | 55kg to 225kg |
| Overall height | 64mm to 127mm |
| Bearings | Single headset bearing |
Choosing the right option
A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Cast iron wheels: poor shock absorbency and floor protection, excellent load capacity, push effort and durability. It suits oven floors, outdoor or unsealed surfaces and broken glass, is the best choice for high temperature and may damage flooring. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
See also: EasyRoll I2 Series Swivel Plate Castor - Cast Iron Wheel, EasyRoll J7 Series Fixed Plate Castor - Cast Iron (Plain Bearing) Wheel, Black, EasyRoll G6 Series Fixed Plate Castor - Urethane Wheel, Grey, 150mm.
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) | Plate size (mm) | Hole centres (mm) |
|---|---|---|---|---|---|---|---|

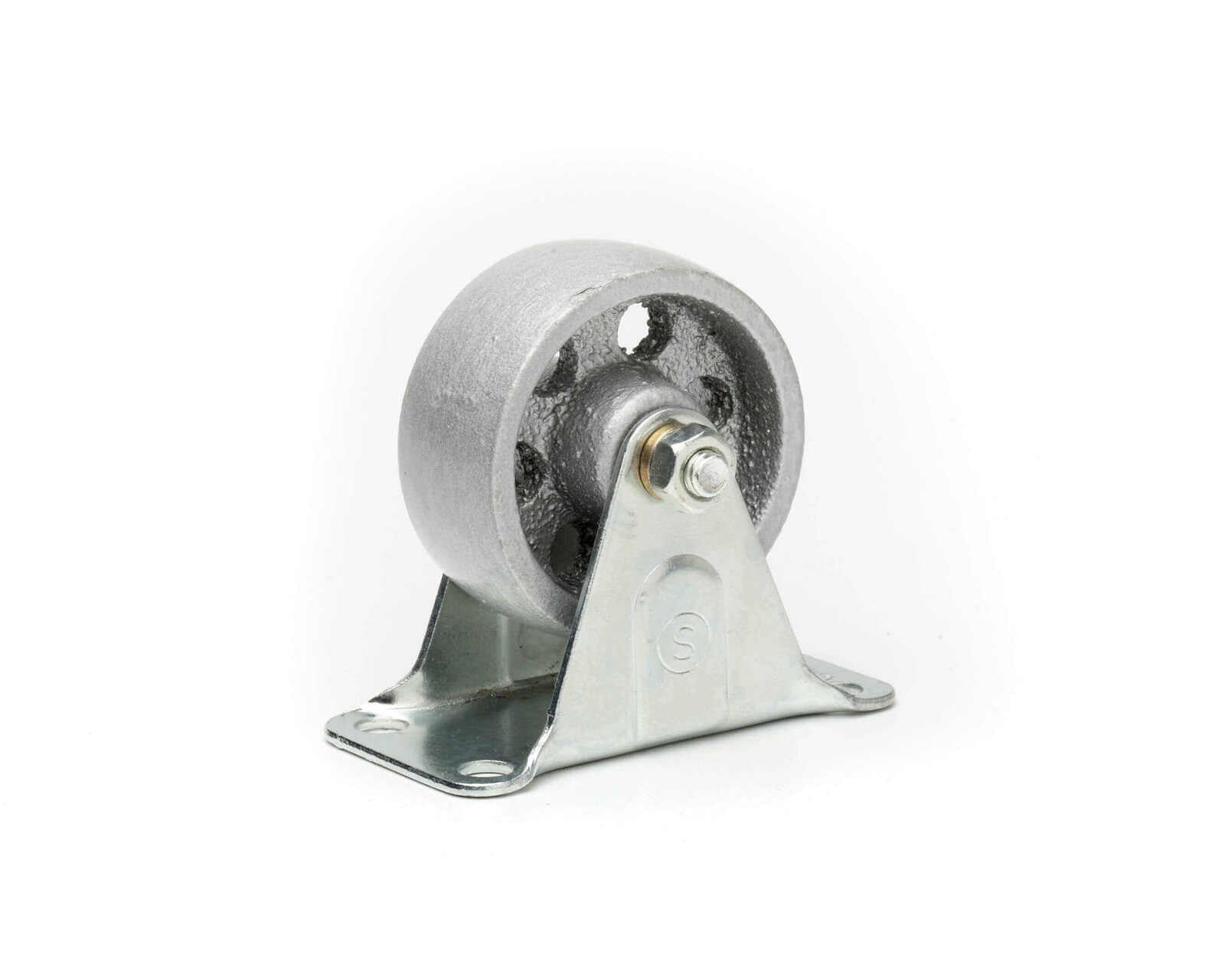

| 50mm | I23A16G50 | 50 | 21 | 55 | 64 | 68 x 38 | 54 x 24 |

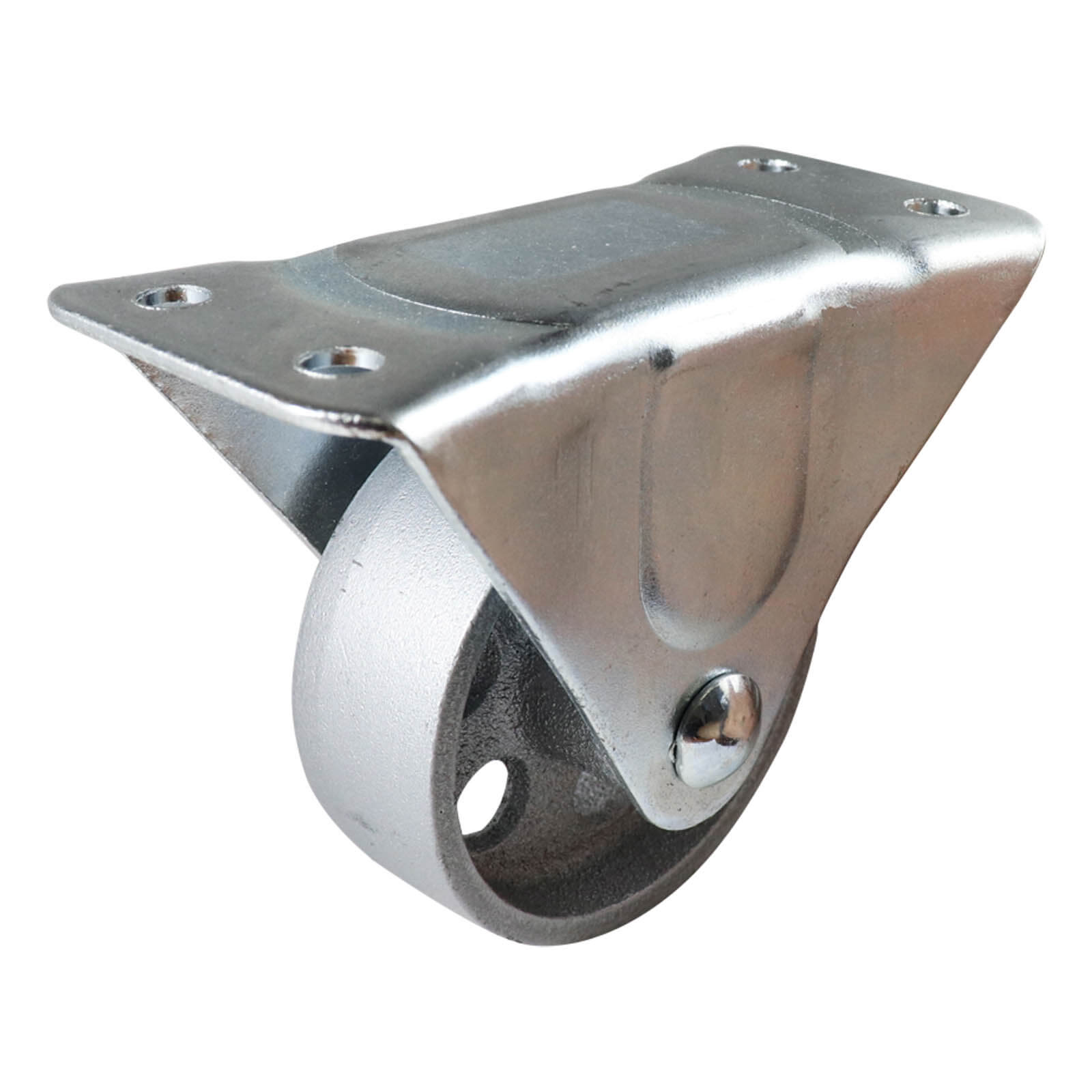

| 75mm | I23A16G75 | 75 | 28 | 115 | 95 | 123 x 63 | 102 x 30 |

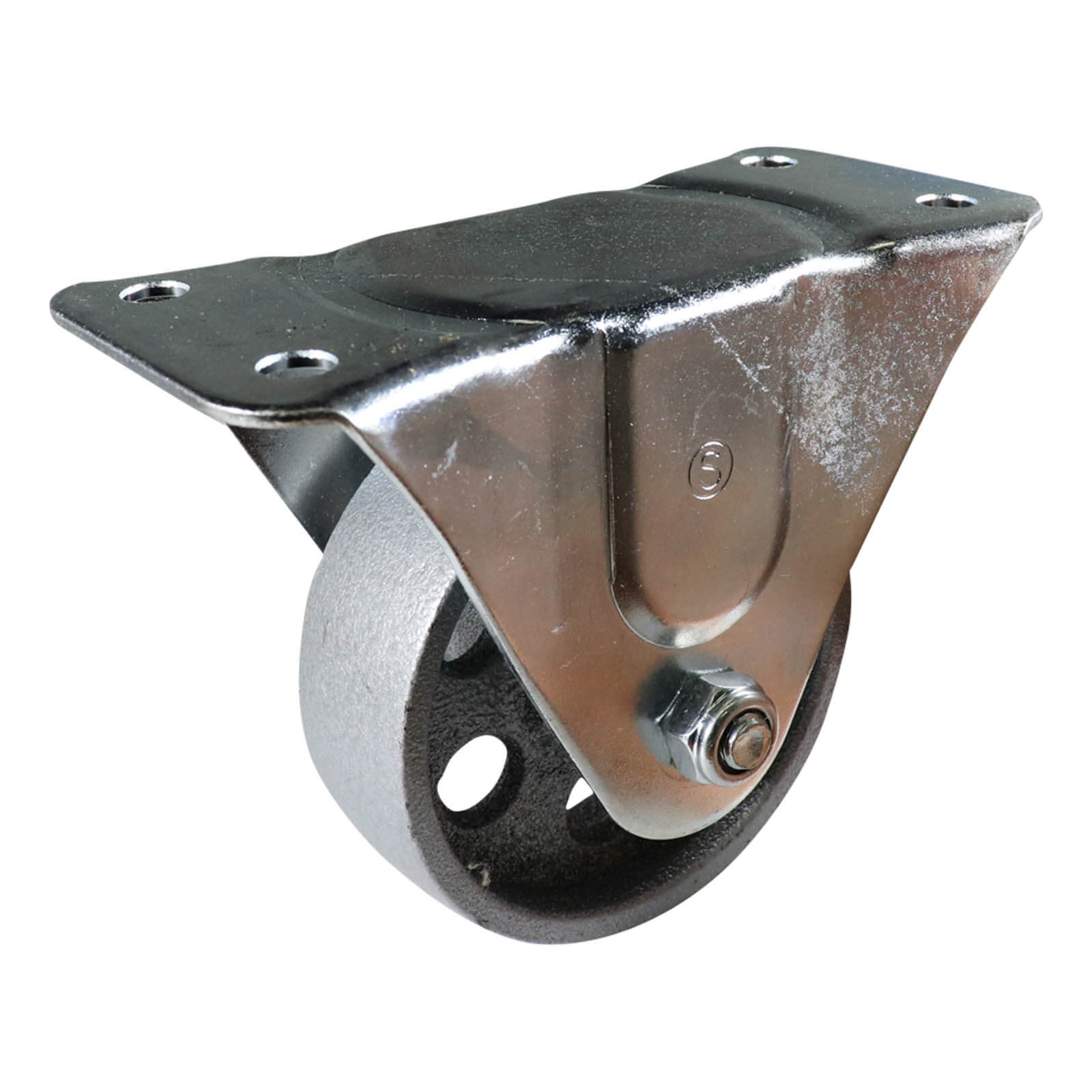

| 100mm | I23A16G100 | 100 | 32 | 225 | 127 | 157 x 80 | 127 x 45 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
EasyRoll I2 Series Fixed Plate Castor - Cast Iron Wheel: 55 / 50
SKU: A0048047 | Model: I23A16G50
EasyRoll I23A16G50: i2 series fixed plate castor, 55 / 50. Load Capacity (kg): 55. Tyre/Wheel Material: Cast Iron.
