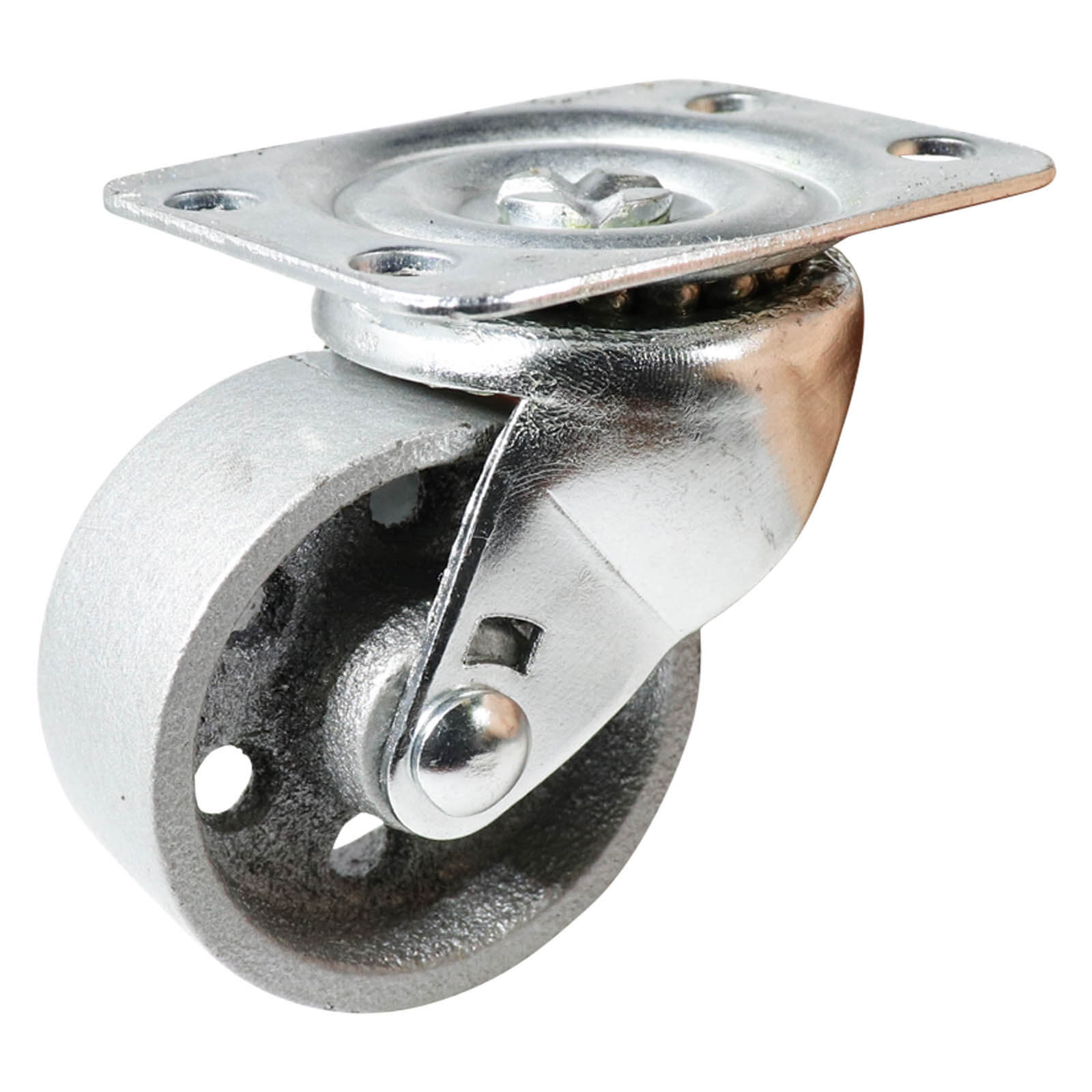

EasyRoll I2 Swivel Plate Castor, Cast Iron 50 mm | I22A16G50

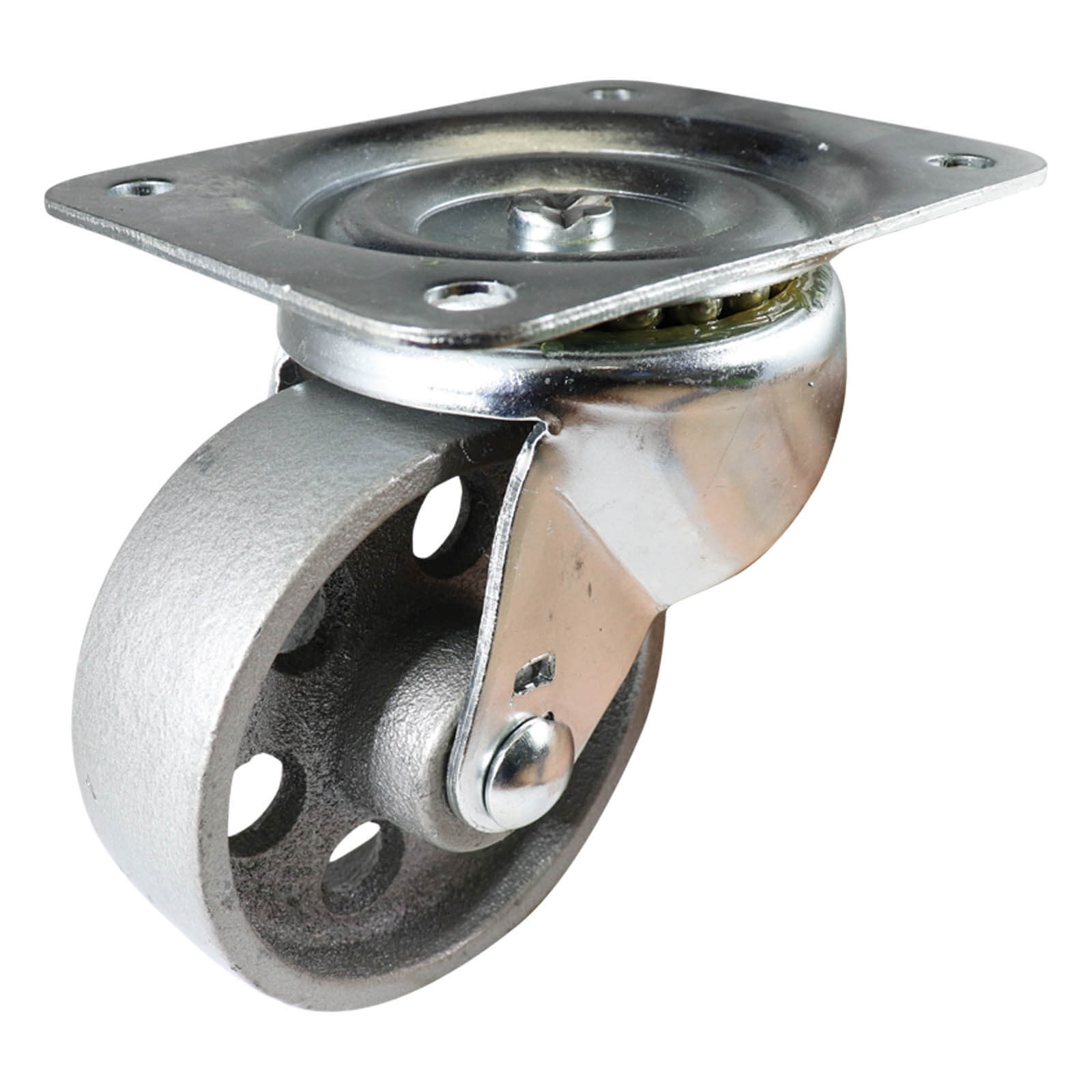

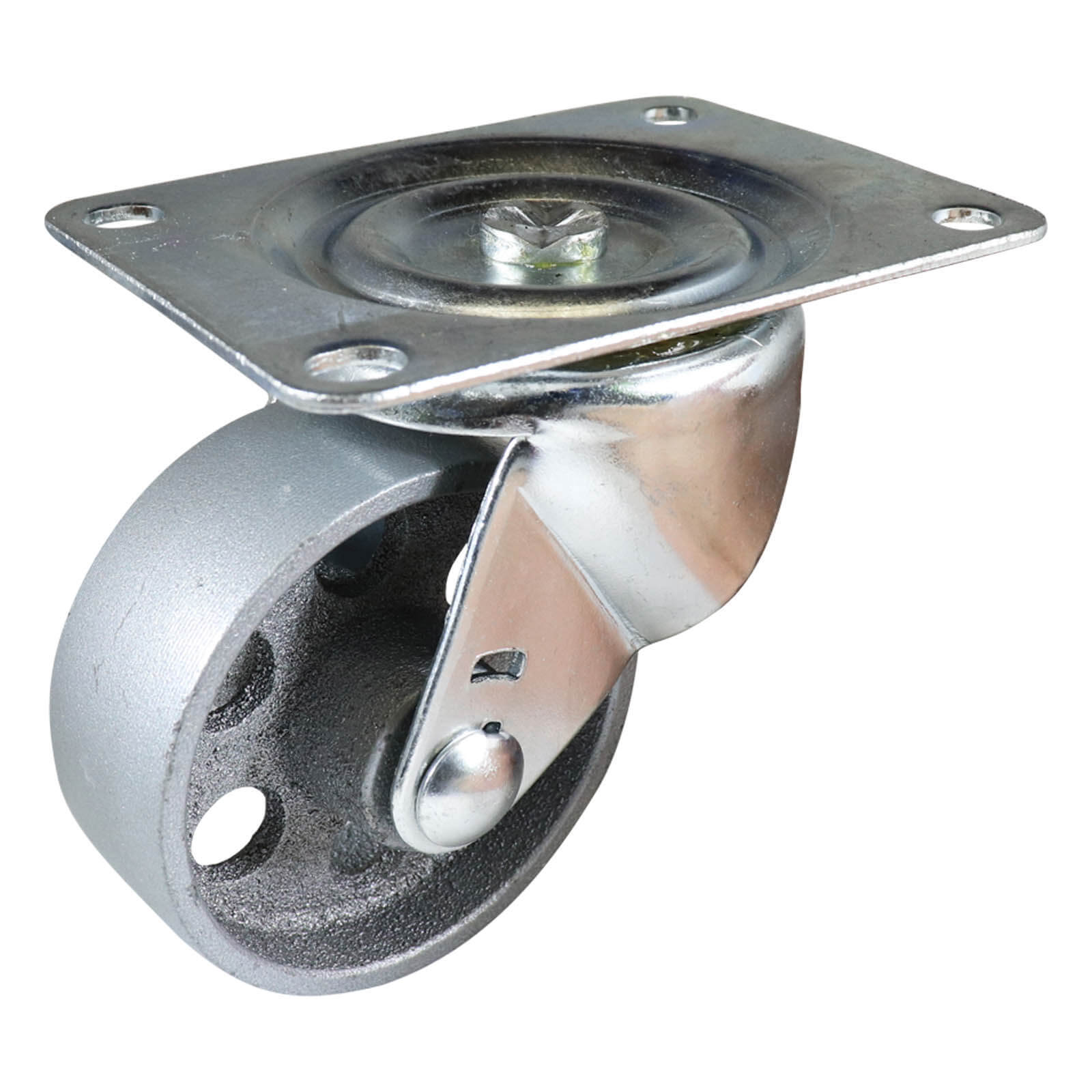

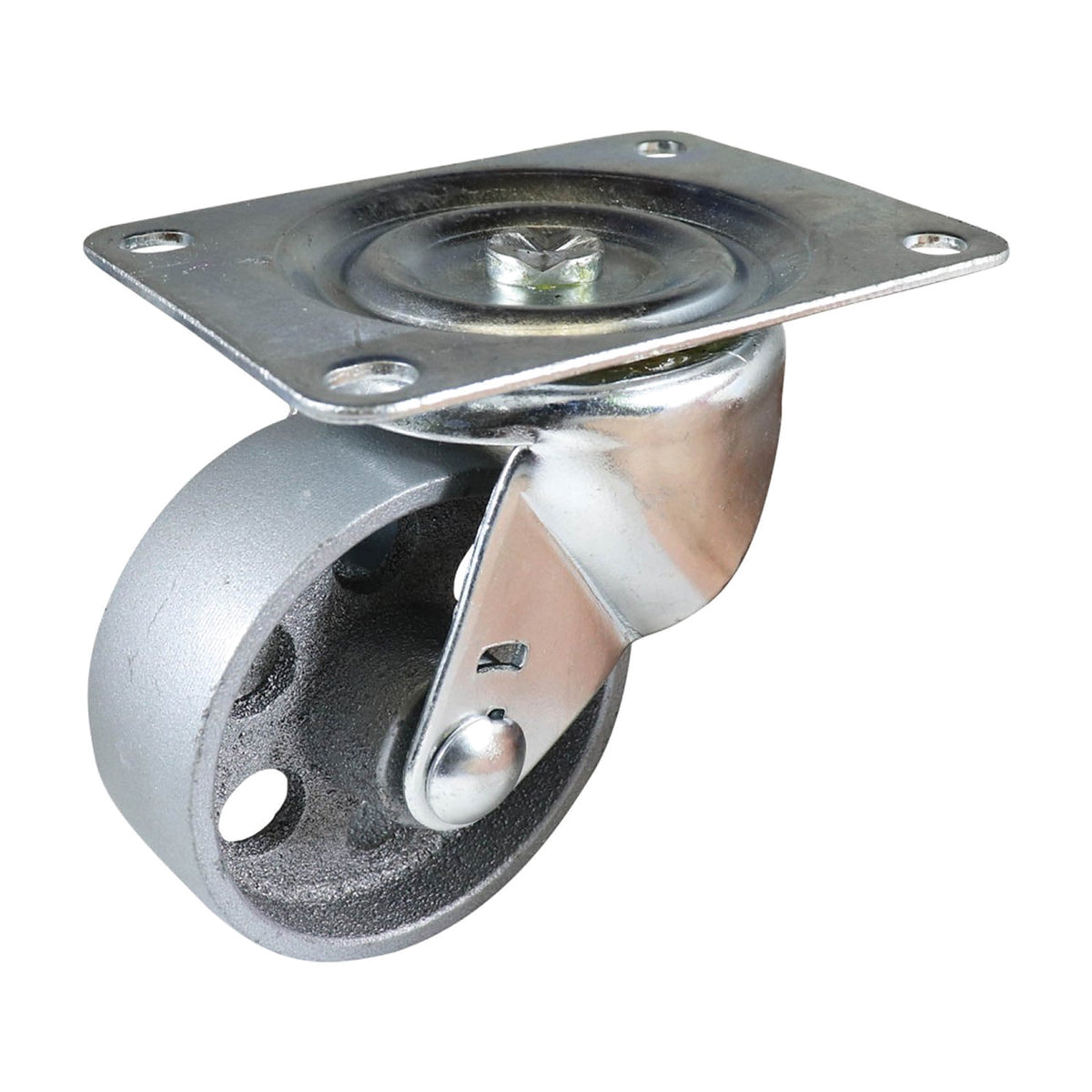

The EasyRoll I2 series swivel plate castor is fitted with a cast iron wheel and is available in 50, 75 and 100 mm wheel diameters. Load capacity is 55 kg to 225 kg per castor depending on the wheel size. Plate size and hole centres vary with wheel size and are listed in the table below.

The I2 series is suited to industrial and mechanical equipment; work benches; and dollies. It has single headset bearing.

Where this product is used

• Industrial and mechanical equipment
• Work benches
• Dollies
• Engine hoists and jacks
• Tool boxes
• Workshop equipment

Features

• Cast iron wheel in 50, 75 and 100 mm
• Load capacity 55 kg to 225 kg per castor
• Cast iron wheels with high load capacities and abrasion resistance
• Large diameter headset bearing for strength with a low overall height
• No plastic components, which suits high temperature applications
• Domed wheel design reduces rolling and swivel resistance

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates cast iron wheels as follows: poor shock absorbency and floor protection, excellent load capacity, push effort and durability. It suits oven floors, outdoor or unsealed surfaces and broken glass, is the best choice for high temperature and may damage flooring. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
