EasyRoll i4 series fixed plate castor I43A64B100
Available
The EasyRoll I4 series fixed plate castor is fitted with a polyurethane wheel and is available in 100 and 125mm wheel diameters. Load capacity is 100kg to 150kg per castor depending on the wheel size. The top plate is 100 x 84mm with hole centres of 80 x 60mm.
The I4 series is suited to general trolleys, dollies and stillages and heavy capacity shopfittings. It has double headset bearings and a bright zinc finish.
Where this product is used
- General trolleys
- Dollies and stillages
- Heavy capacity shopfittings
- Medical equipment
- Catering equipment
- Roll pallets
Features
- Polyurethane wheel in 100 and 125mm
- Load capacity 100kg to 150kg per castor
- General purpose industrial castor that is simple, reliable and economical
- Double headset bearings for added strength
- Bright zinc finish
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | I4 |
| Mounting | Fixed plate |
| Brake | No brake |
| Wheel | Polyurethane wheel |
| Wheel diameter | 100 and 125mm |
| Tread width | 32mm |
| Load capacity per castor | 100kg to 150kg |
| Overall height | 128mm to 152mm |
| Plate size | 100 x 84mm |
| Hole centres | 80 x 60mm |
| Bearings | Double headset bearings |
| Finish | Bright zinc |
Choosing the right option
A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Polyurethane wheels: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. It is the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
See also: EasyRoll I4 Series Swivel Plate Castor - Polyurethane Wheel, EasyRoll I4 Series Swivel Plate Castor with Brake - Polyurethane Wheel, EasyRoll I4 Series Fixed Plate Castor - Rubber Wheel, Grey, EasyRoll I4 Series Fixed Plate Castor - Polypropylene Wheel, Black.
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) |
|---|---|---|---|---|---|

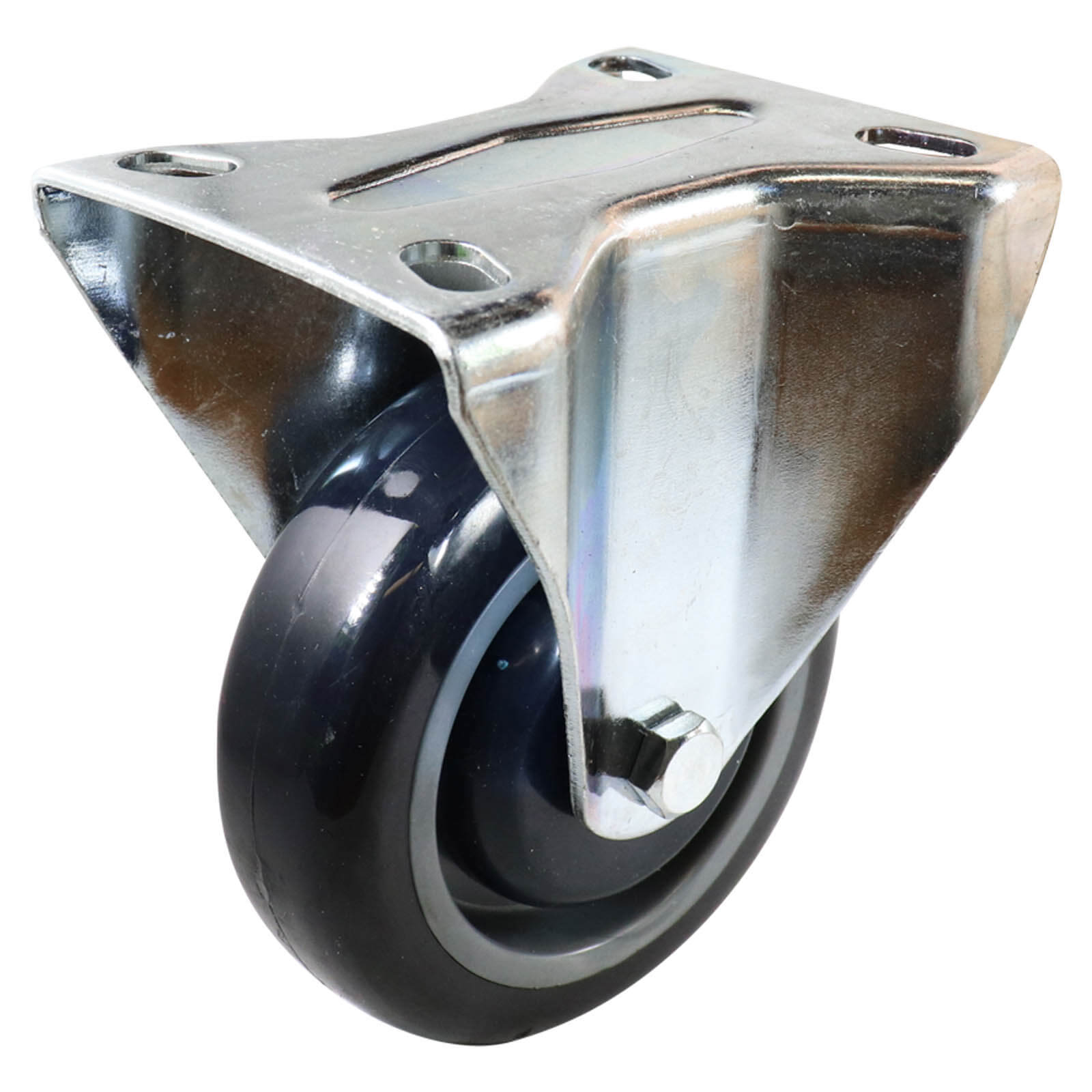

| 100mm | I43A64B100 | 100 | 32 | 100 | 128 |

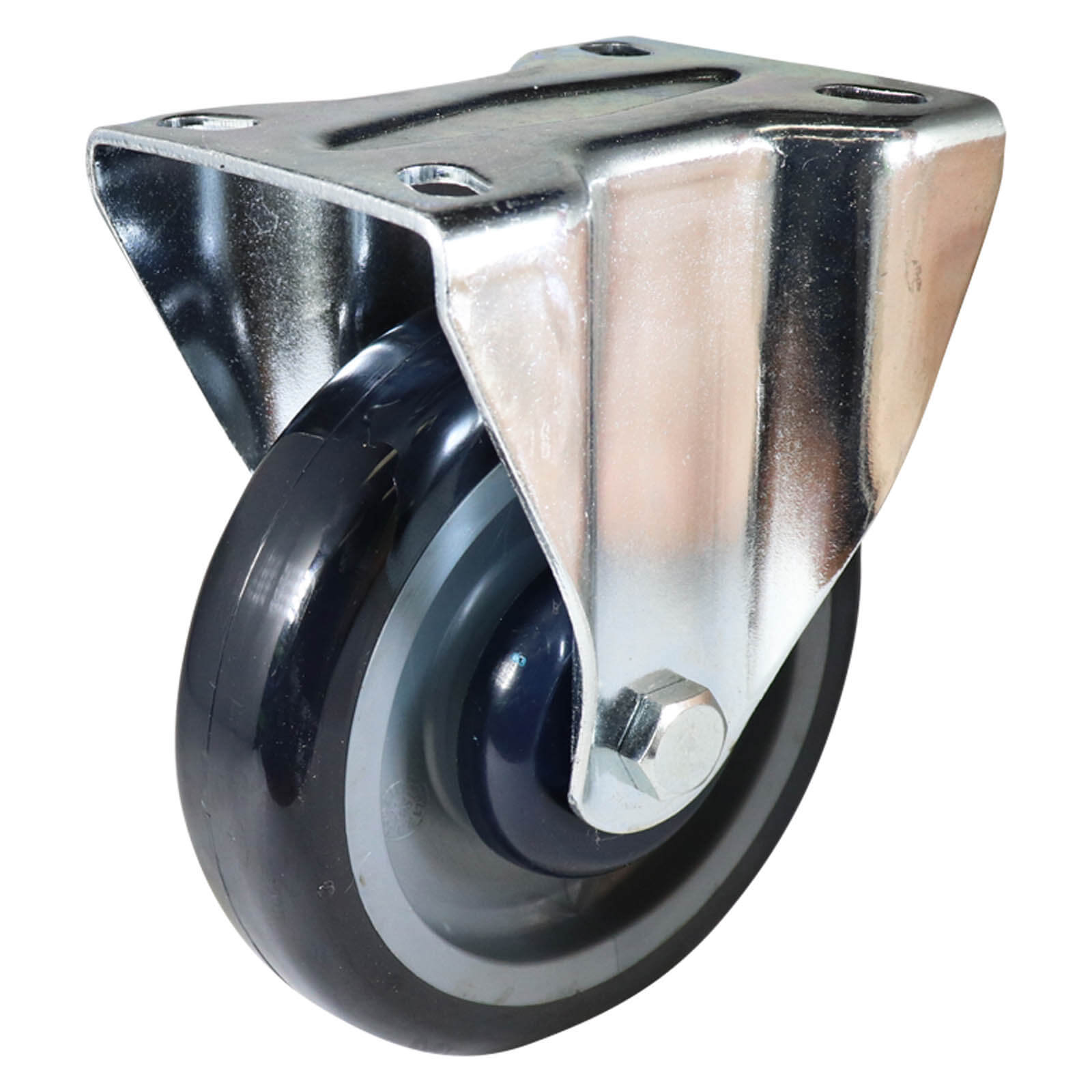

| 125mm | I43A64B125 | 125 | 32 | 150 | 152 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
EasyRoll I4 Series Fixed Plate Castor - Polyurethane Wheel: 100
SKU: A0049311 | Model: I43A64B100
EasyRoll I43A64B100: i4 series fixed plate castor, wheel diameter (mm) 100. Load Capacity (kg): 100. Tyre/Wheel Material: Urethane.
