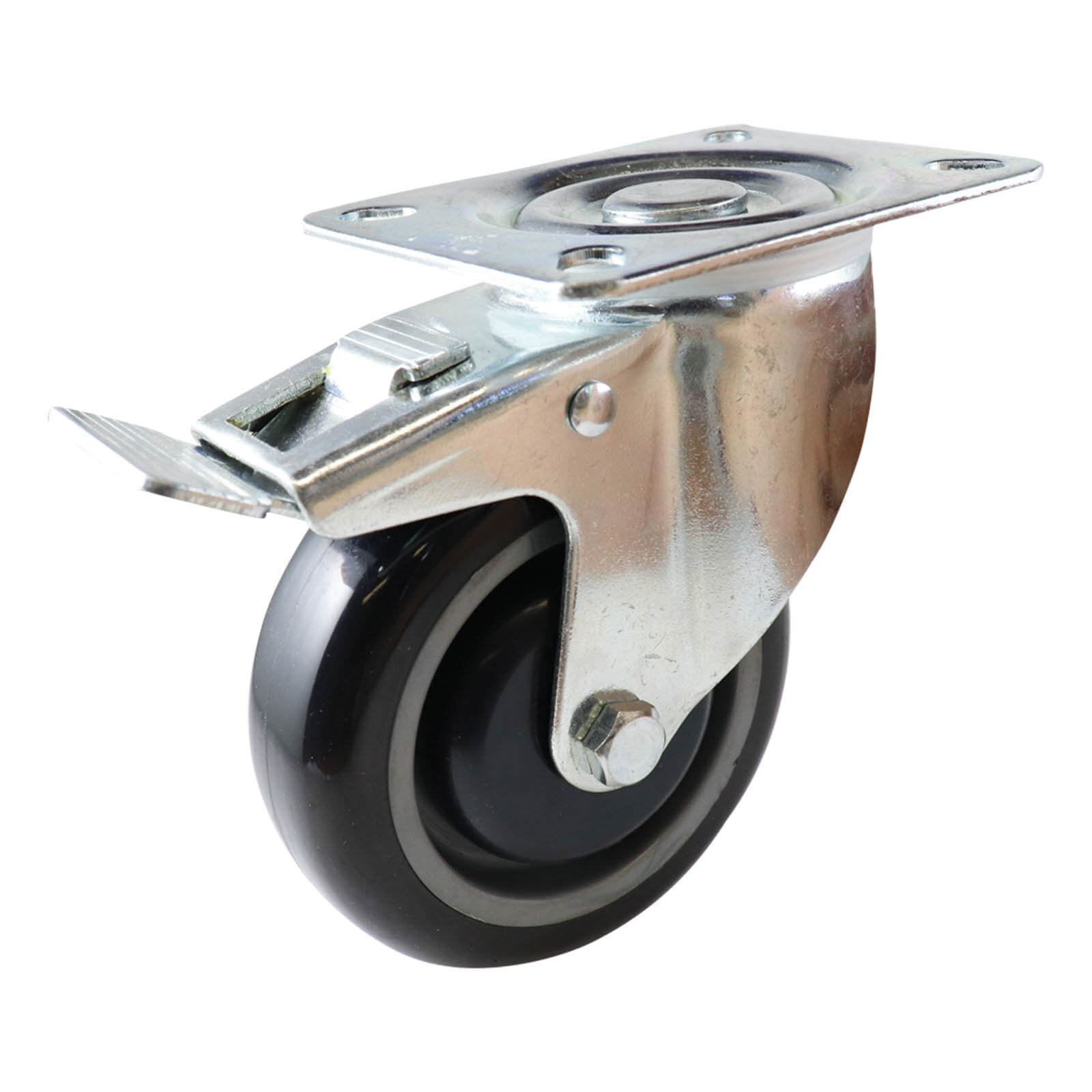

EasyRoll I4 Swivel Plate Castor with Brake, Polyurethane 100 mm | I42T64B100

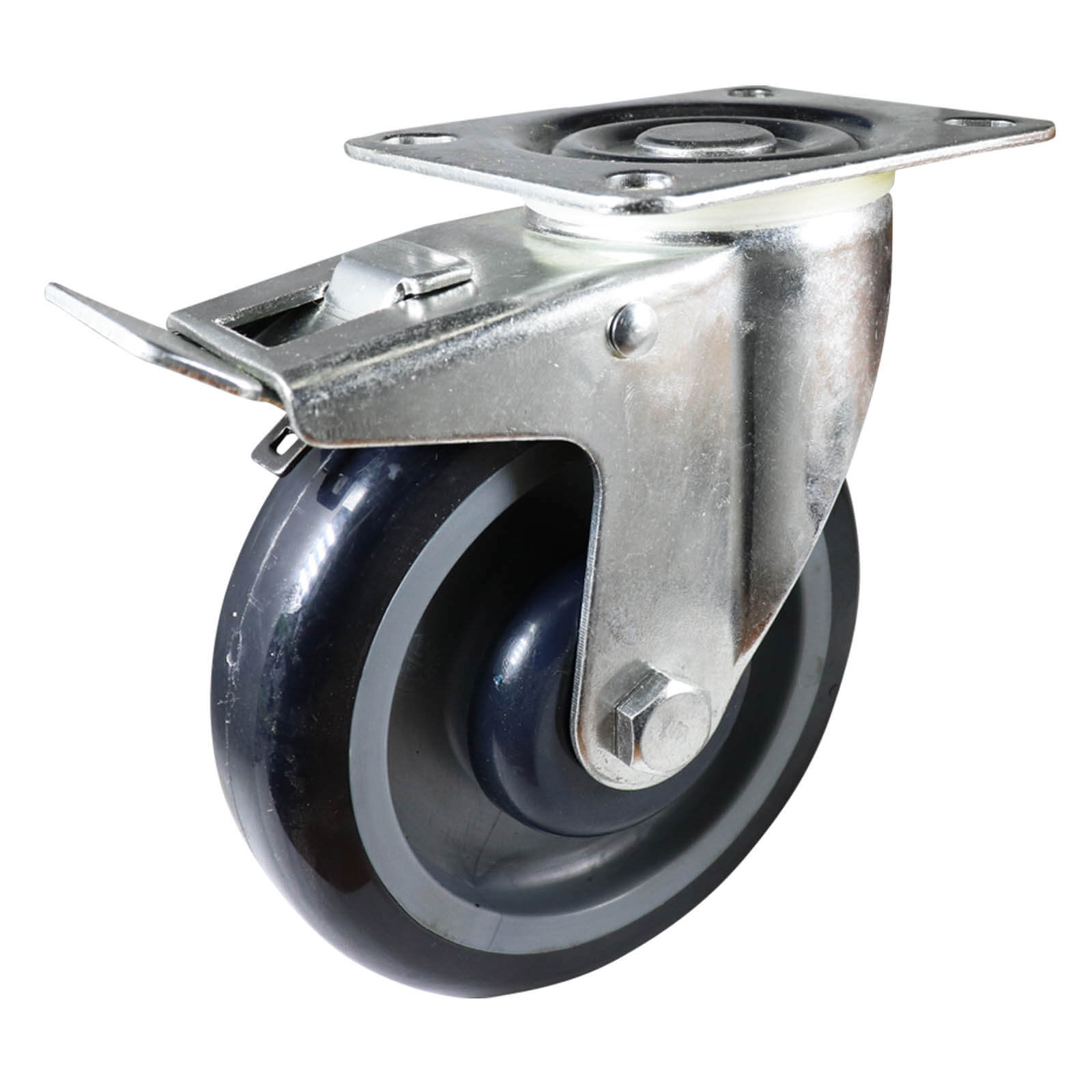

The EasyRoll I4 series swivel plate castor with brake is fitted with a polyurethane wheel and is available in 100 and 125 mm wheel diameters. Load capacity is 100 kg to 150 kg per castor depending on the wheel size. The top plate is 100 x 80 mm with hole centres of 80 x 60 mm.

The I4 series is suited to general trolleys; dollies and stillages; and heavy capacity shopfittings. It has double headset bearings and a bright zinc finish.

Where this product is used

• General trolleys
• Dollies and stillages
• Heavy capacity shopfittings
• Medical equipment
• Catering equipment
• Roll pallets

Features

• Polyurethane wheel in 100 and 125 mm
• Load capacity 100 kg to 150 kg per castor
• Total lock brake stops both swivel and wheel rotation
• General purpose industrial castor that is simple, reliable and economical
• Double headset bearings for added strength
• Robust metal brake assembly
• Bright zinc finish

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A total lock brake stops both the swivel action and the wheel rotation, which EHI describes as the safest of all brake types. EHI rates polyurethane wheels as follows: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. EHI describes it as the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
