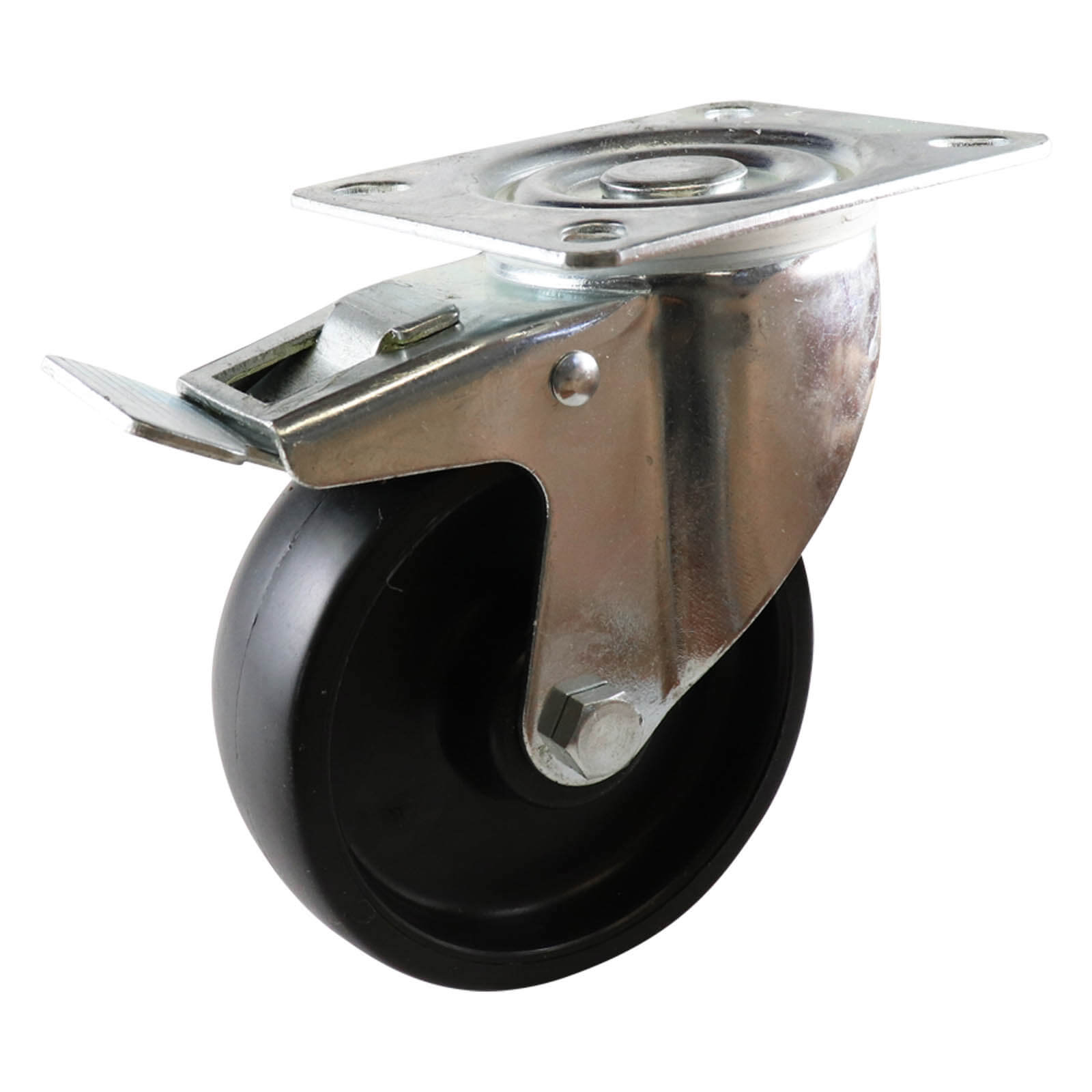

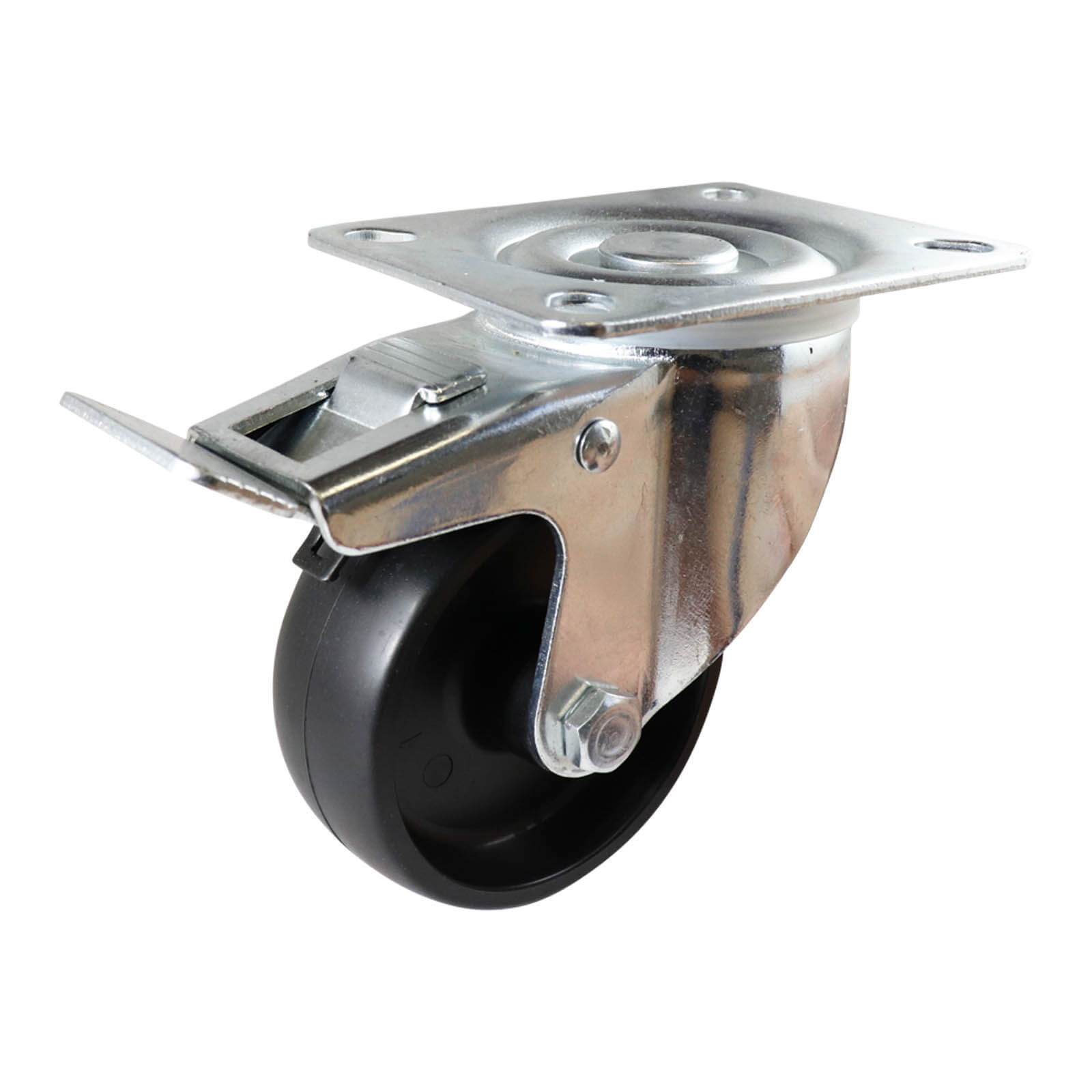

EasyRoll I4 Swivel Plate Castor with Brake, Black Polypropylene 80 mm | I42T00G80

The EasyRoll I4 series swivel plate castor with brake is fitted with a black polypropylene wheel and is available in 80 and 100 mm wheel diameters. Load capacity is 80 kg to 100 kg per castor depending on the wheel size. The top plate is 100 x 80 mm with hole centres of 80 x 60 mm.

The I4 series is suited to general trolleys; dollies and stillages; and heavy capacity shopfittings. It has double headset bearings and a bright zinc finish.

Where this product is used

• General trolleys
• Dollies and stillages
• Heavy capacity shopfittings
• Medical equipment
• Catering equipment
• Roll pallets

Features

• Black polypropylene wheel in 80 and 100 mm
• Load capacity 80 kg to 100 kg per castor
• Total lock brake stops both swivel and wheel rotation
• General purpose industrial castor that is simple, reliable and economical
• Double headset bearings for added strength
• Robust metal brake assembly
• Bright zinc finish

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A total lock brake stops both the swivel action and the wheel rotation, which EHI describes as the safest of all brake types. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
