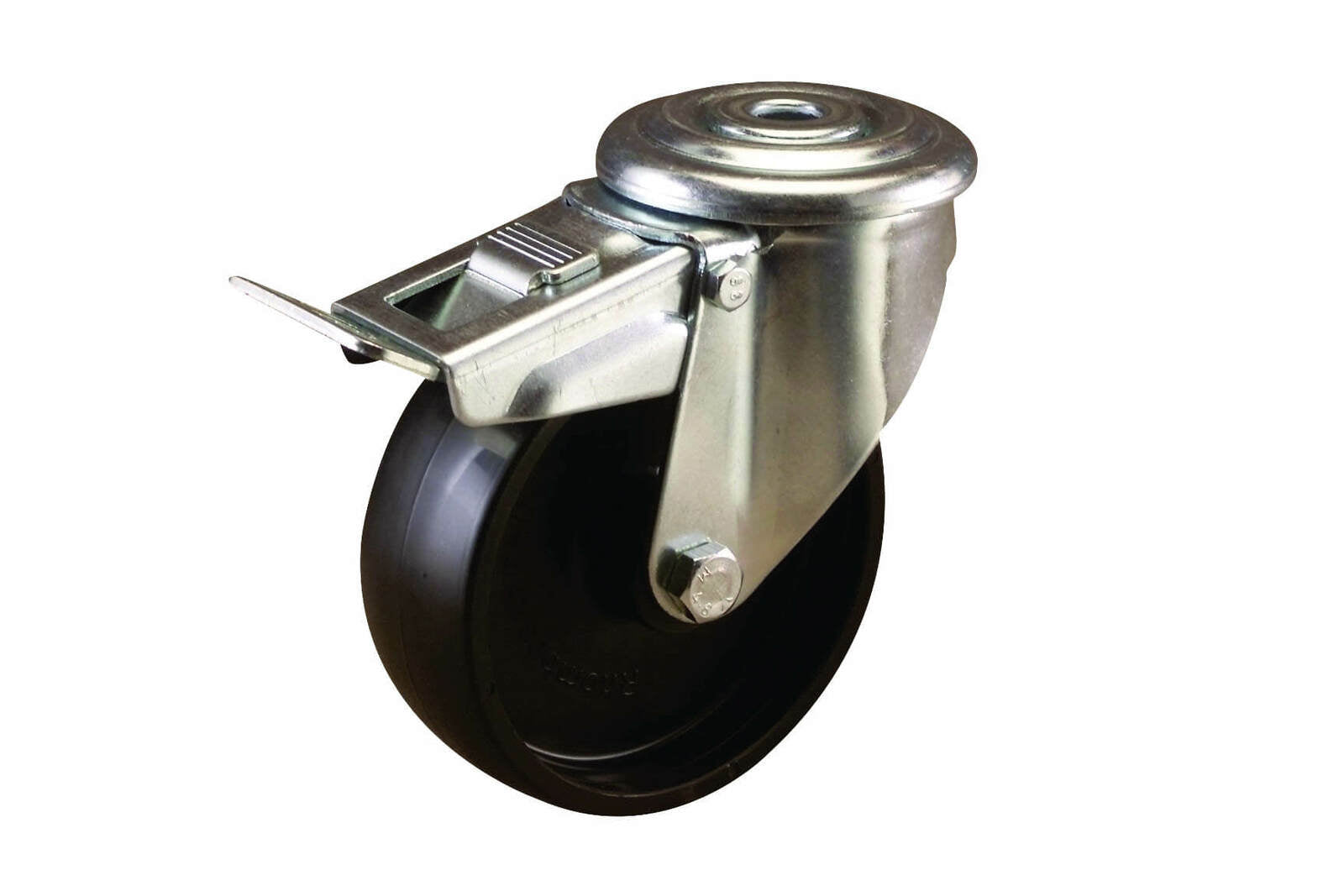

EasyRoll I4 Swivel Bolt Hole Castor with Brake, Polypropylene 80 mm | I41T00G80
Available
The EasyRoll I4 series swivel bolt hole castor with brake is fitted with a black polypropylene wheel and is available in 80 and 100 mm wheel diameters. Load capacity is 80 kg to 100 kg per castor depending on the wheel size. It fits with a single bolt through the top hole.
The I4 series is suited to general trolleys; dollies and stillages; and heavy capacity shopfittings. It has double headset bearings and a bright zinc finish.
Where this product is used
- General trolleys
- Dollies and stillages
- Heavy capacity shopfittings
- Medical equipment
- Catering equipment
- Roll pallets
Features
- Black polypropylene wheel in 80 and 100 mm
- Load capacity 80 kg to 100 kg per castor
- Total lock brake stops both swivel and wheel rotation
- General purpose industrial castor that is simple, reliable and economical
- Double headset bearings for added strength
- Robust metal brake assembly
- Bright zinc finish
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Series | I4 |
| Mounting | Swivel bolt hole |
| Brake | Total lock |
| Wheel | Black Polypropylene wheel |
| Wheel diameter | 80 and 100 mm |
| Tread width | 32 mm to 34 mm |
| Load capacity per castor | 80 kg to 100 kg |
| Overall height | 108 mm to 128 mm |
| Bearings | Double headset bearings |
| Finish | Bright zinc |
Options and part numbers
| Option | Part number | Wheel diameter (mm) | Tread width (mm) | Load capacity (kg) | Overall height (mm) |
|---|---|---|---|---|---|
| 80 mm | I41T00G80 | 80 | 32 | 80 | 108 |
| 100 mm | I41T00G100 | 100 | 34 | 100 | 128 |
Selecting the right option
Check the bolt size and the mounting hole or tube in your equipment before you order. A total lock brake stops both the swivel action and the wheel rotation, which EHI describes as the safest of all brake types. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
Related products
See also EasyRoll I4 Series Swivel Bolt Hole Castor - Polypropylene Wheel, Black, EasyRoll I4 Series Fixed Plate Castor - Polypropylene Wheel, Black, EasyRoll I4 Series Swivel Plate Castor - Polypropylene Wheel, Black and EasyRoll I4 Series Swivel Plate Castor with Brake - Polypropylene Wheel, Black.
