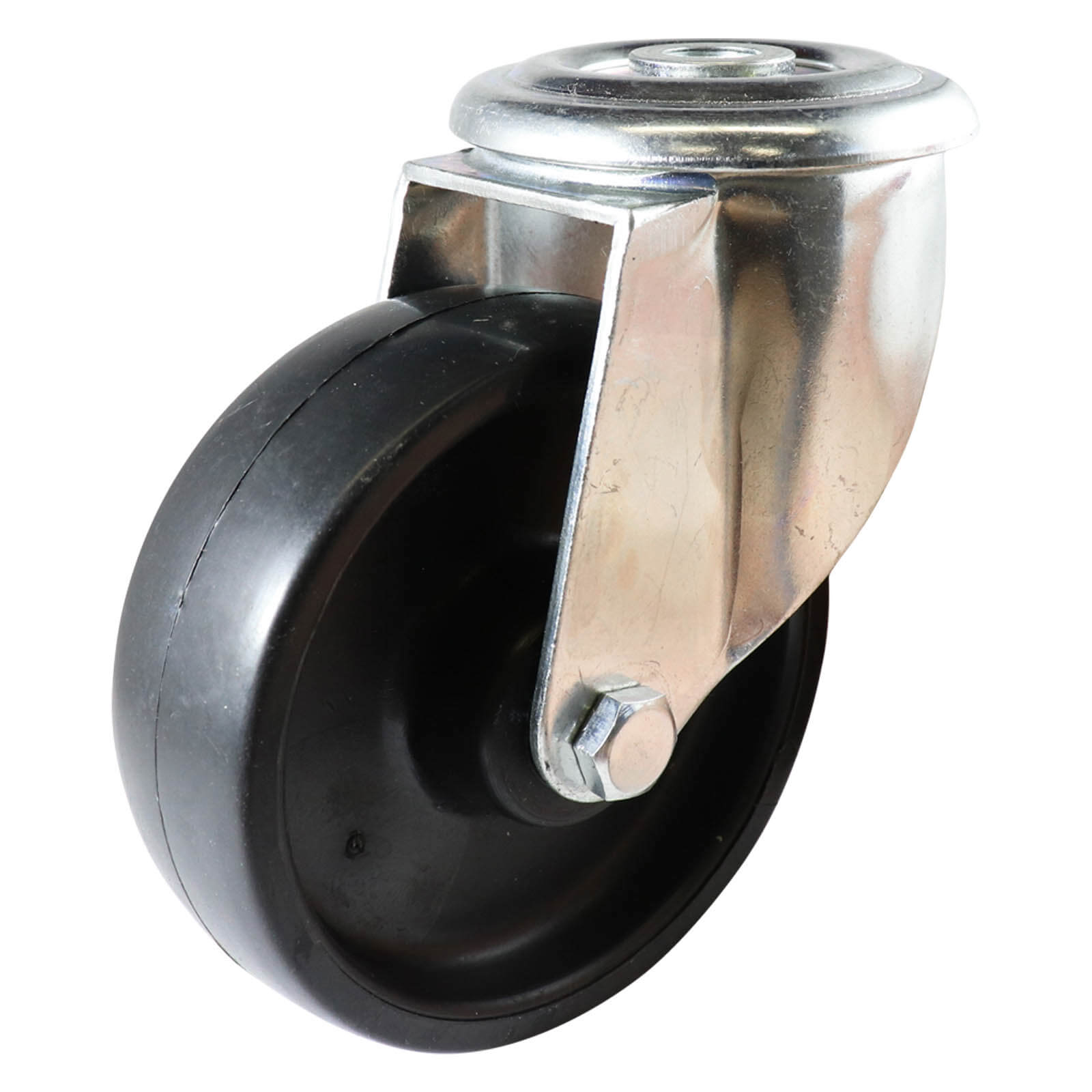

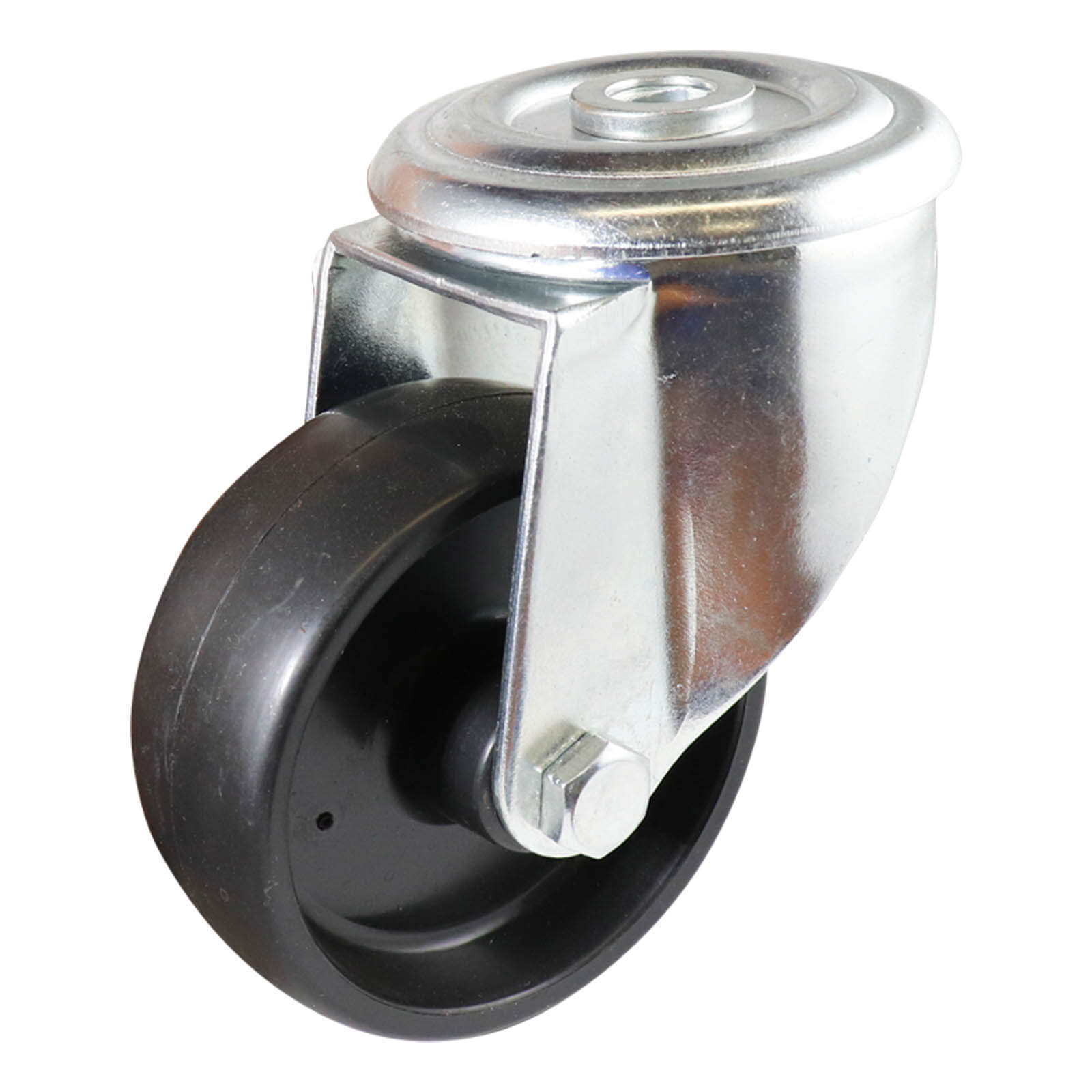

EasyRoll I4 Swivel Bolt Hole Castor, Black Polypropylene 80 mm | I41A00G80

The EasyRoll I4 series swivel bolt hole castor is fitted with a black polypropylene wheel and is available in 80 and 100 mm wheel diameters. Load capacity is 80 kg to 100 kg per castor depending on the wheel size. It fits with a single bolt through the top hole.

The I4 series is suited to general trolleys; dollies and stillages; and heavy capacity shopfittings. It has double headset bearings and a bright zinc finish.

Where this product is used

• General trolleys
• Dollies and stillages
• Heavy capacity shopfittings
• Medical equipment
• Catering equipment
• Roll pallets

Features

• Black polypropylene wheel in 80 and 100 mm
• Load capacity 80 kg to 100 kg per castor
• General purpose industrial castor that is simple, reliable and economical
• Double headset bearings for added strength
• Bright zinc finish

Key specifications

Options and part numbers

Selecting the right option

Check the bolt size and the mounting hole or tube in your equipment before you order. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
