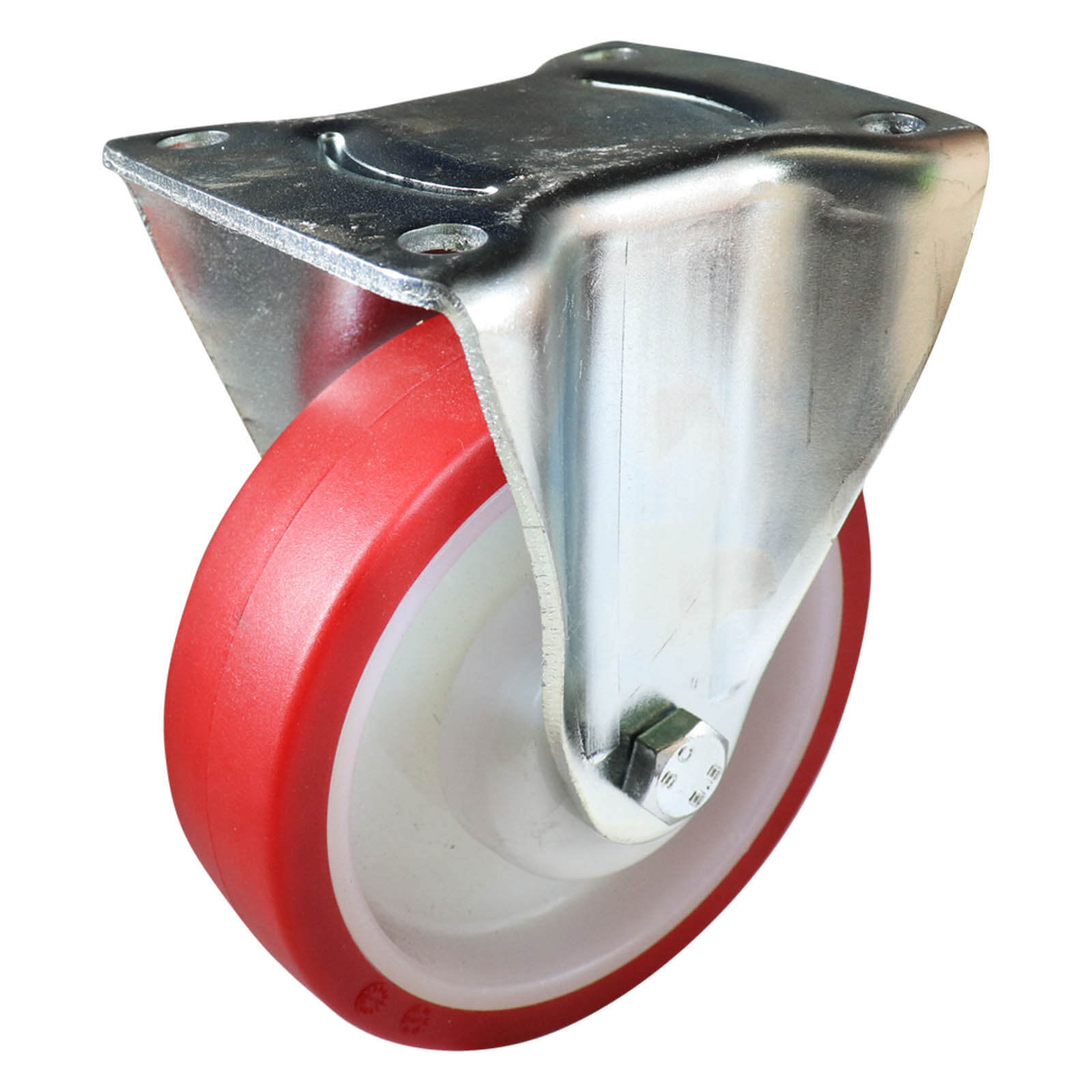

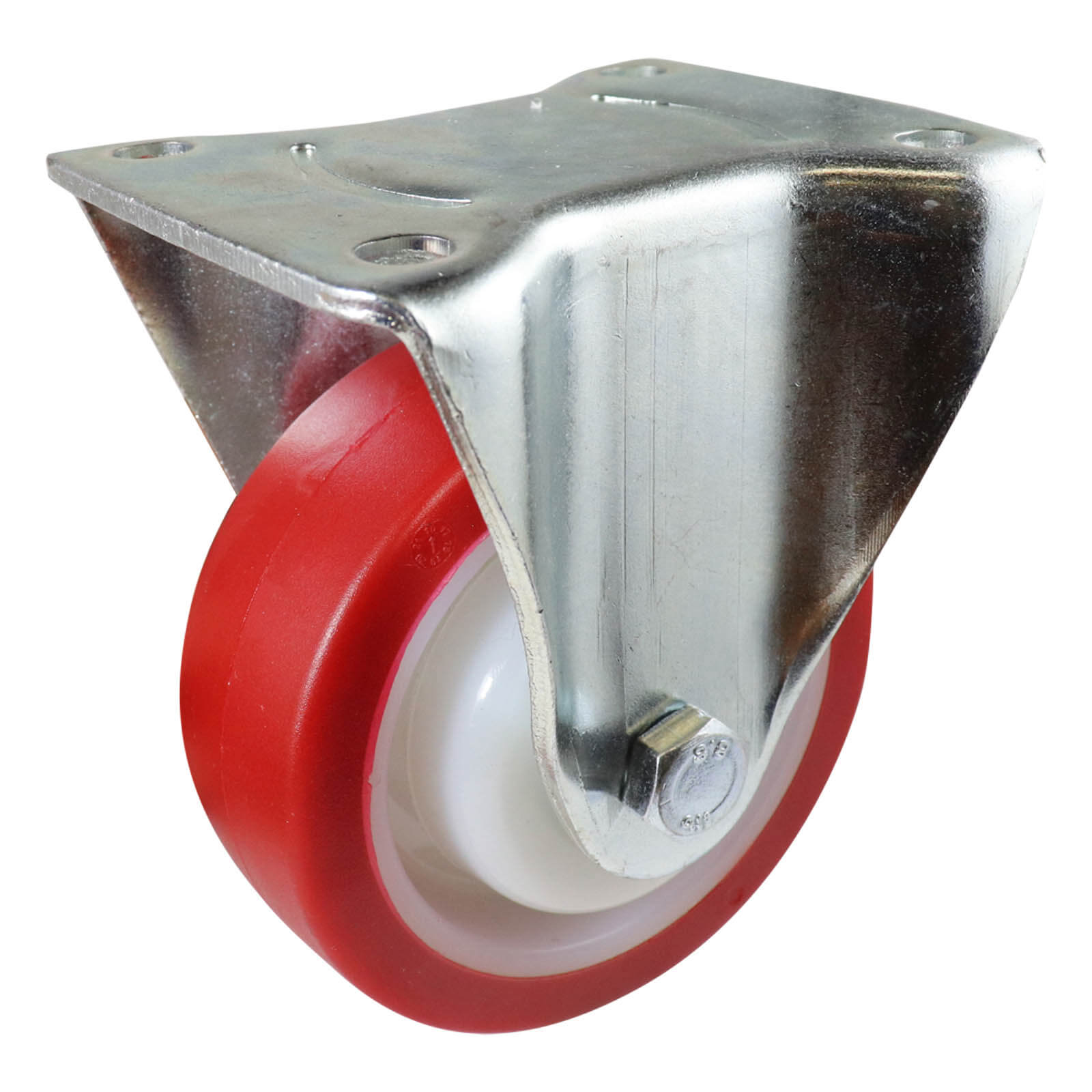

EasyRoll i3 series fixed plate castor I33AZ50K100

The EasyRoll I3 series fixed plate castor is fitted with a red urethane wheel and is available in 100 and 125mm wheel diameters. Load capacity is 230kg to 250kg per castor depending on the wheel size. The top plate is 105 x 85mm with hole centres of 80 x 60mm.

The I3 series is suited to general trolleys, heavy capacity shopfittings and medical equipment. It has double headset bearings, double precision wheel bearings.

Where this product is used

• General trolleys
• Heavy capacity shopfittings
• Medical equipment
• Catering equipment
• Pharmaceutical equipment
• Materials handling equipment

Features

• Red urethane wheel in 100 and 125mm
• Load capacity 230kg to 250kg per castor
• Double headset bearings for strength and improved manoeuvrability
• Headset seals and wheel caps protect and extend the life of the bearings
• Thick steel construction withstands high shock loads
• All wheels come with double precision bearings and wheel guards

Key specifications

Choosing the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Polyurethane wheels: good shock absorbency, excellent load capacity, good push effort, good floor protection and good durability. It is the best all-round choice and suited to all surfaces, including irregular ones. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
