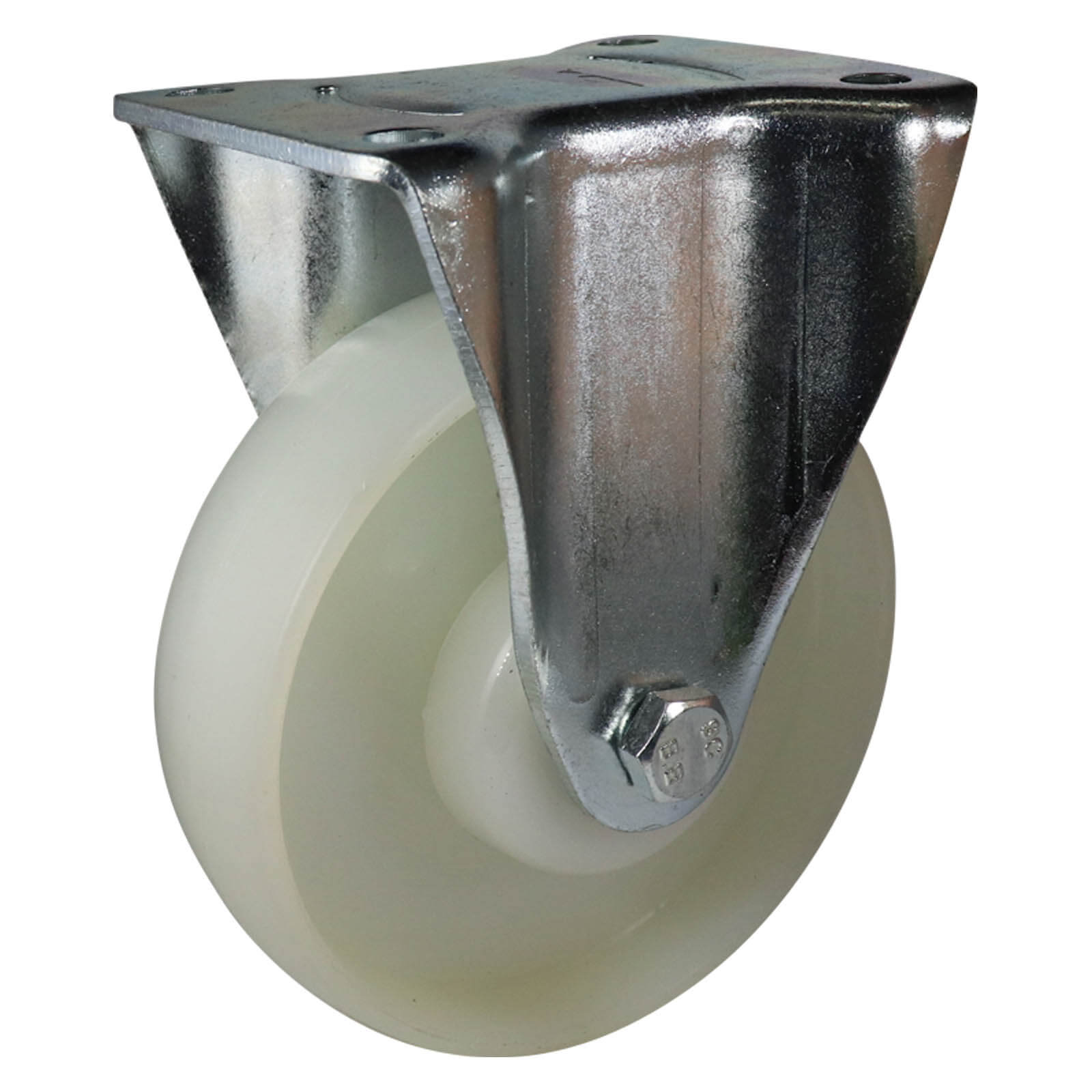

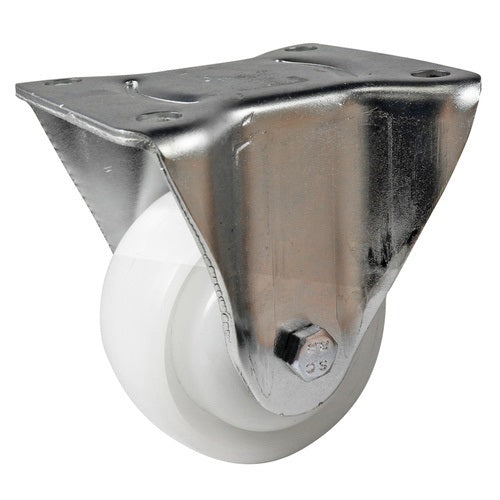

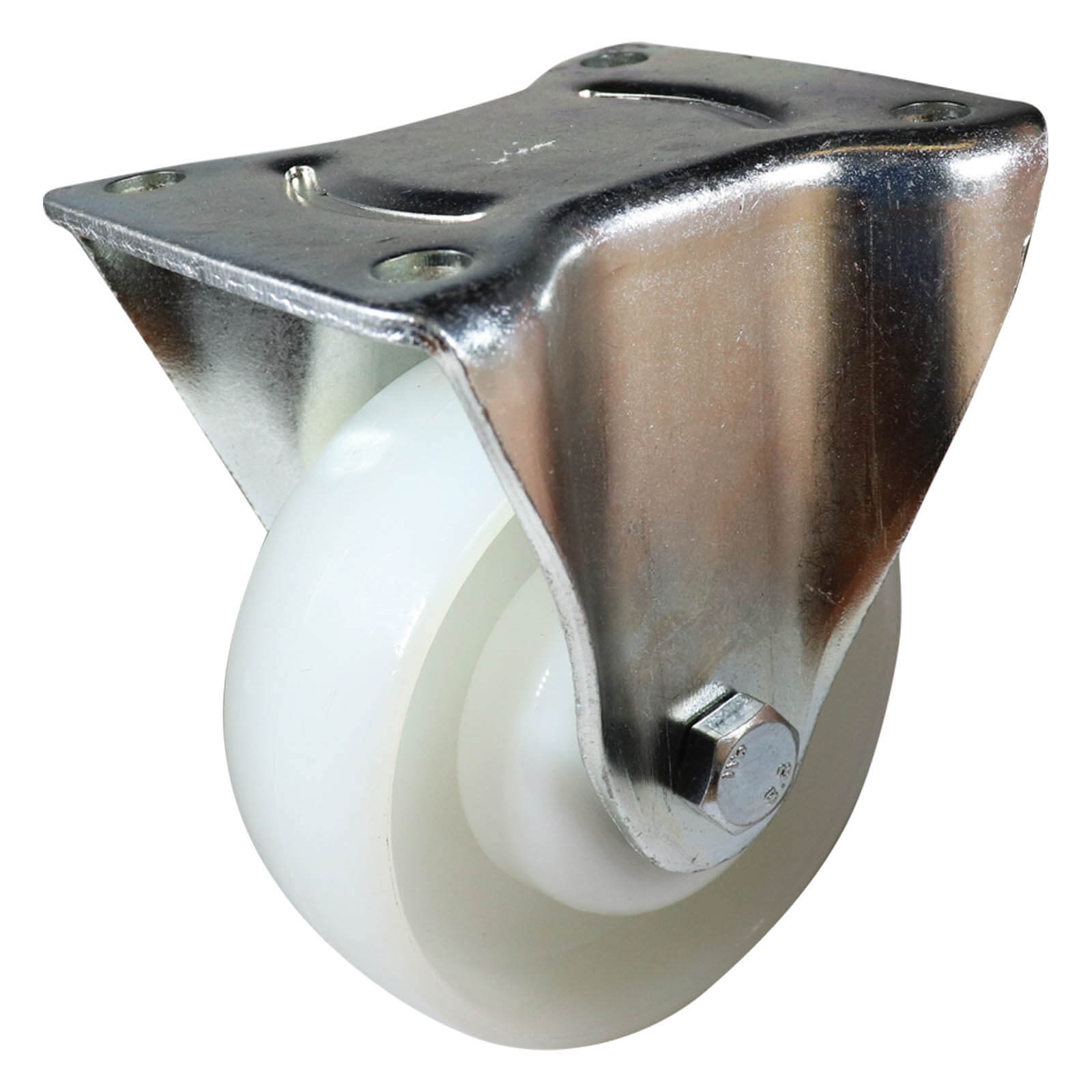

EasyRoll I3 Fixed Plate Castor, White Nylon 80 mm | I33AZ48K80

The EasyRoll I3 series fixed plate castor is fitted with a white nylon wheel and is available in 80, 100 and 125 mm wheel diameters. Load capacity is 130 kg to 250 kg per castor depending on the wheel size. Plate size and hole centres vary with wheel size and are listed in the table below.

The I3 series is suited to general trolleys, heavy capacity shopfittings and medical equipment. It has double headset bearings, double precision wheel bearings.

Where this product is used

• General trolleys
• Heavy capacity shopfittings
• Medical equipment
• Catering equipment
• Pharmaceutical equipment
• Materials handling equipment

Features

• White nylon wheel in 80, 100 and 125 mm
• Load capacity 130 kg to 250 kg per castor
• Double headset bearings for strength and improved manoeuvrability
• Headset seals and wheel caps protect and extend the life of the bearings
• Thick steel construction withstands high shock loads
• All wheels come with double precision bearings and wheel guards

Key specifications

Options and part numbers

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. EHI rates nylon wheels as follows: fair shock absorbency and floor protection, excellent load capacity and push effort and good durability. It suits smooth concrete, is strong and economical and may be noisy. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
