EasyRoll flat free wheel, 1"
Available

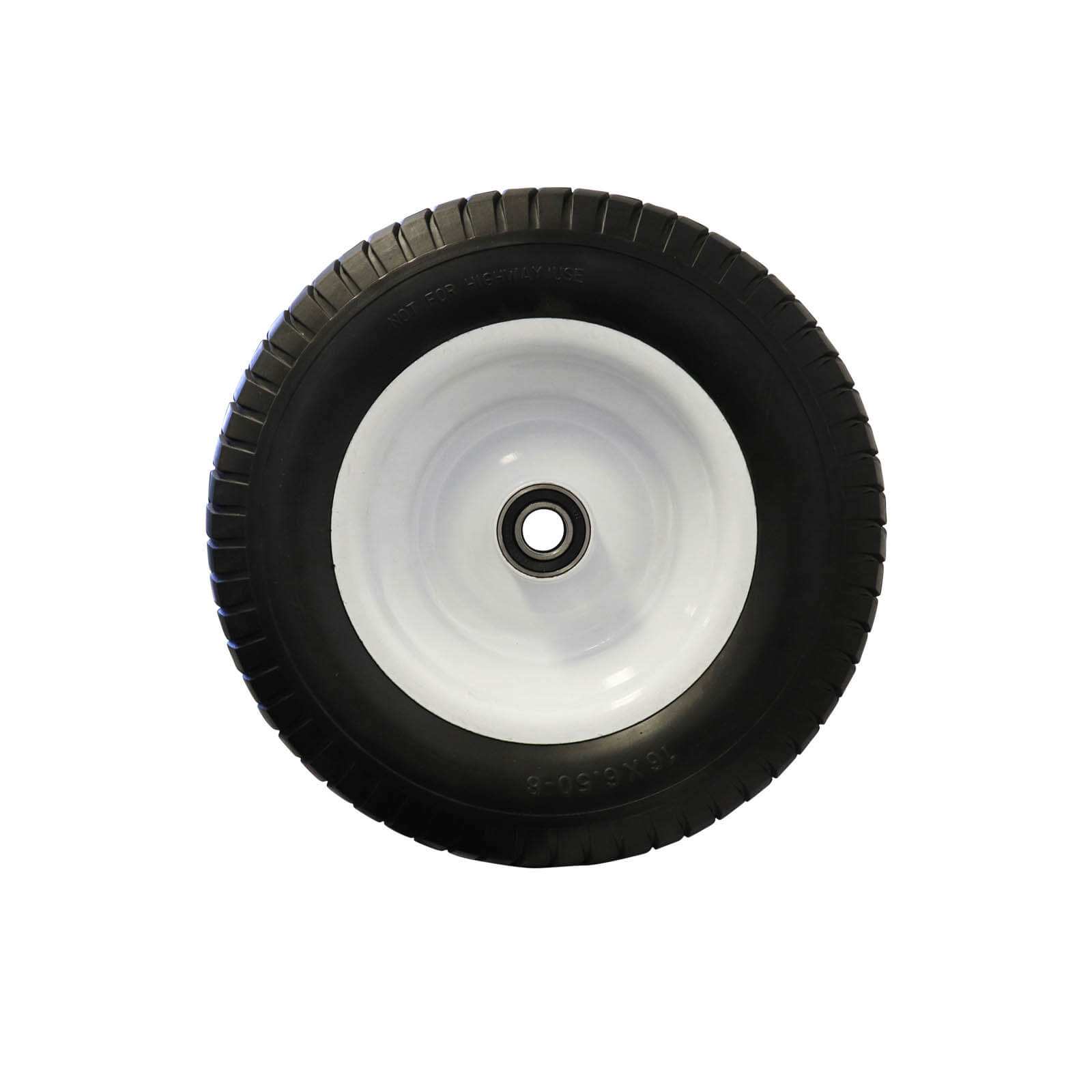

The EasyRoll flat free wheel is a puncture proof wheel made from polyurethane foam on a powder coated steel rim, with a steel centre and precision bearings. It is available in 4.00 x 8 and 6.50 x 8" tyre sizes, with a load capacity of 200 to 220kg per wheel.
The flat free wheels are giving the bounce.
Where this product is used
- Hand trucks
- Materials handling equipment
- Trolleys and carts used on uneven or unsealed ground
- Applications where punctures are a problem
Features
- 4.00 x 8 and 6.50 x 8" tyre sizes, 390 to 393mm overall diameter
- 80 to 130mm tread width
- Load capacity 200 to 220kg per wheel
- Precision bearings
- Steel centre
- Polyurethane foam tyre on a powder coated steel rim
- Bounce and feel of a pneumatic with a wide tread
- No threat of puncture
Key specifications
| Specification | Detail |
|---|---|
| Brand | EasyRoll |
| Wheel type | Flat free (polyurethane foam) |
| Centre | Steel |
| Tyre size | 4.00 x 8 and 6.50 x 8" |
| Wheel diameter | 390 to 393mm |
| Hub | 102 to 103mm |
| Tread width | 80 to 130mm |
| Bore ID | 5/8" and 1" |
| Load capacity per wheel | 200 to 220kg |
| Bearing | Precision bearing |
Choosing the right option
Choose the tyre size for the load and the ground you travel over, then match the bore ID to your axle. Load capacity is shown per wheel. For castors on a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
See also: EasyRoll Flat Free Wheel - Ball Bearing, Steel Centre, EasyRoll Spare Puncture Proof Wheel, 3 x 4", EasyRoll Pneumatic Wheel - Plain Bearing, Nylon Centre.
| Option | Part number | Tyre size (in) | Wheel diameter (mm) | Hub (mm) | Tread (mm) | Bore ID | Load capacity (kg) |
|---|---|---|---|---|---|---|---|

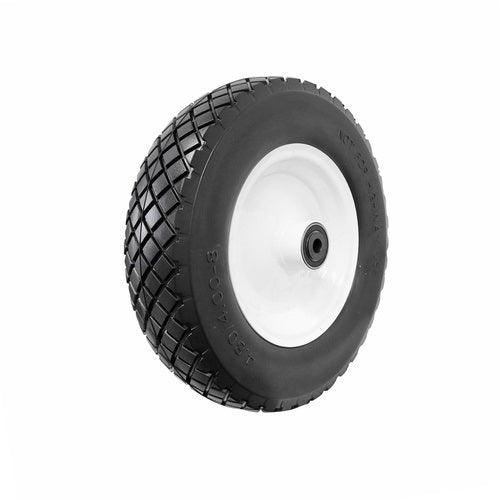

| 4.00 x 8", 5/8" bore | SPW4.00-8PS5/8C | 4.00 x 8 | 390 | 102 | 80 | 5/8" | 200 |
| 6.50 x 8", 1" bore | SPW6.50-8PS1KC | 6.50 x 8 | 393 | 103 | 130 | 1" | 220 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
EasyRoll Flat Free Wheel - Precision Bearing, Steel Centre, 4.00 x 8 and 6.50 x 8: 1"
SKU: A0049684 | Model: SPW6.50-8PS1KC
EasyRoll SPW6.50-8PS1KC: flat free wheel, 1". Load Capacity (kg): 220. Tyre/Wheel Material: PU Foam.
