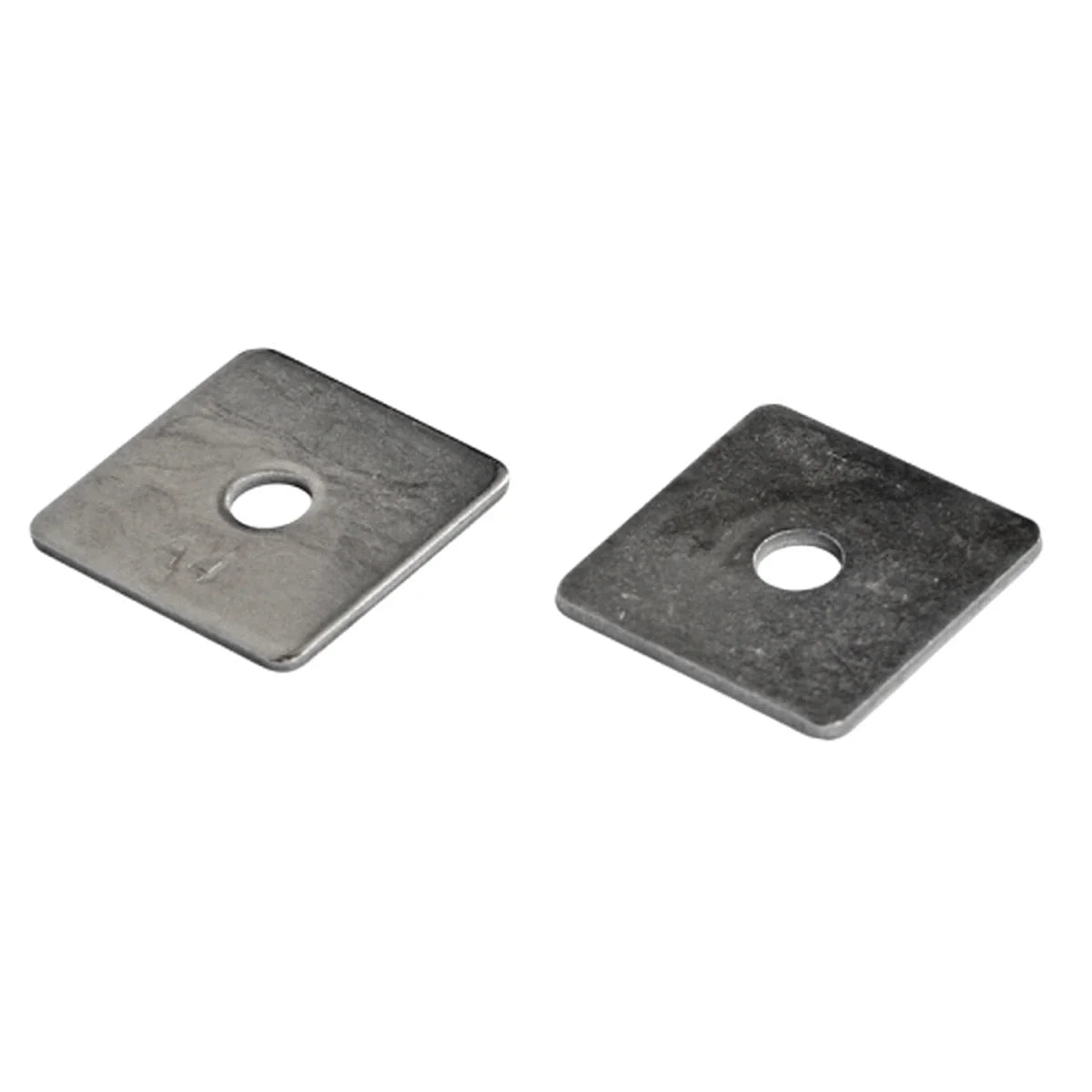

M10 x 50 x 50 x 4mm Flat Square Washer, 316 Stainless Steel - FSWA4M10X50X4

Made in 316 (A4) stainless steel, the Flat Square Washer is a flat square washer that spreads the load of a bolt or nut over a larger area. It is used on timber, plate and soft materials.

Made from 316 (A4) stainless steel, the grade normally specified for chloride-exposed work such as coastal installations, swimming pools, marine fittings and food-processing plant. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.

The range runs to 26 variants, covering sizes M10 to M24. Pack quantities depend on size: packs of 10 to 50.

In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.

Where this product is used

• Under bolts and nuts on timber posts and beams
• Larger sizes for frames, plant and structural fixings
• Chemical and washdown areas
• Fencing, pergolas and outdoor structures
• Boat, jetty and waterfront structures
• Soft or thin materials that would pull through a round washer

Features

• Choice of 26 sizes, M10 to M24
• A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
• Large square bearing area spreads the load
• Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
• Reduces timber crushing under the nut
• Supplied in packs of 10 to 50

Key specifications

Selecting the right option

Match the washer hole to the bolt size. Overall width and thickness are shown on each variant.
