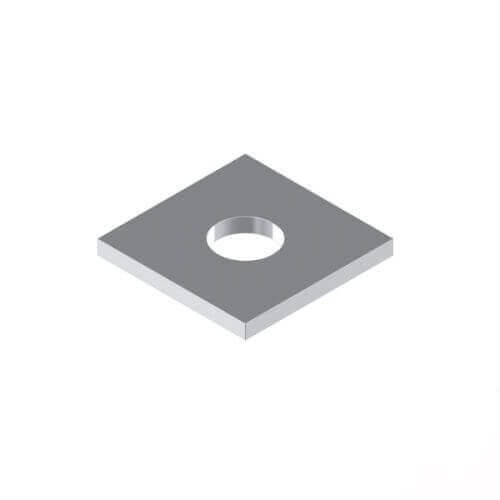

M10 Flat Square Washer, 316 Stainless Steel - FSWA4M10X50X3
The price shown is for the box.
Available
The Metric Flat Square Washer, 316 Stainless Steel is available in 4 sizes (M10 to M20) and is a flat square washer that spreads the load of a bolt or nut over a larger area. It is used on timber, plate and soft materials.
Supplied in 316 (A4) stainless steel. The molybdenum in A4 gives better resistance to chlorides than A2 (304), so it is the usual choice near the coast, around pools and in marine and food-processing environments. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.
This listing has 4 variants covering sizes M10 to M20. Pack quantities depend on size: packs of 25 to 50.
In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Coastal and marine installations
- Larger sizes for frames, plant and structural fixings
- Marine and coastal timber work
- Swimming pool and spa equipment
- Under bolts and nuts on timber posts and beams
- Fencing, pergolas and outdoor structures
Features
- Supplied in packs of 25 to 50
- A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
- Choice of 4 sizes, M10 to M20
- Large square bearing area spreads the load
- Reduces timber crushing under the nut
- Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
Key specifications
| Specification | Detail |
|---|---|
| Product | Metric Flat Square Washer |
| Type | Flat square washer that spreads the load of a bolt or nut over a larger area |
| Material | A4 (316) stainless steel |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Pack quantity | 25 to 50, by size |
| Key features | Large square bearing area spreads the load; Reduces timber crushing under the nut |
| Variants | 4 |
| Size system | Metric |
| Typical environment | Coastal, marine, pool and food-processing use |
| Size range | M10 to M20 |
Selecting the right option

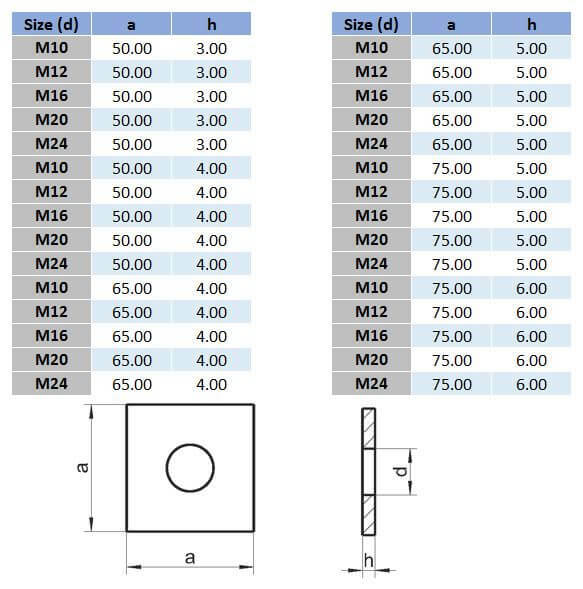

Match the washer hole to the bolt size. Overall width and thickness are shown on each variant.
Related products
Also available: Flat Square Washer Stainless Steel. Matching products: Cup Head Square Neck Bolt M8 - 316 Stainless Steel, Metric Standard Hex Nut - 316 Stainless Steel and Metric Hex Head Coach Screw - 316 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Metric Flat Square Washer - 316 Stainless Steel: M10
SKU: A0073199 | Model: FSWA4M10X50X3
FSWA4M10X50X3: M10 flat square washer, 316 Stainless Steel. Sold in a box of 50. Suits under bolts and nuts on timber posts and beams.
