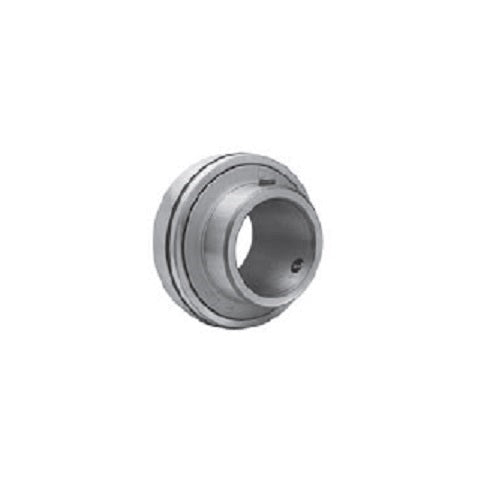

FYH UCX11-32 Insert Bearing, 2 in Bore, Set Screw, 110 mm O.D.
Available
The FYH UCX11-32 is a set screw insert bearing with a 2 in bore (50.8 mm). It measures 110 mm (4.331 in) O.D., with a basic dynamic load rating of 52.4 kN and a static rating of 36.2 kN.

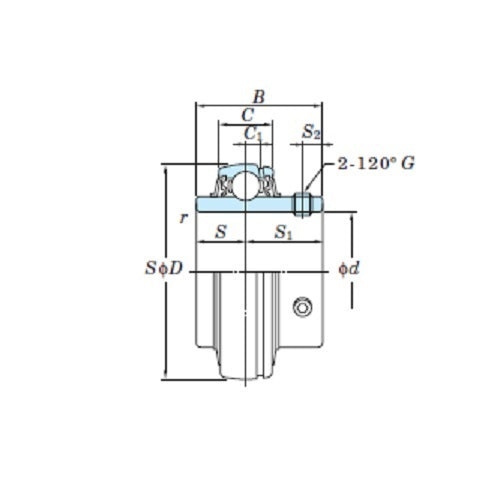

It is a UC type insert with a wide inner ring, set screws and a spherical O.D. for a housing with a matching spherical bore, medium duty (diameter series X).
Where this product is used
- Replacement insert for a plummer block or pillow block unit
- Replacement insert for flange and take-up housings with a matching spherical bore
- Conveyor rollers, drive shafts and idler stations
- Fans, blowers and pumps
- Agricultural, construction and general industrial machinery
Features
- Set screws spaced 120 degrees apart lock the insert to a 2 in shaft
- Spherical O.D. for housings with a matching spherical bore
- Rubber seal with metal slinger, supplied pre-lubricated with FYH grease
- Basic dynamic load rating Cr 52.4 kN and static rating C0r 36.2 kN
- Allowable rotating speed 2,300 rpm (standard value)
Key specifications
| Specification | Detail |
|---|---|
| Type | Insert bearing (deep groove ball bearing) with set screws and spherical O.D., medium duty |
| Model | UCX11-32 |
| Bore diameter d | 50.8 mm (2 in) |
| Outer diameter D | 110 mm (4.331 in) |
| Locking | Set screws, spaced 120 degrees apart |
| Outer ring | Spherical O.D. with grease groove and grease holes |
| Seal | Rubber seal with metal slinger |
| Lubrication | Supplied pre-lubricated with FYH grease |
| Duty | Diameter series X (medium duty) |
| Basic dynamic load rating Cr | 52.4 kN |
| Basic static load rating C0r | 36.2 kN |
| Factor f0 | 14.4 |
| Allowable rotating speed (standard value) | 2,300 rpm |
| Data basis | The catalogue has no row under the designation UCX11-32. O.D., Cr, C0r and f0 are taken from the catalogue row UCX11 (same size number); the widths and mass of UCX11-32 are not shown |
| Brand | FYH (FYH Inc., Japan) |
Selecting the right option
This page is for the single model UCX11-32, with a 2 in bore. If you need another shaft size, the related pages below list the other sizes in this range.
Imperial (inch) bores are in fractions of an inch; the Model Details give the size in mm with the inch size in brackets: match the bore to the shaft you have.
Catalogue data basis: The catalogue has no row under the designation UCX11-32. O.D., Cr, C0r and f0 are taken from the catalogue row UCX11 (same size number); the widths and mass of UCX11-32 are not shown.
Fitting and use
Check the load and speed against the catalogue figures in the Model Details before ordering, and apply a suitable safety factor. The allowable rotating speed in the catalogue is a standard value: it falls to 80% for units fitted with covers, and a loose fit between shaft and inner ring reduces it further.
Tighten the set screws once the insert is in position on the shaft.
Match the insert to a housing with the same size number: the spherical O.D. seats in a matching spherical housing bore.
If you are unsure which insert suits a shaft and housing, send AIMS the part numbers or sizes and we will confirm the fit.
Related products
The catalogue unit tables pair UCX11-32 with these FYH housings (matched by size number; UCX11-32 are matched through the UCX units of the same size number): PX series medium pillow block housings (size PX11), FX series medium four bolt flange housings (size FX11) and FCX series medium round flange cartridge housings (size FCX11). Related FYH insert bearing pages: UCX medium duty insert bearings, 25 to 60 mm bore (metric), UCX medium duty insert bearings, 1 to 1 3/4 in bore (imperial), UC200 insert bearings, 12 to 90 mm bore (metric), UC200 insert bearings, 1/2 to 3 1/2 in bore (imperial), UC300 heavy duty insert bearings, 25 to 140 mm bore (metric) and UC300 heavy duty insert bearings, 1 1/2 to 4 in bore (imperial). Single-model pages in this range: UCX10-30.
