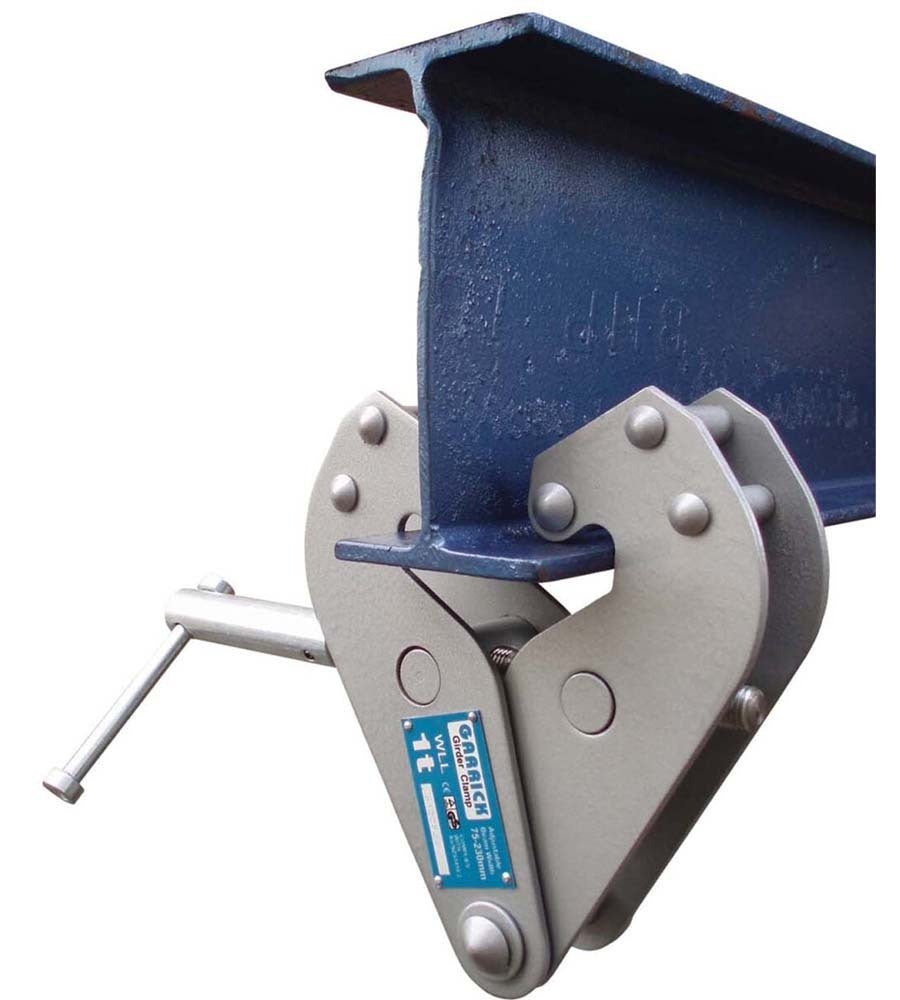

Garrick Herbert steel girder clamps, 5T

Garrick girder clamps are steel beam clamps in capacities from 1T to 10T, with each model suited to a stated range of beam widths from 75mm to 320mm. They are of robust all steel construction with durable stainless steel labels, and a test certificate and instruction manual are supplied with every clamp.

The clamps comply with AS/NZS 4991.

Where this product is used

• Clamping onto steel beams within the beam width range of the model
• Fixed rigging points on steel beams where the rated capacity suits the load

Features

• Robust all steel construction
• Capacities of 1T, 2T, 3T, 5T and 10T
• Beam width ranges from 75mm to 320mm, depending on model
• Durable stainless steel labels
• Test certificate and instruction manual supplied with every clamp

Key specifications

Choosing the right option

Match both the capacity and the beam width range to the job: the beam must sit inside the range for the model. Lifting equipment must be used within its marked working load limit (WLL), inspected before each use, and selected and used in line with your site lifting procedure and the relevant Australian Standards.

To travel a load along a beam see the: Garrick push trolleys, Garrick geared trolleys.

To lift from the beam see the: Garrick lever hoists, Garrick chain blocks.
