Gates 180J4 Micro-V Belt, 4 Ribs, J Section (180J4)
Available
This is the Gates 180J4 Micro-V Belt, 4 Ribs, J Section (180J4).

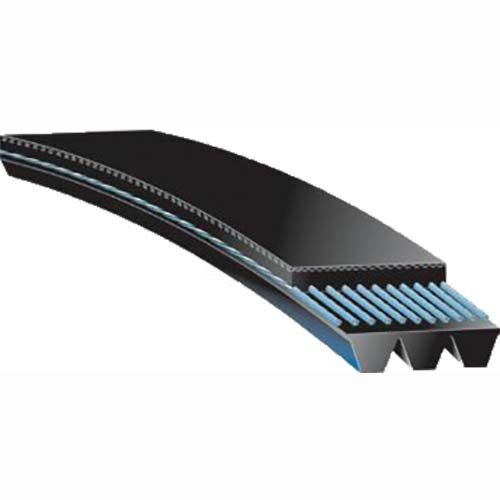

Gates Micro-V belts are multi-ribbed (serpentine-profile) industrial belts — a single belt with several parallel small ribs running in a matching grooved pulley, replacing multiple narrow V-belts on one drive. The J section suits industrial multi-ribbed drives across machine tools, conveyors, appliances, outdoor power equipment and medical/exercise equipment.
Where this product is used
Gates V-belts cover the full range of industrial, agricultural and automotive drive applications. Common end uses include:
- Appliances and domestic/commercial white goods — washing machines and other multi-ribbed drives
- Outdoor power equipment, roller conveyors and machine tools
- Medical equipment and exercise/fitness equipment
- General industrial multi-ribbed drives — textile machinery, vacuum systems and workshop equipment
Key specifications
| Specification | Detail |
|---|---|
| Belt Section | J |
| Series | Micro-V — Gates’ multi-ribbed (serpentine-profile) industrial belt, J section |

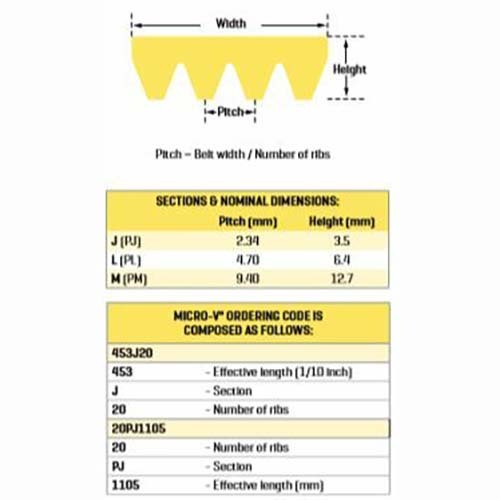

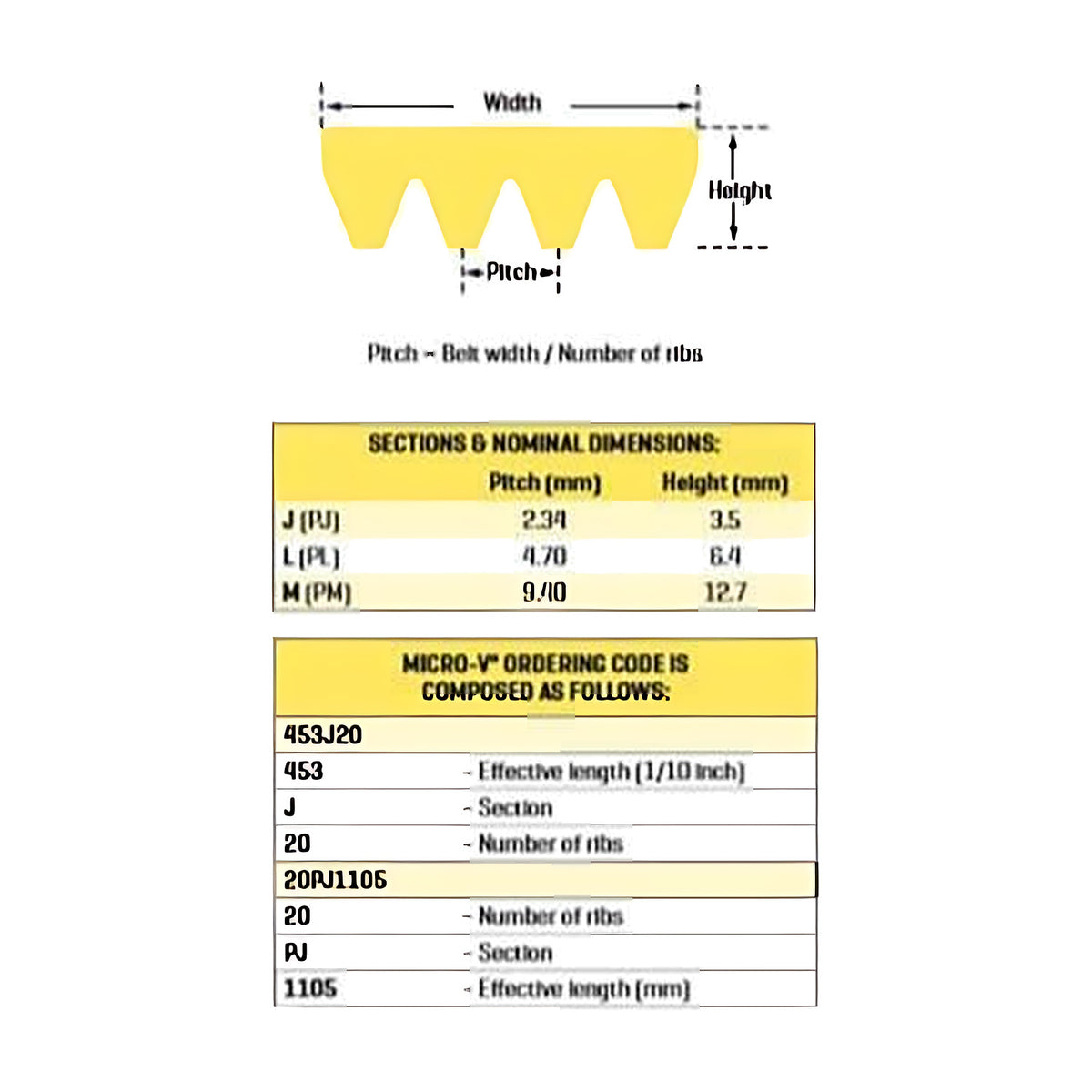

| Belt Identification | Belt code = effective length in tenths of an inch, followed by section letter and rib count — e.g. 780L16 = 78.0 in effective length, L section, 16 ribs. |

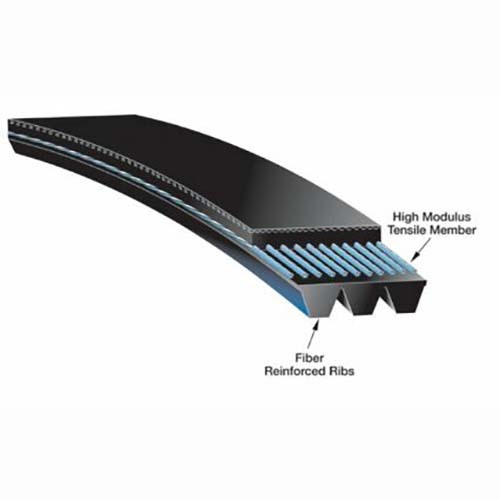

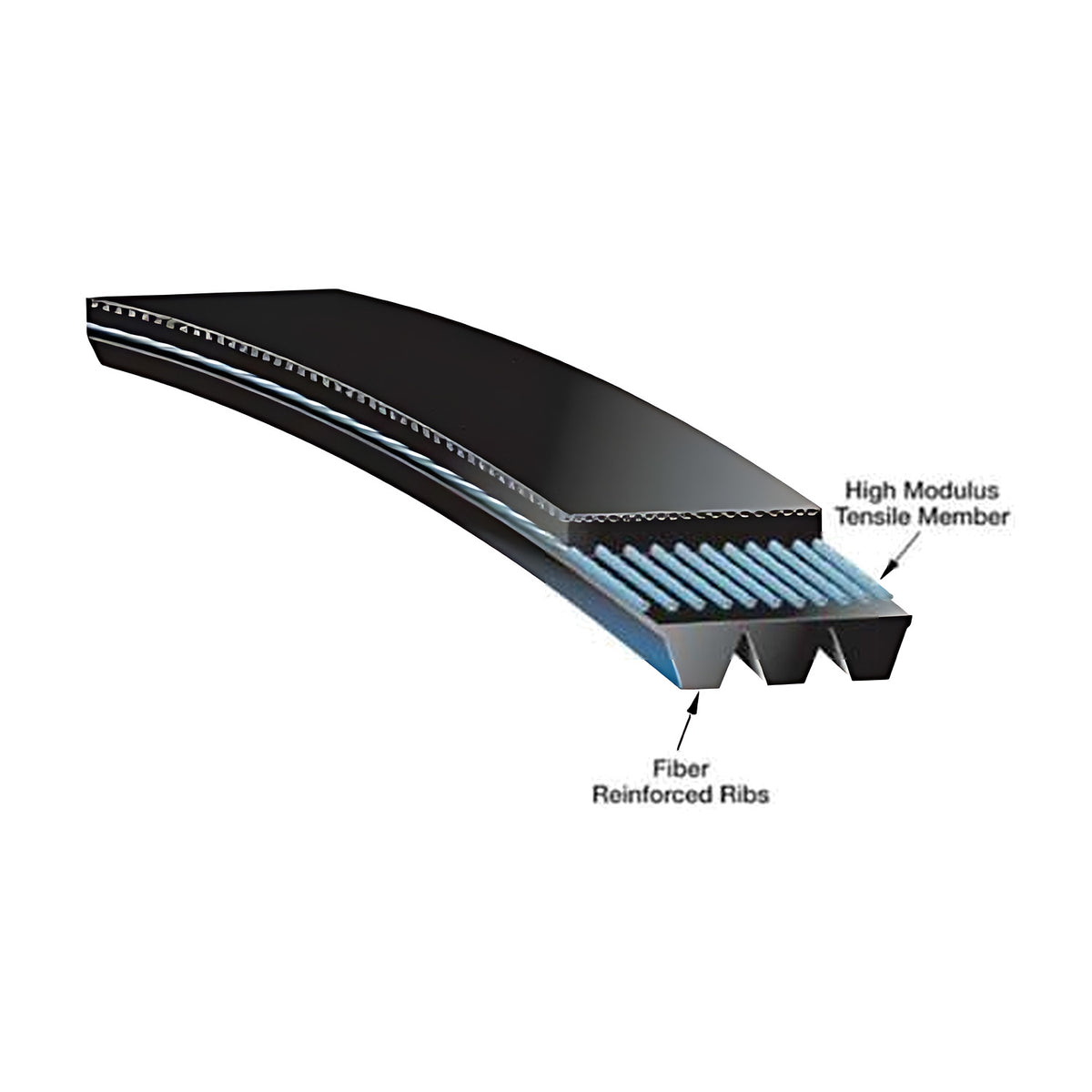

| Construction | Fiber reinforced ribs for wear resistance; high modulus, low-stretch tensile member for strength and dependability; smooth running for minimal vibration at high speed. Meets ARPM/RMA IP-3-2 oil and heat resistant standards. |
| Nominal Rib Dimensions (Width x Height) | 5/32 x 3/32 in (3.97 x 2.38 mm) |
| Ribs | 4 |
| Belt Length | 18.0 in effective length |
| Application Category | Industrial |
Selecting the right option
Select by belt section first, then by pitch length. Classical sections run A, B, C, D, E (or Z in metric) — cross-reference to the metric ISO equivalent (13A, 17A, 22A) where needed. Narrow sections (3V/SPA, 5V/SPB, 8V/SPC) carry more power in the same envelope. The XP series (XPZ/XPA/XPB/XPC) are notched versions for improved flex efficiency. Gates PowerBand banded belts join multiple strands — specify these for long centre distances, vertical drives or where belt whip is an issue. Looking for an automotive serpentine belt instead? Automotive Micro-V drives use the K section — see our automotive Micro-V range and match by OE reference or by rib count and pitch length.
Product details
| Section | J |
|---|---|
| Effective Length (mm) | 457 |
| Number of Ribs | 4 |
| Belt Thickness (mm) | 3.5 |
| Top Width (mm) | 9.36 |
| Outside Circumference (mm) | 467 |
| Material | Polychloroprene (Neoprene), polyester tensile cord |
| V-Belt Code | 180J4 |
