Description
Description
Descriptions
- Gates Micro-V® multi-ribbed belts ensure outstanding performance on any industrial multi-ribbed drive
- They cover a multitude of industrial applications and are suitable also for industrial drives in washing machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more
- The full line of Micro-V® belt products include sleeves in several widths as well as single belts in PJ, PL and PM sections in order to perfectly match customer requirements

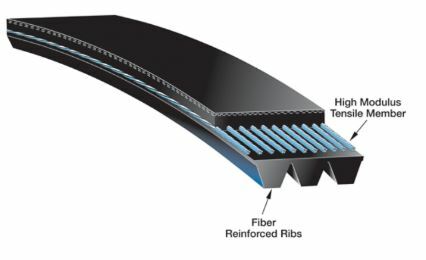

Construction
- Truncated ribs (tips removed) ensure flexibility, reduce heat build-up and improve rib crack resistance. They also enhance load-carrying capacity on small diameter pulleys
- Fibre-loaded compound for improved belt stability
- Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
- Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
- Static conductive - ISO 1813 and RMA IP3-3
Advantages
- Extremely smooth and cool running
- Very high power capacity per rib
- Long life due to extra load-carrying capacity
- Improved performance on back idlers
- Smaller drive package
- Tolerant of pulley groove debris
- Back idlers can be used.
Temperature Range
- Range: -35°C to +80°C
Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

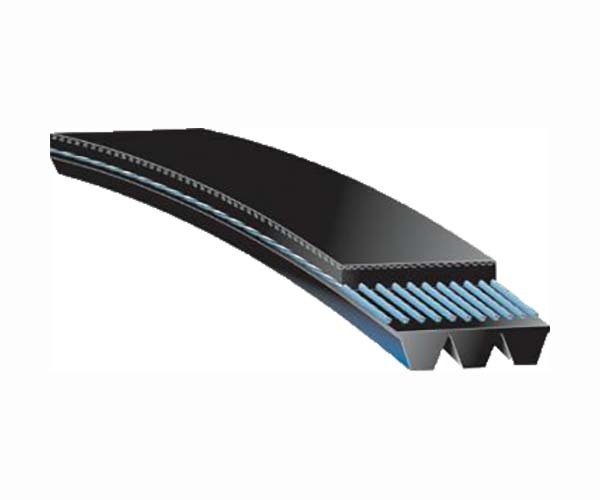

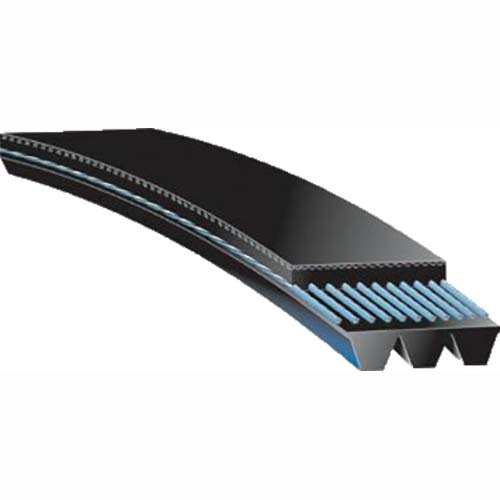

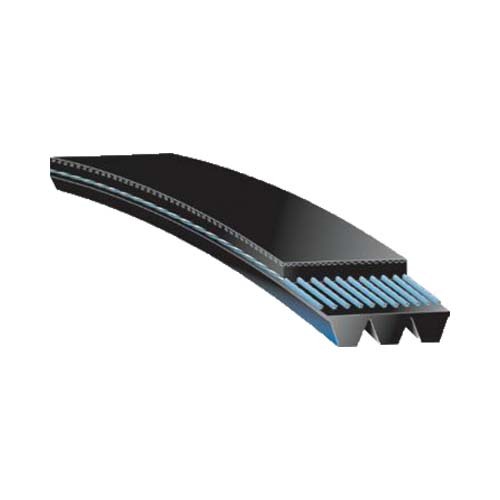

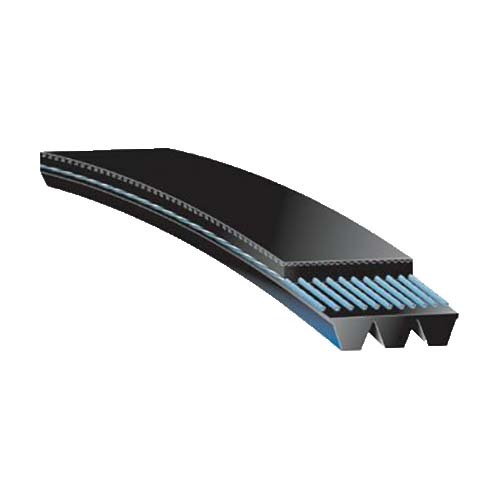

Gates Micro-V Belt - L Section
Gates Micro-V Belt - L Section
SKU: A0036299
Type: Micro-V Ribbed Belt
- Wide Range
- Reliable Services
- Proven Trust
Available
The Gates Micro-V Belt by Gates is a Micro-V Ribbed Belt with Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing. It provides -35°C to +80°C and is suitable for industrial drives in washing machines.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Descriptions
- Gates Micro-V® multi-ribbed belts ensure outstanding performance on any industrial multi-ribbed drive
- They cover a multitude of industrial applications and are suitable also for industrial drives in washing machines, vacuum cleaners, lawn mowers, machine tools, medical equipment and many more
- The full line of Micro-V® belt products include sleeves in several widths as well as single belts in PJ, PL and PM sections in order to perfectly match customer requirements
Construction
- Truncated ribs (tips removed) ensure flexibility, reduce heat build-up and improve rib crack resistance. They also enhance load-carrying capacity on small diameter pulleys
- Fibre-loaded compound for improved belt stability
- Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
- Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
- Static conductive - ISO 1813 and RMA IP3-3
Advantages
- Extremely smooth and cool running
- Very high power capacity per rib
- Long life due to extra load-carrying capacity
- Improved performance on back idlers
- Smaller drive package
- Tolerant of pulley groove debris
- Back idlers can be used.
Temperature Range
- Range: -35°C to +80°C

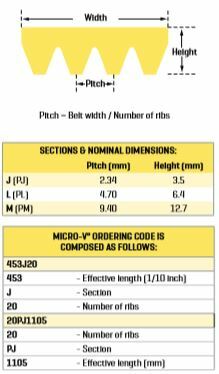

Specifications
Specifications
Applications
Applications
Features & Benefits
Features & Benefits
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Gates Micro-V Belt - L Section
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Gates Micro-V Belt by Gates is a Micro-V Ribbed Belt with Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing. It provides -35°C to +80°C and is suitable for industrial drives in washing machines. |
Regular price
From $91.89
Sale price
From $91.89
Regular price
Unit price
/per
| Gates | Micro-V Ribbed Belt |
Length (inch)
50,56,65.5,69.5,78,39,88,99
Ribs
10,12,8,14,16,5,18,6,20
V-Belt Code
500L10,500L12,500L8,560L10,560L12,560L14,655L16,655L5,695L18,780L6,390L6,880L20,990L12
|
Choose your option
Gates Micro-V Belt - L Section
Gates Micro-V Belt - L Section
SKU: A0036299
Type: Micro-V Ribbed Belt
Hurry up, only 16 items left in stock.
The Gates Micro-V Belt by Gates is a Micro-V Ribbed Belt with Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing. It provides -35°C to +80°C and is suitable for industrial drives in washing machines.
