Gates Tri-Power Notched Cogged Classical Section, AX48
Available

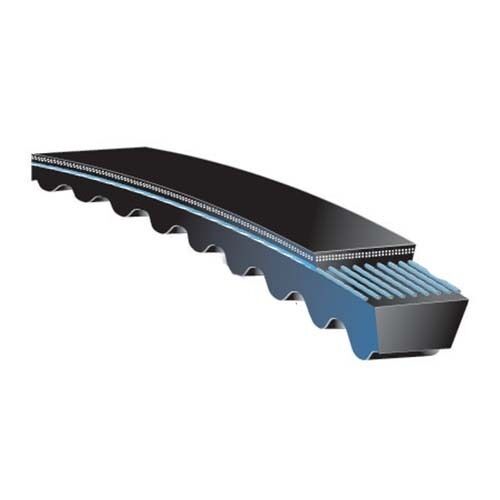

This is the Gates Tri-Power Notched (Cogged) Classical Section Belt - AX Section - Clearance.
The Gates Tri-Power Drive Belt AX section delivers high-power, high-efficiency transmission for demanding industrial drives. The cogged underside reduces operating temperature on smaller sheave diameters, extending belt life and improving drive efficiency compared to equivalent wrapped V-belts of the same section, items 9012-6048 to 9013-6062.
Where this product is used
- High-power industrial drives on mills, crushers, mining conveyors and heavy-duty process equipment
- Agricultural and construction machinery subject to shock loads, vibration and variable torque demands
- Quarrying and material-handling systems where superior power ratings and extended belt life are critical
Features
- Notched / cogged underside for added flexibility
- Up to 30% more power vs equivalent wrapped belt
- Smoother running and cooler than wrapped V-belts
- Allows smaller minimum pulley diameter
Key specifications
| Specification | Detail |
|---|---|
| Brand | Gates |
| Belt Section | AX |
| Series | Tri-Power, Gates' raw-edge, moulded-notch classical-section V-belt built for superior performance on heavy-duty drives |

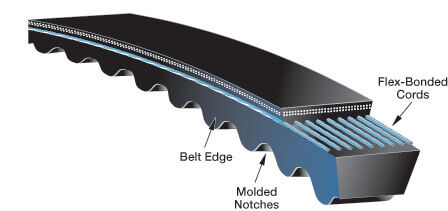

| Construction | Raw edge, moulded-notch (cogged) classical-section construction, exclusive ethylene EPDM rubber compound for extended temperature range, precision-ground sidewalls for uniform wedging action, Flex-Bonded polyester tensile cords for even load distribution, non-self-igniting, will not catch fire from heat build-up even under severe slippage, static conductive (ISO 1813 & RMA IP3-3). Note: per Gates specification, Tri-Power belts longer than 210" inside length are wrapped, cut-notch construction rather than raw-edge moulded-notch |

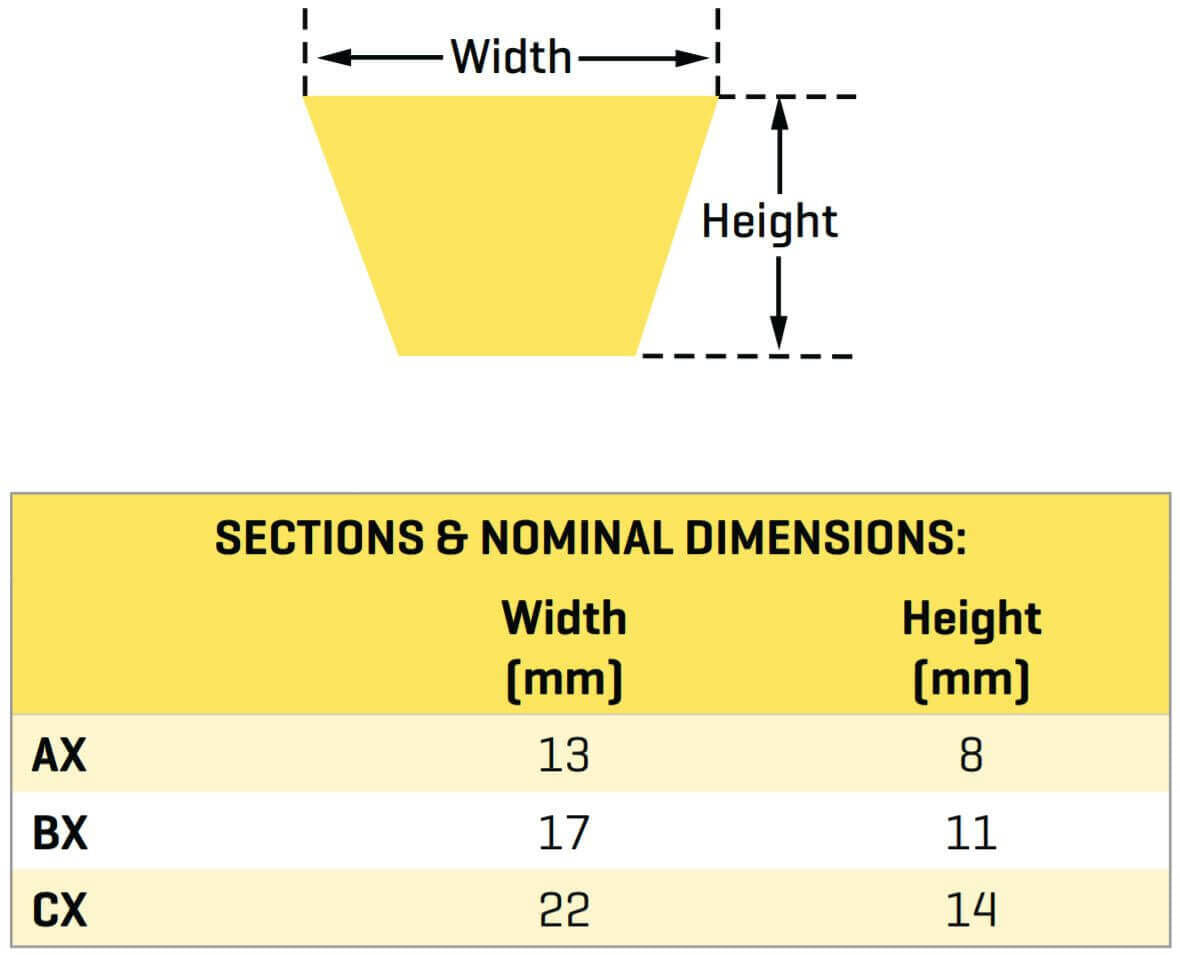

| Nominal Dimensions (Width x Height) | 13 x 8mm |

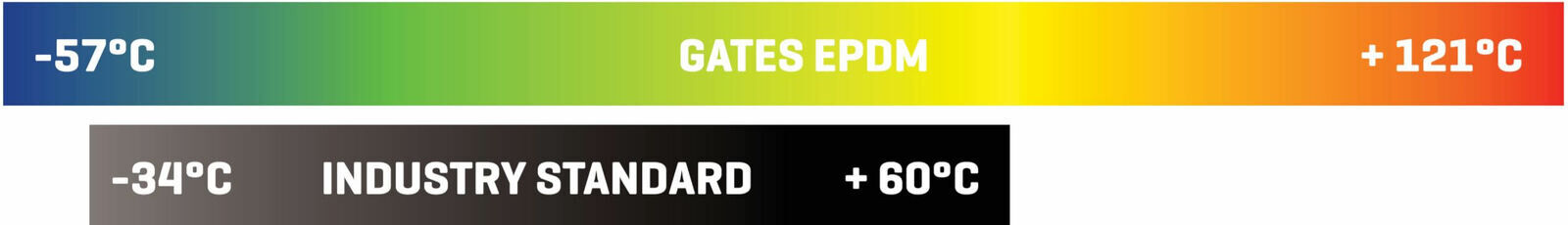

| Temperature Range | -57°C to +121°C |
| Belt Matching | Meets Gates V80 tolerances, any Tri-Power belt of the same section and length matches any other, no belt-matching required. Back idlers can be used |
Choosing the right option
Select by section designation: XPZ (10mm top, lightest duty), XPA, XPB, XPC (widest, highest power). QuadPower 4 XP belts are direct replacements for standard narrow V-belts of the same section and length, the cogged underside allows operation on smaller sheave diameters than wrapped equivalents. For Tri-Power AX/BX/CX cogged classical belts, cross-reference the A/B/C pitch length.
| Option | Part number | SKU |
|---|---|---|
| AX48 | 9012-6048 | CA0018181 |
| AX65 | 9012-6065 | CA0018198 |
| BX49 | 9013-6049 | CA0018281 |
| BX51 | 9013-6051 | CA0018283 |
| BX59 | 9013-6059 | CA0018291 |
| BX62 | 9013-6062 | CA0018294 |
Product details
| Model | 9012-6048 |
|---|---|
| Part number | 9012-6048 |
| Section | AX |
| Belt Length (mm) | 1219 |
| Top Width (mm) | 13 |
| Belt Thickness (mm) | 10 |
| Underside | Cogged (notched) |
| Material | EPDM or rubber compound with high-tensile cord |
| V-Belt Code | AX48 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates Tri-Power Notched (Cogged) Classical Section Belt - AX Section - Clearance: AX48
SKU: CA0018181 | Model: 9012-6048
9012-6048: gates Tri-Power Notched Cogged Classical Section, AX48. Section: AX. Belt Length (mm): 1219.
