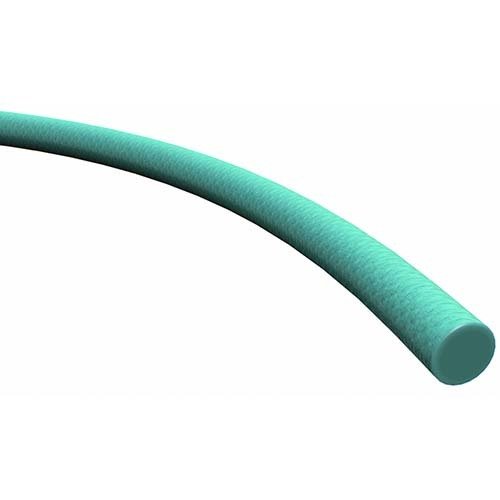

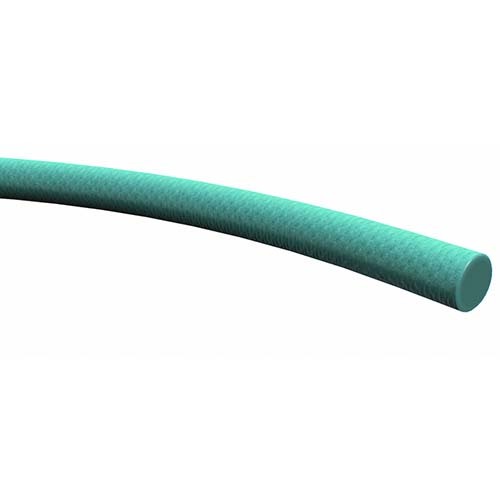

Eagle Green 89 Textured Round Polyurethane Belt, 4mm
Available
The Eagle Green 89 belt is a non-reinforced round polyurethane belt, 89 Shore A, with a textured surface. It comes in outside diameters of 4, 5, 6, 8, 10, 12mm and is welded endless in the field, for example with a butt welding kit.
The textured surface gives a lower coefficient of friction, and the belt resists heat and water, so it suits drives that are washed down. The belt is priced per metre.
Where this product is used
- Light-duty conveying and drives
- Packaging machinery
- Textile machinery
- Woodworking machinery
- Equipment that is washed down often
Features
- Solid round construction, non-reinforced, 89 Shore A
- Textured surface with a lower coefficient of friction
- Resists heat and water, suited to frequent wash-downs
- Welded endless in the field
- No take-ups required
- REACH and RoHS compliant
- Operating temperature -30 to +66 °C
- 6 sizes, 4 to 12mm
- Priced per metre
Key specifications
| Specification | Detail |
|---|---|
| Brand | Eagle |
| Product | Green 89 textured round belt |
| Material | Polyurethane |
| Construction | Solid round, non-reinforced |
| Hardness | 89 Shore A |
| Colour | Green |
| Surface | Textured |
| Outside diameters | 4, 5, 6, 8, 10, 12mm |
| Joining | Welded endless |
| Operating temperature | -30 to +66 °C |
| Compliance | REACH, RoHS |
| Sold | Per metre |
Sizes and ratings
| Outside diameter (mm) | Min. pulley diameter (mm) | Weight (kg/m) | Load at 4% (N) | Load at 6% (N) | Load at 8% (N) | Load at 10% (N) |
|---|---|---|---|---|---|---|
| 4 | 36 | 0.015 | 4.1 | 6.8 | 9.3 | 11.6 |
| 5 | 45 | 0.023 | 6.5 | 10.6 | 14.6 | 18.2 |
| 6 | 54 | 0.034 | 9.3 | 15.3 | 21 | 26.2 |
| 8 | 72 | 0.06 | 16.6 | 27.2 | 37.3 | 46.7 |
| 10 | 90 | 0.093 | 25.8 | 42.3 | 58.1 | 72.5 |
| 12 | 108 | 0.135 | 37.3 | 61.2 | 84.1 | 105.1 |
Fitting and use
Cut the belt to length and weld the ends together to make it endless. Working loads are, 4, 6, 8 and 10 percent belt tension and are reference values for sizing a drive.
Choosing the right option
Choose the outside diameter that matches the groove on the pulleys. Do not run the belt on pulleys below the minimum pulley diameter for the size, which is 9 x the belt outside diameter.
The belt is sold by the metre. Order the length the drive needs, and allow for the length that is lost in the weld. A butt welding kit is needed to join the belt endless.
Other Eagle round belt products: Eagle Red 85 Quick Connect hollow round belt, Eagle QC connectors for Red 85 Quick Connect round belt.
| Option | Part number | SKU |
|---|---|---|
| 4mm | A0124622 | |
| 5mm | A0124623 | |
| 6mm | A0124624 | |
| 8mm | A0124625 | |
| 10mm | A0124626 | |
| 12mm | A0124627 |
