Eagle QC Connector for Red 85 Quick Connect Round Belt, 6mm

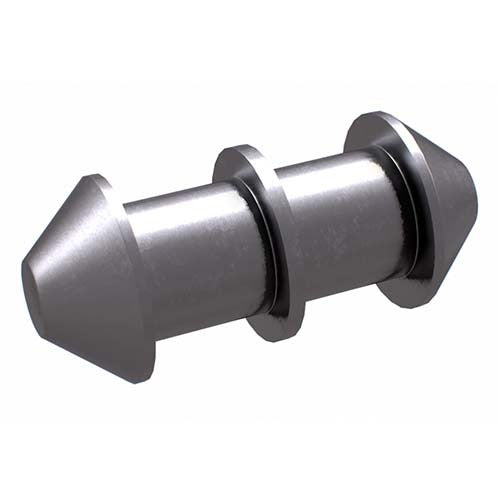

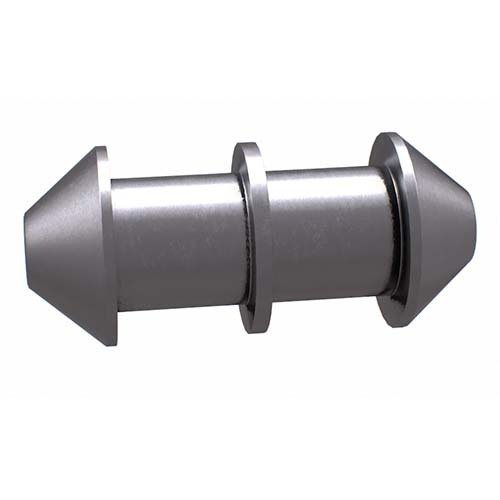

Eagle QC connectors join the ends of the Eagle Red 85 Quick Connect hollow round belt. The connector fits into the bore of the belt, so the belt is made endless without welding.

There is one connector size for each belt size, 6, 8, 10, 12mm outside diameter. Choose the size that matches the belt.

Where this product is used

• Joining the ends of Eagle Red 85 Quick Connect round belt
• Replacing a worn or damaged connector on a belt
• Making a belt endless on drives where the shafts cannot be taken apart

Features

• Metal connector for Eagle Red 85 Quick Connect hollow round belt
• No welding required
• Four sizes to suit belts of 6, 8, 10, 12mm outside diameter
• Fits belt outside diameters: 6, 8, 10, 12mm

Key specifications

Sizes

Fitting and use

Fit the connector into the bore of the belt at each end to make the belt endless. Check the connector size against the belt before fitting.

Choosing the right option

Choose the connector with the same size as the belt outside diameter. These connectors are for the hollow Eagle Red 85 Quick Connect belt only. The solid Eagle Green 89 belt is joined by welding.

The connector is a joining accessory and is not a length of belt.

Other Eagle round belt products: Eagle Red 85 Quick Connect hollow round belt, Eagle Green 89 textured round belt.
