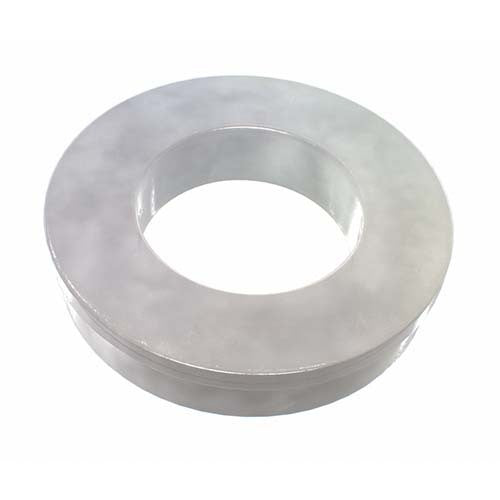

Hobson WR66PHM03 M3 Hubo Locking and Sealing Washer, Natural Nylon
Available
This page lists 9 items of the Hobson Hubo locking and sealing washer (natural nylon): M3 to M20.
The supplier lists these as Hubo washers for locking and sealing, in natural nylon. The supplier information gives two figures for each size without labelling them, so they are published as listed.
Pack quantity varies by size and is shown for each item in the table.
Where this product is used
- Fitted under a screw head as a locking and sealing washer
- Where a non-metallic washer is wanted
Features
- 9 items: M3 to M20
- Natural nylon
- Dimensions shown as listed by the supplier
- Pack quantity shown for each item
Common specifications
| Specification | Detail |
|---|---|
| Sizes | M3 to M20 |
| Material | Natural nylon |
Key specifications
| Model | Size | Listed dimensions | Supplied as |
|---|---|---|---|
| WR66PHM03 | M3 | 8 x 2.5mm | Pack of 200 |
| WR66PHM04 | M4 | 10 x 2.8mm | Pack of 200 |
| WR66PHM05 | M5 | 10.7 x 3mm | Pack of 200 |
| WR66PHM06 | M6 | 12.7 x 3.8mm | Pack of 200 |
| WR66PHM08 | M8 | 16.2 x 4.2mm | Pack of 100 |
| WR66PHM10 | M10 | 20 x 5mm | Pack of 100 |
| WR66PHM12 | M12 | 24 x 5.2mm | Pack of 100 |
| WR66PHM16 | M16 | 30 x 5.7mm | Pack of 50 |
| WR66PHM20 | M20 | 36 x 6.8mm | Pack of 50 |
Selecting the right option
Choose the washer by the screw size it is made for, then check the listed dimensions in the table.
Related products
Related washers: Hobson Imperial Flat Round Washer, HEC Natural Nylon, #8 to 1", Hobson Flat Adhesive Washer, Natural Nylon, M3 x 7mm, Box of 200 and Hobson Metric Anti-Loss Washer, Natural Nylon, Flat Round Taper, M3 to M8.
