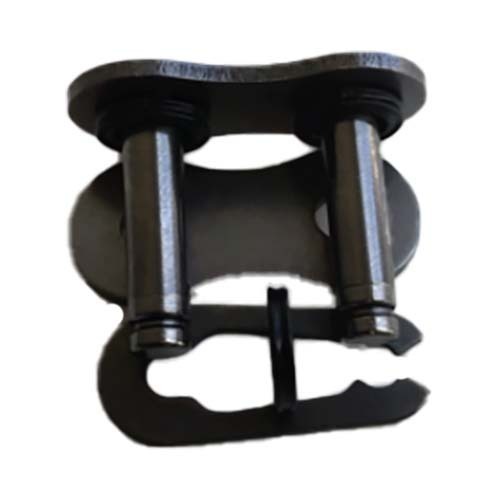

KCM X-Ring BS Roller Chain Connecting Link Simplex 08B-16B

KCM connecting links join the ends of a length of BS X-ring simplex roller chain into a continuous loop. Match the link to the KCM chain with the same chain number, strand count and series. X-ring chain in BS (ISO 606-B) pitches, sizes 08B to 16B.

Where this product is used

• Drives where dirt or moisture would wear open chain quickly
• Drives where relubrication is difficult

Features

• Matched to the KCM chain of the same number and series
• Joins the chain ends into a continuous loop
• X-ring chain in BS (ISO 606-B) pitches, sizes 08B to 16B
• X-ring seals sit between the link plates to hold lubricant in the pin and bush joint and keep dirt out

Key specifications

Choosing the right option

For BS chain the number is the pitch in sixteenths of an inch: 08B is 8/16" (1/2"), 12B is 12/16" (3/4"), 16B is 1". The figure after the dash is the number of strands.
