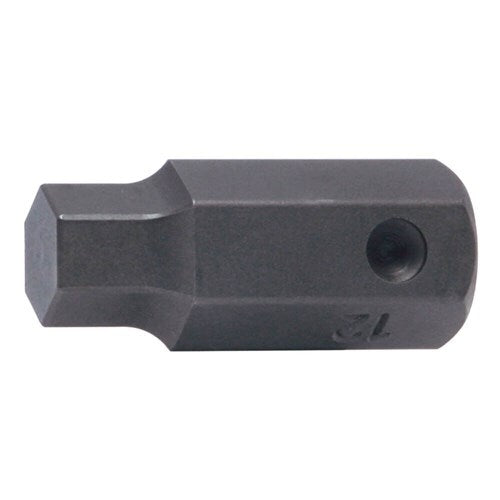

Ko-Ken 107-16 impact inhex bit, 12mm, 40mm long
Available
Ko-Ken 107-16 is an impact inhex bit with a 16mm input hex end. Hex sizes run from 10 to 22mm. Overall lengths are 40 and 100mm.
Where this product is used
- Driving inhex (hex socket) screws with an impact bit holder that takes a 16mm input hex
- Machinery and equipment maintenance where hex socket fasteners are used
- Workshop and maintenance work
Features
- 16mm input hex end
- Impact bit for hex socket screws
- Hex size: 10 to 22mm
- Length: 40mm, 100mm
Key specifications
| Specification | Detail |
|---|---|
| Brand | Ko-Ken |
| Product type | Impact Bit |
| Hex input | 16mm |
| Hex size | 10 to 22mm |
| Length | 40mm, 100mm |
| Weight | 46 to 97 g |
Choosing the right option
Choose the hex size to match the screw, and use the bit in an impact bit holder that takes a 16mm input hex. Select impact sockets only for electric or air impact wrenches, wear safety goggles when using nut runners or impact wrenches, never substitute a hand socket for an impact socket, and replace sockets with cracked walls, battered points or other marks of wear.
Related Ko-Ken products: Ko-Ken 107-16 Impact Inhex Bit, 3/8 to 3/4", 40mm Long, 16mm Hex Input, Ko-Ken 121H Hex Bit, 2 to 6mm, 70 and 100mm Long, 1/4" Hex Shank, Ko-Ken 183H-35 Impact Hex Bit, Metric Sizes, 7/16" Hex Input, Ko-Ken 14106 and 18106 Impact Bit Holder, 43 and 68mm Long, 1/2 and 1" Drive.
| Option | Part number | SKU |
|---|---|---|
| 10 / 40 | KO10716M10 | A0177489 |
| 12 / 40 | KO10716M12 | A0177490 |
| 12 / 100 | KO10716M12(L100) | A0181811 |
| 13 / 40 | KO10716M13 | A0181816 |
| 13 / 100 | KO10716M10(L100) | A0181810 |
| 14 / 40 | KO10716M14 | A0181817 |
| 14 / 100 | KO10716M14(L100) | A0181812 |
| 16 / 40 | KO10716M16 | A0181818 |
| 17 / 40 | KO10716M17 | A0177491 |
| 17 / 100 | KO10716M17(L100) | A0181813 |
| 18 / 40 | KO10716M18 | A0181819 |
| 19 / 40 | KO10716M19 | A0181820 |
| 19 / 100 | KO10716M19(L100) | A0181814 |
| 22 / 40 | KO10716M22 | A0181821 |
| 22 / 100 | KO10716M22(L100) | A0181815 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Ko-Ken 107-16 Impact Inhex Bit, 10 to 22 mm, 40 and 100 mm Long, 16 mm Hex Input: 12 / 40
SKU: A0177490 | Model: KO10716M12

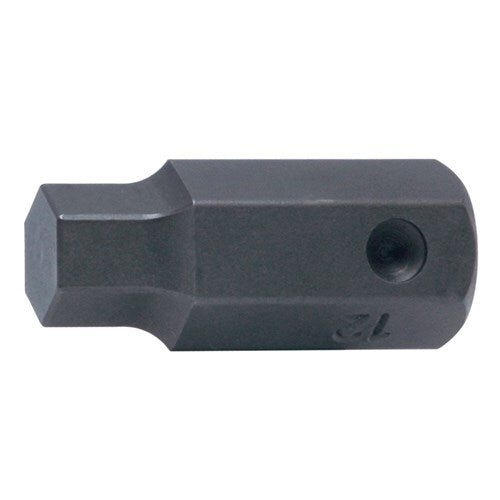

Ko-Ken KO10716M12: impact inhex bit, 12mm. 16mm hex input, 40mm long, 52 g.
