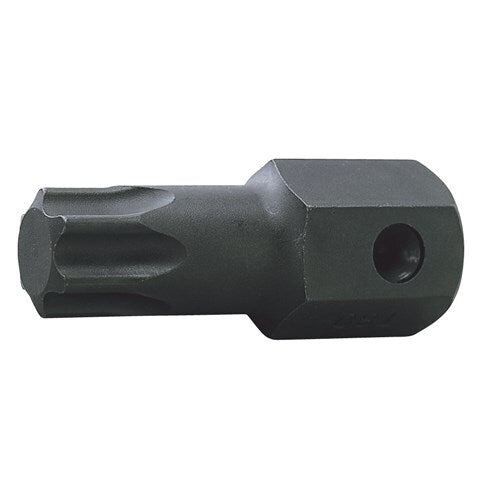

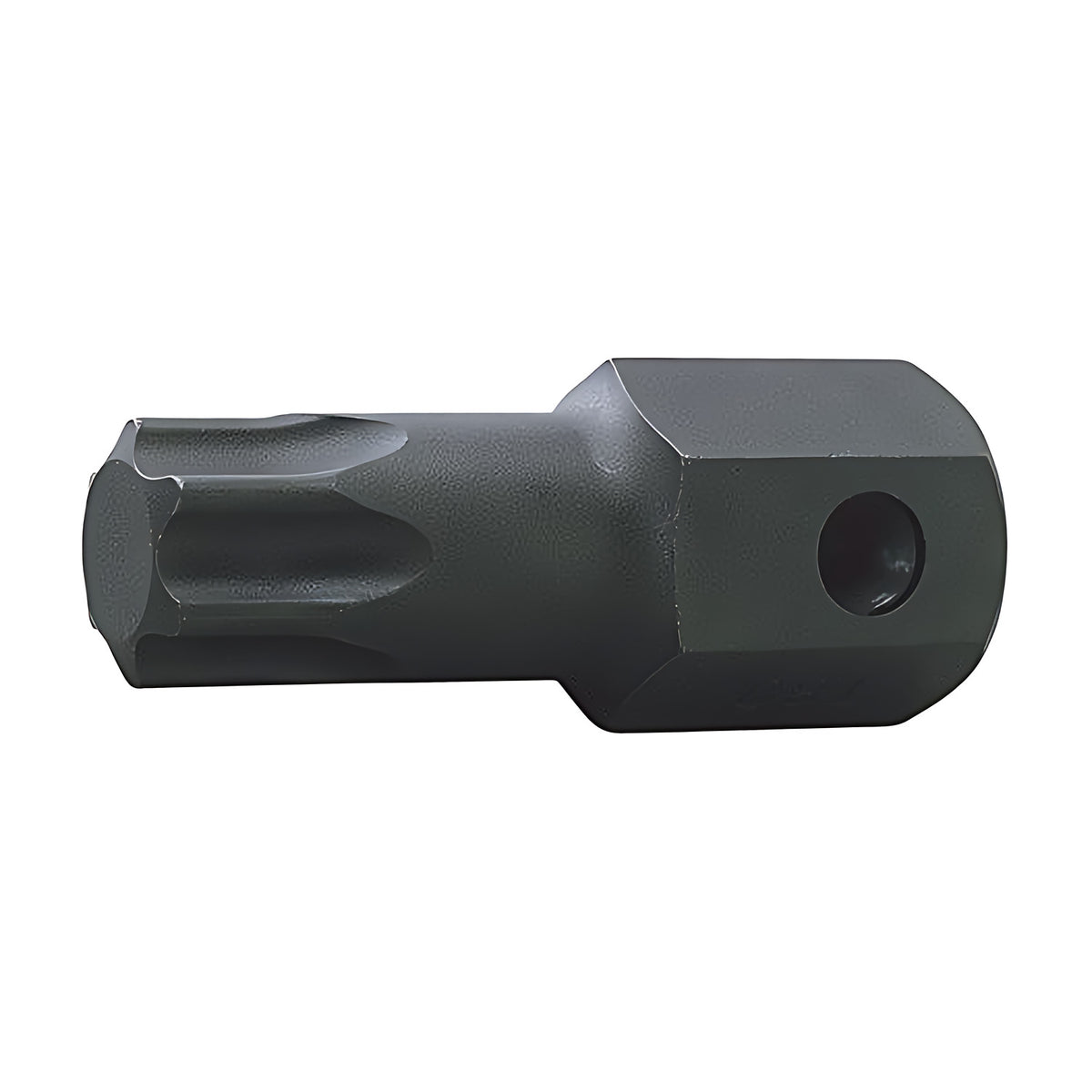

Ko-Ken KO10722T80 Impact Torx Bit, T80, 22 mm Hex Input

The Ko-Ken 107-22 (T) is an impact Torx bit with a 22 mm input hex end. (manufacturer-stated)

Torx sizes are T80, T90 and T100.

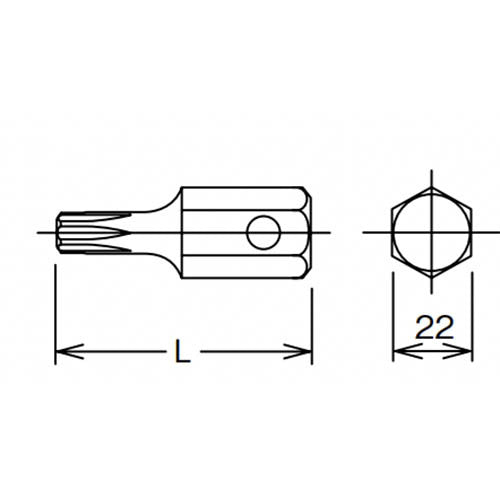

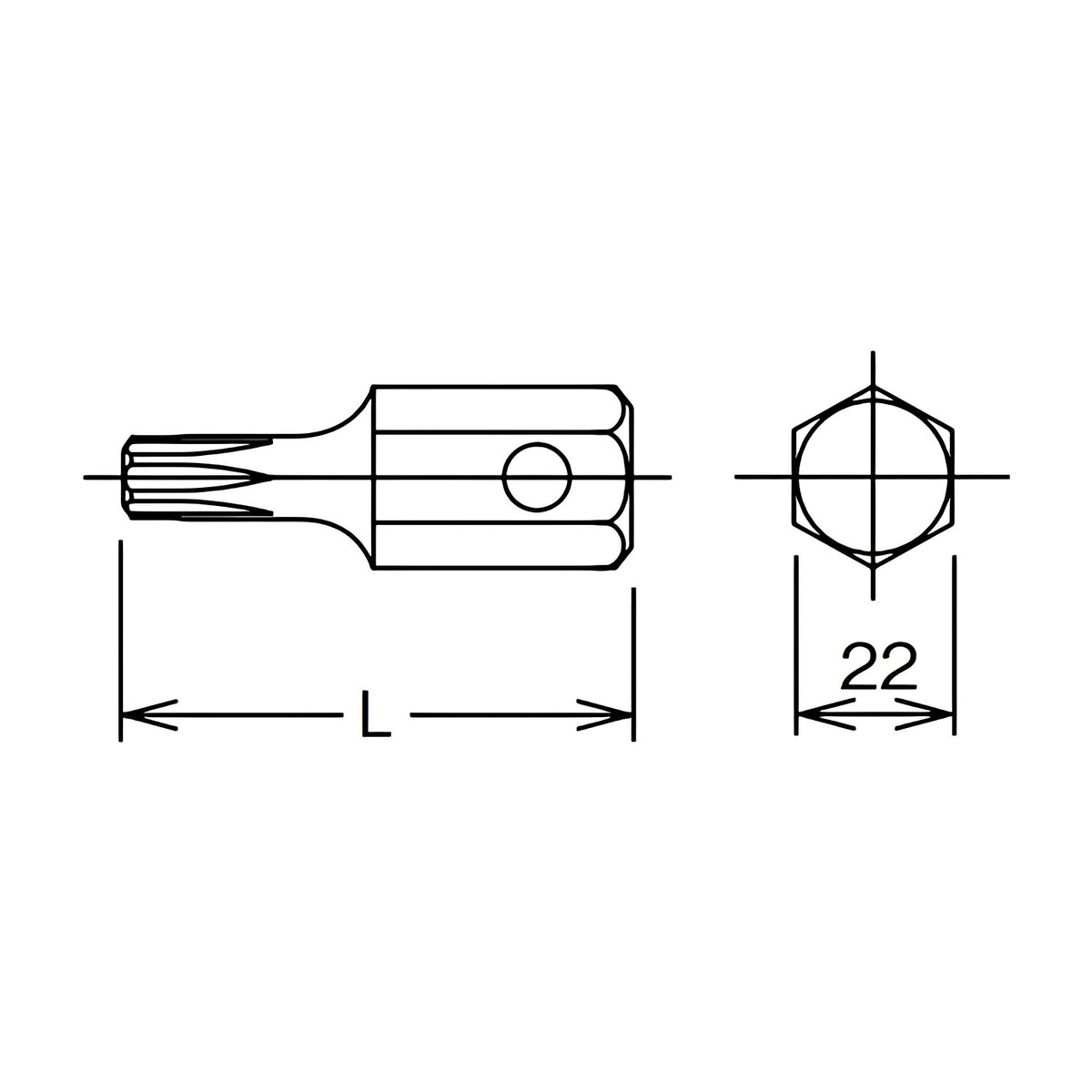

Overall length is 60 mm. (manufacturer-stated)

Each model is listed in the table below with its specifications.

Where this product is used

• Driving Torx screws with an impact bit holder that takes a 22 mm input hex
• Automotive and machinery fasteners that take a Torx bit
• Workshop and maintenance work

Features

• 22 mm input hex end (manufacturer-stated)
• Impact bit for Torx screws
• Listed in the Impact Sockets section of the catalogue (manufacturer-stated)

Common specifications

Key specifications

Weights are manufacturer-stated (Ko-ken catalogue 2025-26).

Selecting the right option

Choose the Torx size to match the screw, and use the bit in an impact bit holder that takes a 22 mm input hex. A catalogue footnote says the items it marks have a larger output size than the 22 mm input hex drive, so their maximum output torque rating is less than standards. Check the marked sizes in the Ko-ken catalogue before using at high torque. (manufacturer-stated) The catalogue's safety notes say to select impact sockets only for electric or air impact wrenches, to wear safety goggles when using nut runners or impact wrenches, never to substitute a hand socket for an impact socket, and to replace sockets with cracked walls, battered points or other marks of wear. (manufacturer-stated)
