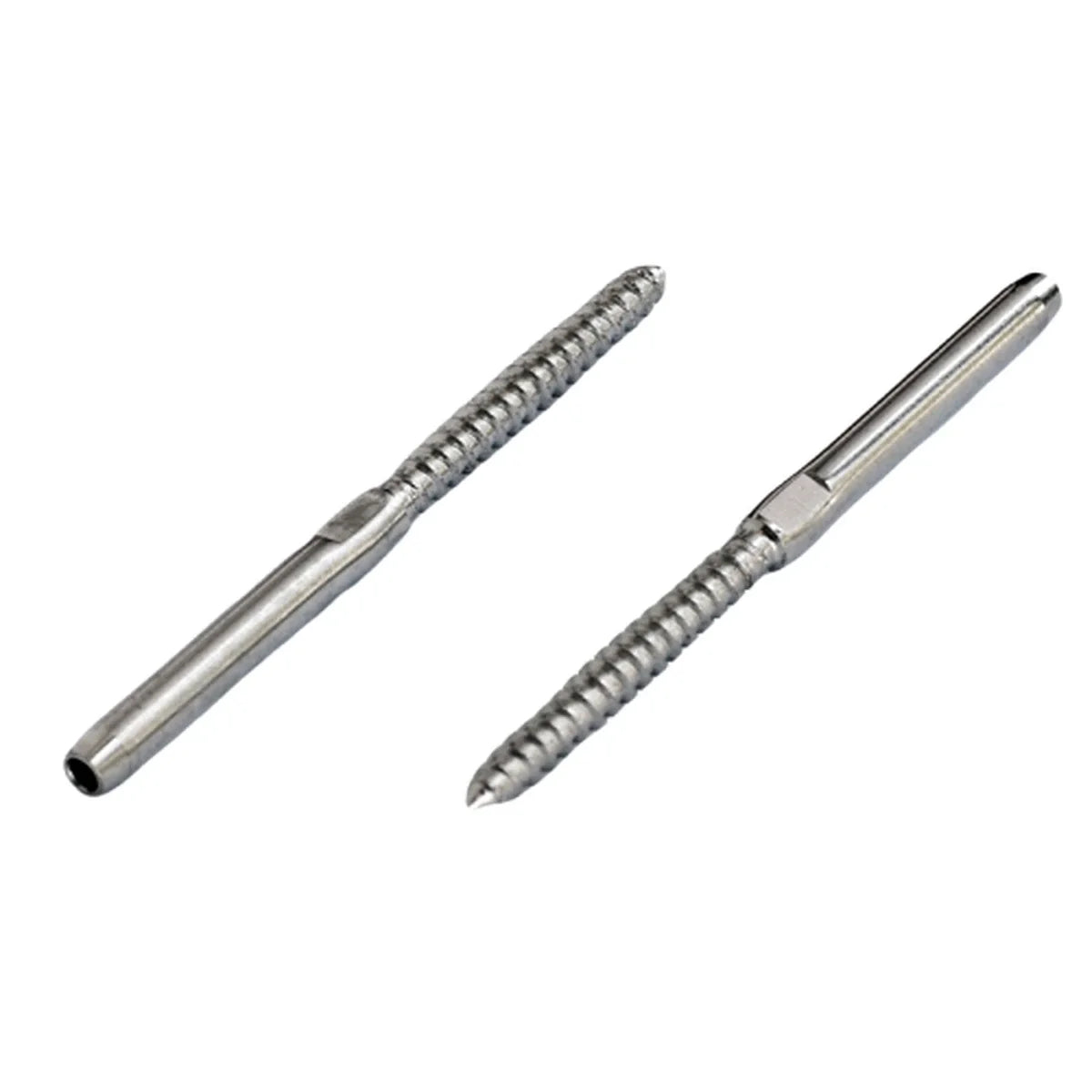

M5 x 3.2mm RH Lag Swage Terminal, 316 Stainless Steel - LSTA4M5X32
Available
The Lag/Swage Terminal Stainless Steel is a stainless terminal that is swaged onto wire rope and ends in a threaded (lag-style) end, available in right hand or left hand thread.
This listing has 2 variants. Every size comes in packs of 10.
The A4 (316) grade is stainless steel with added molybdenum, which helps it hold up where salt, pool chemicals or washdown chemicals are present. It is the more corrosion-resistant of the two common stainless grades, at a higher cost than 304.
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Coastal and architectural fittings
- Balustrade and wire fencing
- Boat, jetty and waterfront structures
- Food and beverage processing equipment
- Shade sails, awnings and tensioned structures
Features
- A4 (316) stainless steel with molybdenum, for coastal and chloride-exposed settings
- Threaded end, right hand or left hand
- Pack quantities to suit trade and bulk buying: packs of 10
- Swaged onto wire rope
Key specifications
| Specification | Detail |
|---|---|
| Product | Lag/Swage Terminal |
| Type | Stainless terminal that is swaged onto wire rope and ends in a threaded (lag-style) end |
| Material | A4 (316) stainless steel |
| Pack quantity | 10 |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Key features | Swaged onto wire rope; Threaded end, right hand or left hand |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Suited to | Coastal, marine, pool and food-processing use |
| Number of variants | 2 |
Selecting the right option
Check the thread hand shown in the product name. Right hand and left hand terminals are used as a pair with a turnbuckle or rigging screw. The supplier data does not describe the thread form, so check a sample before use.
Important
This product is not stated as lifting rated in the supplier data. Do not use it to lift or suspend people or loads unless it is marked with a working load limit (WLL). Rigging and lifting hardware should be selected, inspected and used in line with your site procedures and the relevant Australian Standards, and a qualified rigger should be consulted for any lift.
Related products
Other versions in this range: Left Hand Thread Lag Swage Terminal - 316 Stainless Steel and Right Hand Thread Lag Swage Terminal - 316 Stainless Steel.
