Loc-Line 1/2" Acid Resistant Hose Assembly Kit
Out of stock

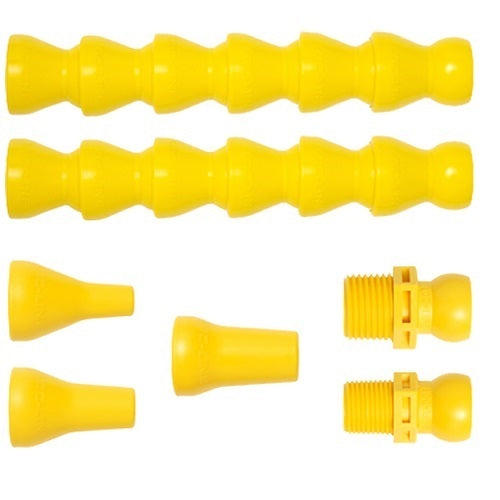

Loc-Line 56863 is the 1/2" acid resistant hose kit: two 5-1/2" long hose segments, three round nozzles (1/4", 3/8" and 1/2") and two NPT connectors (3/8" and 1/2"). no assembled length for this kit.
Kit in the 1/2" acid resistant section. Acid environments will not corrode Loc-Line Acid Resistant Hose because of its polyester composition, and polyester products have a maximum operating temperature of 170 °F and a melting point of 475 °F.
Where this product is used
- Rinsing cycles in plating operations
- This hose is not intended for conveying acids or high pressure applications
Features
- Kit pack list: 2 x 5-1/2" long hose segments, 1 x 1/4" round nozzle, 1 x 3/8" round nozzle, 1 x 1/2" round nozzle, 1 x 3/8" NPT connector, 1 x 1/2" NPT connector
- Part of the 1/2" acid resistant section next to the 1/2" acid resistant hose and fittings
- Polyester temperature data: maximum operating temperature 170 °F, melting point 475 °F
- Compatibility for polyester products: acids below 150 °F yes, above 150 °F no, strong bases no
Key specifications
| Specification | Detail |
|---|---|
| Brand | Loc-Line |
| Kit part number | 56863 |
| System | 1/2" Loc-Line acid resistant modular hose |
| Pack contents | 2 x 5-1/2" long hose segments, 1 x 1/4" round nozzle, 1 x 3/8" round nozzle, 1 x 1/2" round nozzle, 1 x 3/8" NPT connector, 1 x 1/2" NPT connector |
| Material | Polyester |
| Maximum operating temperature | 170 °F |
| Melting point | 475 °F |
| Chemical compatibility (polyester column) | Acids below 150 °F: yes, acids above 150 °F: no, strong bases: no |
| Caution | Acid Resistant Hose is not intended for conveying acids or high pressure applications |
Supplied with
- 2 x 5-1/2" long hose segments
- 1 x 1/4" round nozzle
- 1 x 3/8" round nozzle
- 1 x 1/2" round nozzle
- 1 x 3/8" NPT connector
- 1 x 1/2" NPT connector
Choosing the right option
Choose this kit for the 1/2" acid resistant system when you want the segments, three round nozzle sizes and the two NPT connectors in one part number. The 1/4" acid resistant kit is 45463: parts from one system do not fit hose from another. For longer runs add acid resistant hose from the 50 ft coil (57861) or the bulk segments (57860).
Other 1/2" acid resistant parts: acid resistant 1/2" hose, 50 ft coil (57861), acid resistant 1/2" hose segments, bulk 25 ft (57860), acid resistant 1/2" hose segments, pack of 2 (56801).
Individual nozzles and connectors from the kit: acid resistant 1/4" round nozzles for 1/2" hose (56806), acid resistant 3/8" round nozzles (56802, 57862), acid resistant 1/2" round nozzles, pack of 4 (56803).
Standard (acetal) equivalent: standard 1/2" hose kit (50813).
