Loc-Line 50813 1/2" Modular Hose Assembly Kit, 2 Segments, 3 Nozzles, 2 Connectors

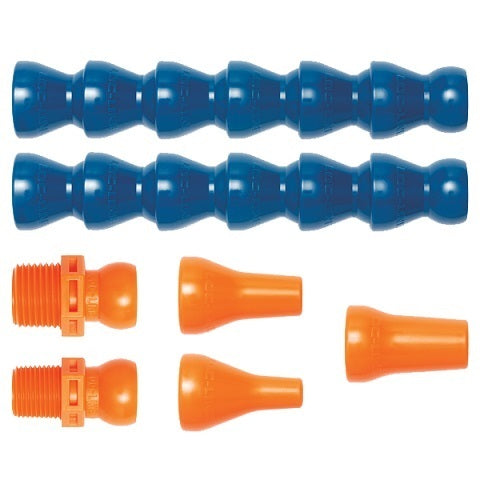

Loc-Line 50813 is the 1/2" hose kit: two 5-1/2" long hose segments, three round nozzles (1/4", 3/8" and 1/2") and two NPT connectors (3/8" and 1/2"). The catalogue gives the assembled length as 13" (manufacturer-stated).

The hose is a ball and socket assembly with enough friction between the parts for it to stay in position once set (manufacturer-stated). The catalogue gives the 1/2" system a standard line pressure of 30 PSI with a flow rate of 478 gal/hr, and up to 75 PSI with element clamps on all joints, fully tightened (manufacturer-stated). It adds that every application has variables that affect the maximum hose pressure and recommends testing whenever possible (manufacturer-stated). The catalogue lists standard acetal parts, which include the blue, black, grey and white colours, with a maximum operating temperature of 170 °F and a melting point of 329 °F (manufacturer-stated).

Where this product is used

• Machine tool coolant supply: the catalogue says Loc-Line was made to apply liquid coolant at the point of contact between the cutting tool and the target metal (manufacturer-stated).
• Other uses the catalogue names: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning (manufacturer-stated).

Features

• Ball and socket hose that stays in position once set (manufacturer-stated)
• Assembled length 13" (manufacturer-stated)
• Standard line pressure 30 PSI at 478 gal/hr for the 1/2" system; up to 75 PSI with element clamps on all joints, fully tightened (manufacturer-stated)
• Acetal: maximum operating temperature 170 °F, melting point 329 °F (manufacturer-stated)

Kit contents

Key specifications

Selecting the right option

Choose this kit for the 1/2" system when you want the segments, three round nozzle sizes and the two NPT connectors in one part number. The 1/4" system kit is 40413 and the 3/4" system kit is 60513: parts from one system do not fit hose from another. Segments are 5-1/2" long in this kit against 5-3/4" in the 1/4" and 3/4" kits.
