Loc-Line 1/4" Flared Tubing Replacement Kit for Modular Hose

The hose is a ball and socket assembly with enough friction between the parts for it to stay in position once set. The 1/4" system has a standard line pressure of 55 PSI with a flow rate of 250 gal/hr, and up to 110 PSI with element clamps on all joints, fully tightened. every application has variables that affect the maximum hose pressure; testing is recommended whenever possible. Standard acetal parts, which include the blue, black, grey and white colours, with a maximum operating temperature of 170 °F and a melting point of 329 °F.

Where this product is used

• Machine tool coolant supply, applying liquid coolant at the point of contact between the cutting tool and the target metal
• Other uses: the electronic, scientific, graphic arts and woodworking industries, and any job needing adjustable directional flow of fluid, air or vacuum, or third arm positioning

Features

• Ball and socket hose that stays in position once set

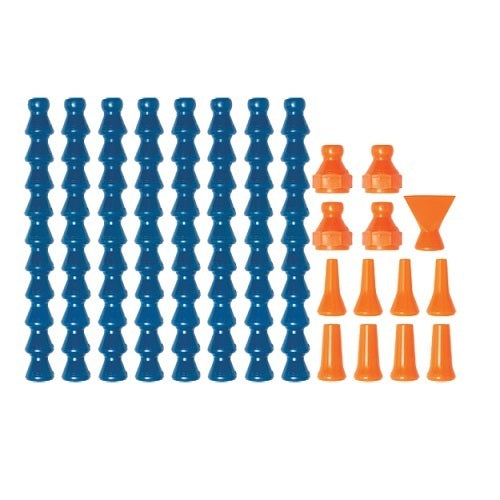

• Pack list: 8 hose segments, 1 flare nozzle, 4 flare nut adapters, 8 round nozzles
• Standard line pressure 55 PSI at 250 gal/hr for the 1/4" system, up to 110 PSI with element clamps on all joints, fully tightened
• Acetal: maximum operating temperature 170 °F, melting point 329 °F

Key specifications

Supplied with

• 8 x 5-3/4" long hose segments
• 1 x 1" flare nozzle
• 4 x 3/8" flare nut adapters
• 4 x 1/8" round nozzles
• 4 x 1/4" round nozzles

Choosing the right option

This pack carries 8 hose segments, against 2 in the 1/4" hose kit (40413). Parts from one system do not fit hose from another.

Related 1/4" system parts: 1/4" hose kit (40413), 1/4" mixed element kit (40473), 1/4" hose, 50 ft coil (49421).

Individual parts from the pack: 1" flare nozzles, 3/8" flare nut adapters, 1/8" round nozzles.
